- Intel Core i3 6100TE CPU
- 2 x SO-DIMM, up to 32GB

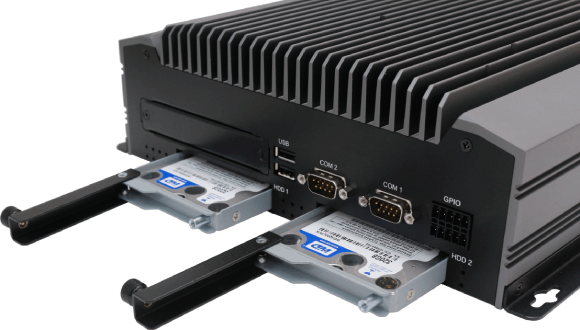

- Easy accessible storage design
- Support 4K UHD display
- Multi-Expansion slot
- Three independent display ports
- Wide range DC 9~36V power input
Industrial, Industrial PC, Industrial PCs
ACS-23302332_V1.6-min.pdf
ACS-2330

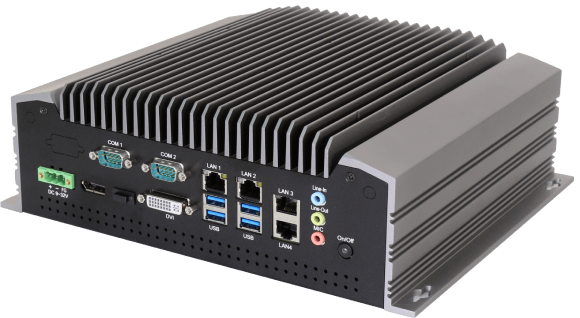

The ACS-2330 Industrial PC is a fanless system powered by the 6th gen Intel i3-6100TE CPU. Perfect for installations where slightly higher performance is required & option to DIN rail mount
Quick Spec
| Processor | Intel Core i3 6100TE |
|---|---|
| RAM | 4GB – 32GB |
| OS Support | Windows 10 Pro/IoT, Linux, Ubuntu |
| Mounting Type | Flange (wall)/DIN Rail |
Datasheet
ACS-23302332_V1.6-min.pdf
Specification
| Processor | Intel Core i3 6100TE CPU onboard |
| Memory | 2 x 260-pin SO-DIMM slot up to 32GB DDR4 1866/2133 MHz |
I/O
| USB | 4 x USB 3.0 type A, 2 x USB 2.0 type A |
| Serial/Parallel |
|
| Audio | 1 x Line-in, 1 x Line-out, 1 x Mic |
| LAN | 4 x GbE LAN RJ-45 |
| Display Interface | 1 x Display port, 1 x DVI-I, 1 x HDMI |
| GPIO | 1 x GPIO 8-bit digital I/O(4 x DI, 4 x DO) |
| Power | 1 x 3-pin DC power input terminal, 1 x power button with light |
Storage
| Storage | 2 x 2.5” SATA3 HDD bay (easy accessible), support RAID 0.1 |
Expansion
| On Board Expansion Bus | 3 x Mini PCIe slot full size (one shared with mSATA) |
Power
| Power Input | DC 9~36V |
Mechanical
| Construction | Plating Titanium Gray Aluminum Heatsink and Black Steel Chassis |
| IP Rating | IP20 |
| Mounting | Wall Mount / Din Rail (option) |

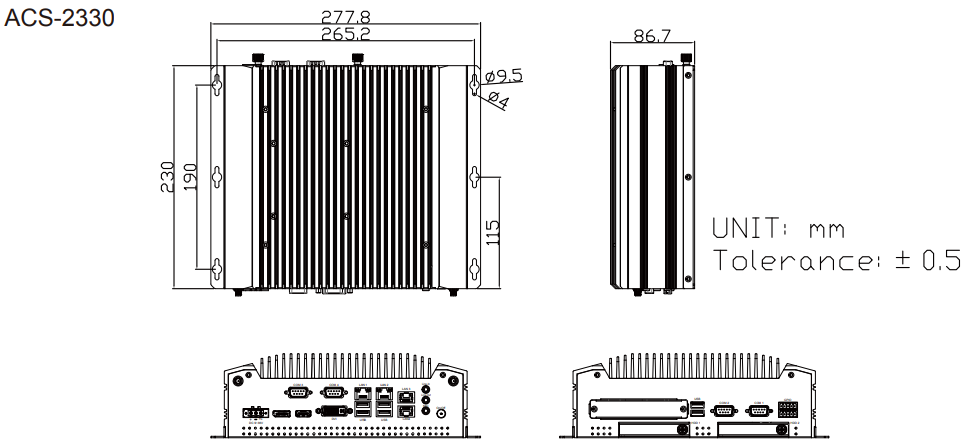

| Dimension | 277.8 x 230 x 86.7 mm |
| Net Weight | 4.5kg |
Environmental
| Operating Temperature | 0~50°C/ -20~60°C(option) |
| Certificate | CE/FCC Class A |
| Operating System Support | Windows 10 Pro/IoT, Linux, Ubuntu |
