- 11th Gen. Intel Core i3 1115G4E Processor

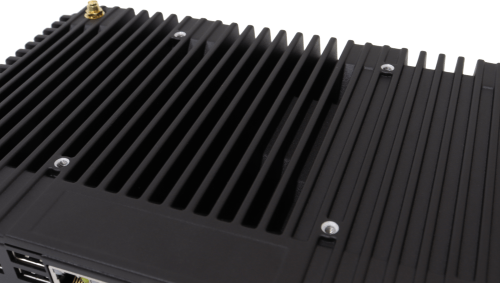

- Fanless Design
- 2 x 260-pin DDR4 SO-DIMM up to 64GB 3200MHz
- Dual expansion slot with M.2 E key for WiFi/BT function, mPCIe for other IO expansion
- DP/HDMI I/O port for Video Display
- Wide Range DC 9~36V Input
- 1 x M.2 2280 M key SSD support PCIe x4/ SATA3.0 Support NVME SSD
Industrial, Industrial PC, Industrial PCs

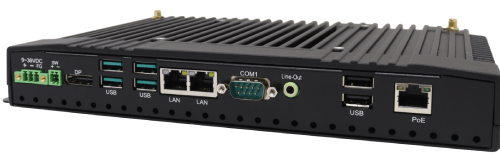

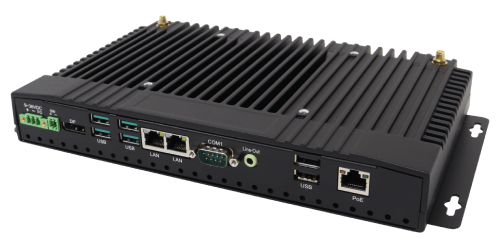

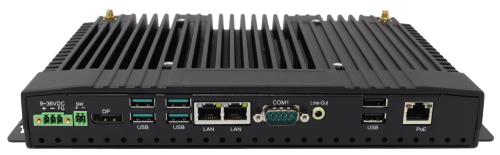

ACS-500
Slim, high powered Industrial PC powered by the 11th gen Intel core i3-1115G4E Perfect for installations where space is limited.
Quick Spec
| Processor | Intel Core i3 1115G4E |
|---|---|
| RAM | 4GB – 32GB |
| OS Support | Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu |
| Mounting Type | Flange (wall) |
Specification
| Processor | 11th Gen. Intel Core i3 1115G4E (4C, 1.5GHz, up to 4.1GHz, TDP-up 28W) CPU onboard |
| Memory | 2 x 260-pin SO-DIMM up to 64GB DDR4 3200MHz |
| TPM | TPM 2.0 |

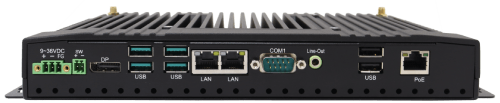

I/O
| USB | 4 x USB 3.0 Type A |
| Serial/Parallel | 1 x DB-9 connector, including:
|
| Audio | 1 x Line-out |
| LAN | 1 x 1GbE, 1 x 2.5GbE LAN RJ-45 |
| Display Interface | 1 x DP/HDMI |
| Power |
|
Storage
| Storage | 1 x M.2 M-Key 2280 (Support PCIe/SATA3) |
Expansion
| On Board Expansion |
|
Power

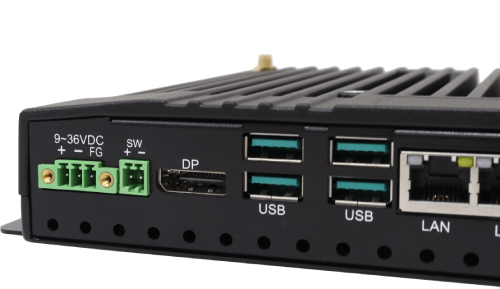

| Power Input | DC 9~36V |
Mechanical
| Construction | Aluminum Chassis |
| Mounting | Panel Mount, VESA 100×100 |

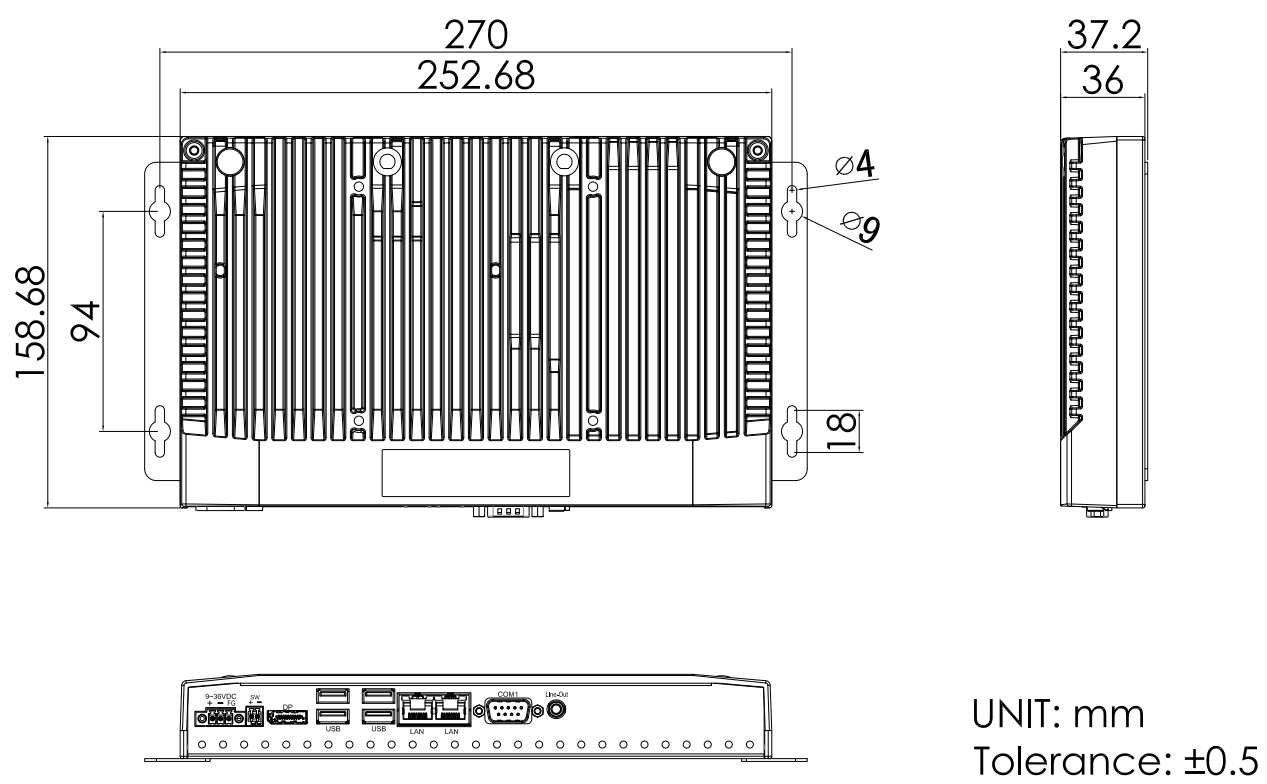

| Dimension | 252.7 x 158.7 x 36 mm (without wall mount bracket) |
| Net Weight | TBD |
Environmental
| Operating Temperature | -20~60°C |
| Certificate | CE/FCC Class A |
| Operating System Support | Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu |
