- 19” Industrial Compact Size Panel PC
- Stainless-Steel Bezel
- Fully Enclosed Touch Screen with Fanless Design
- DC 9~36V Wide-Ranging Power Input
- Intel Celeron N2930 CPU built-in
- Up to 8GB RAM
- Fully IP66 ATEX Compliant Panel
Fully IP rated Panel PCs, Industrial, Panel PCs
AEx-819PH_V1.5.pdf
AEX-819P(H)

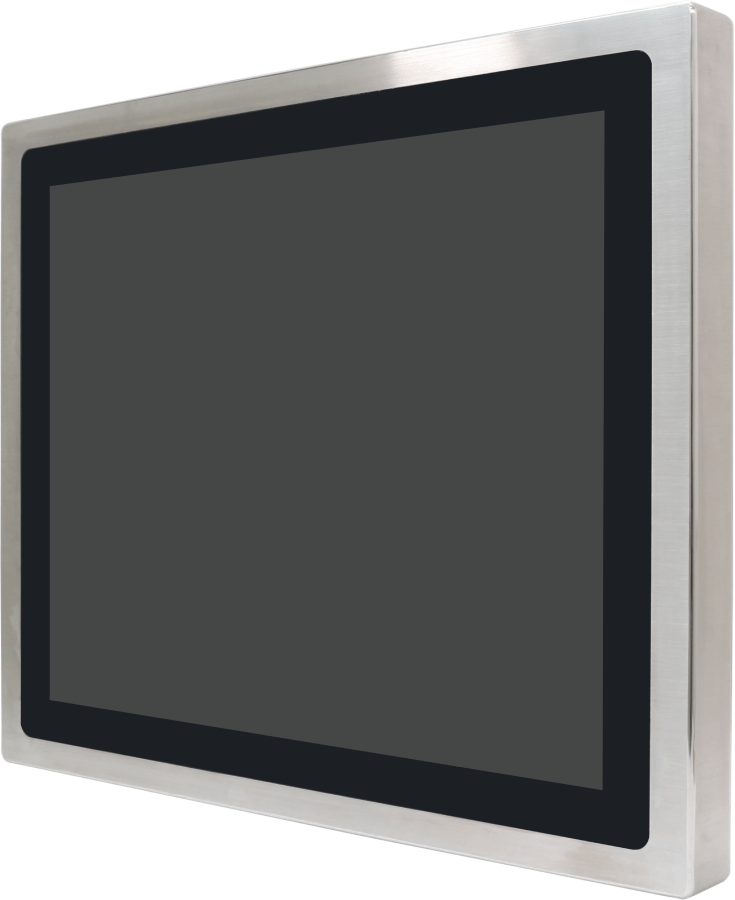

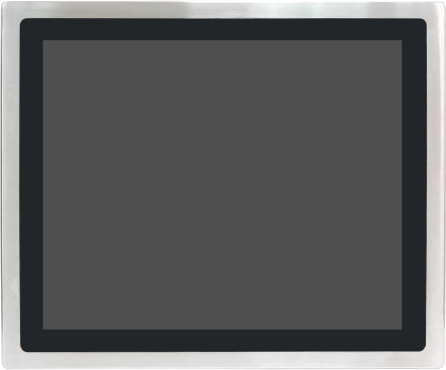

19″ ATEX compliant industrial touchscreen Panel PC utilizing the Intel Celeron N2930, for use in harsh Zone 2 environments.
Quick Spec
| Display Size | 19" |
|---|---|
| Processor | Intel Celeron N2930 |
| RAM | 4GB – 8GB |
| IP Rating | Fully IP66 |
| Touchscreen | Projected Capacitive |
| OS Support | Windows 10 Pro/IoT, Linux, Ubuntu |
| Mounting Type | VESA/Panel |
Datasheet
AEx-819PH_V1.5.pdf
Specification
| CPU | Onboard Intel Celeron N2930 Processor |
| Memory | Onboard 4GB DDR3L SDRAM (8GB option) |
I/O

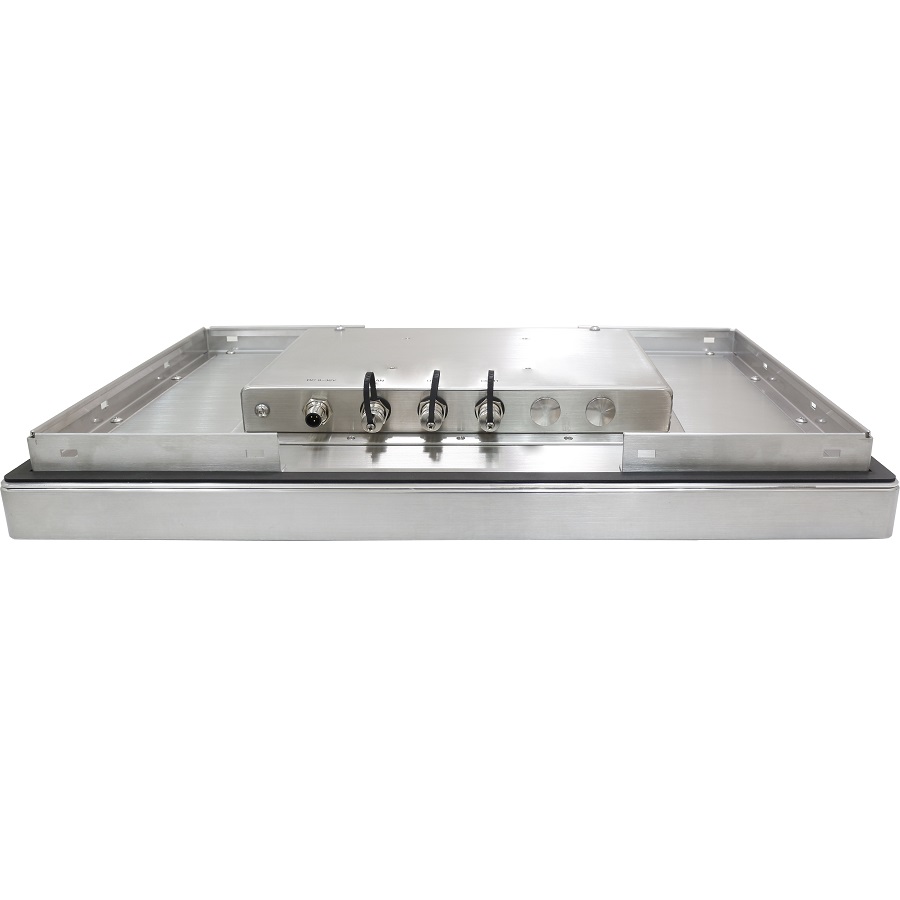

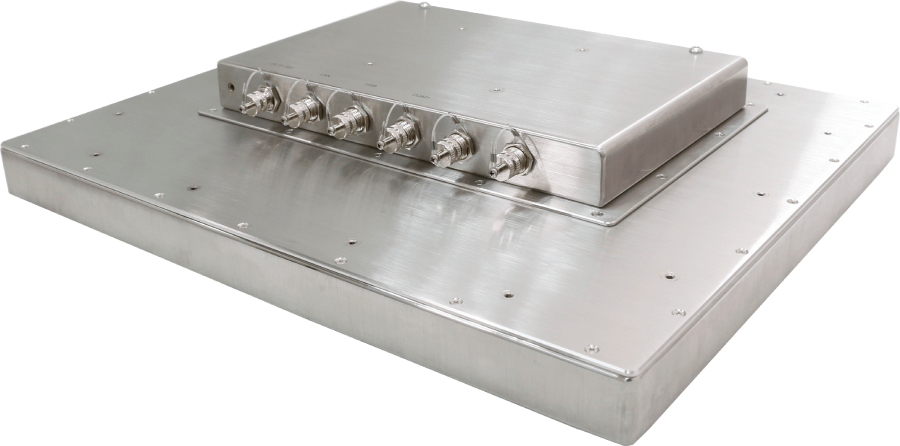

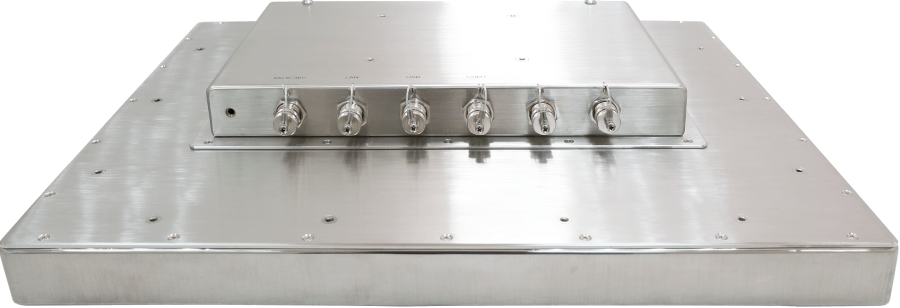

Power Connector1 x M12 3-pin for DC power with waterproof cover and chain
| USB | 1 x M12 8-pin for USB 2.0 with waterproof cover and chain |
| Serial/Parallel | 1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain |
| LAN | 2 x M12 8-pin for LAN with waterproof cover and chain |
| Graph | 1 x M12 8-pin for VGA with waterproof cover and chain |
Storage
| HDD |
|
Expansion
| Expansion Slot | 1 x miniPCIe (full size) |
Display
| Display Type | 19″” TFT-LCD |
| Max. Resolution | 1920 x 1080 |
Touch Screen
| Type | Projected Capacitive |
| Light Transmission (%) | 90% |
Power
| Power Input | DC 9~36V |

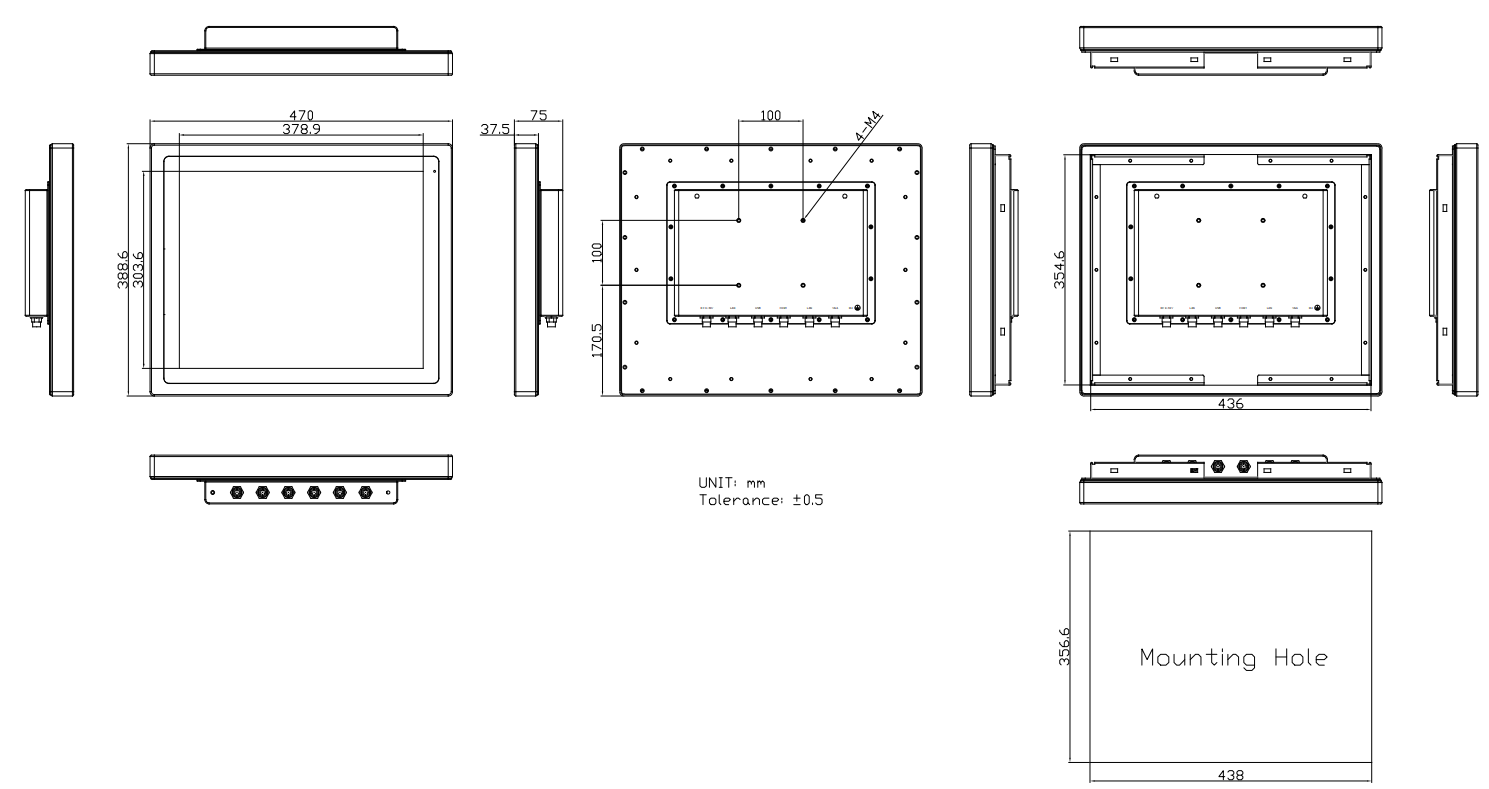

Mechanical
| Construction | 316 Stainless steel chassis |
| Mounting | VESA Mount 100 x 100, Panel mount option |
| IP Rating | Fully IP66 |
| Net Weight | 12.3kg |
Environmental
| Operating Temperature | -20~60°C |
| Safety | CSA C22.2 No.61010 |
| Certificate |
|
| Operating System Support | Windows 10 Pro/IoT, Linux, Ubuntu |
