- Support Intel Socket P Core 2 Duo / Core Duo / Celeron M CPU
- 12.1″ High Brightness (400 cd/m 2 ) TFT LCD with resolution of 800×600
- NEMA 4 / IP 65 compliant front bezel
- Sealed resistive touch screen (optional)
- 2 x DDR2 DIMM socket, up to 4GB
- 2 x PCI expansion slots
- Space for one 2.5″ HDD and one slim CD-ROM / DVD Combo
- Optional stainless steel front bezel
- Support Panel mount
- AC 100~240V power input, optional DC 16~36V with
- 19V adapter
Archive Panel Pcs
APC-3215BT-DS.pdf

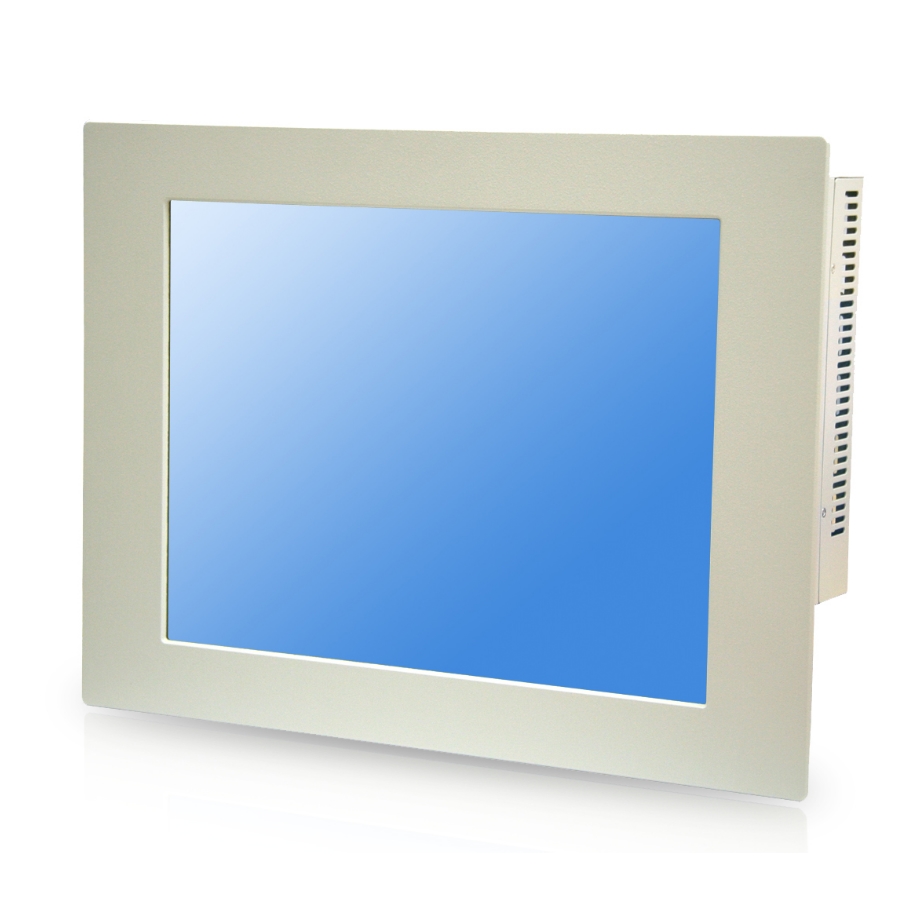

APC-3215BT
Archive product
> 5 year warranty as standard on all products
Quick Spec
| Display Size | 12.1" |
|---|---|
| Mounting Type | Panel, Rack |
| IP Rating | Front IP65 |
| Ambient Temperature | 0°c/50°c |
| Touchscreen | Resistive |
Datasheet
APC-3215BT-DS.pdf
Request a Quote
Discontinued
System
| CPU | Intel Socket P Core 2 Duo / Core Duo / Celeron M CPU |
| DRAM | 2 x 240-PIN Dual channel DDRII 533/667MHz up to 4GB |
| Storage | Space for 1x 2.5″ HDD and 1 x slim CD-ROM / DVD Combo |
| I/O Ports |
|
| Expansion | 2 x PCI slots |
| Fanless / Fan | Fan |
| Touch screen | Analog resistive (optional) |
| OS Support | Microsoft Windows XP Pro, XP Embedded |
Display Specifications
| LCD | 12.1″ SVGA |
| Resolution | 800×600 |
| Dimensions | 390(W)x265(H)x122(D)mm |
| Luminance (cd/m2) | 400 |
| Backlight Lifetime | 50,000 hrs |
Mechanical
| Construction | Heavy-duty steel chassis, Stainless steel front bezel (optional) |
| Power Supply | AC 100~240V, optional DC 16~36V with 19V adapter |
| Operating Temperature | 0~50 C |
| Storage Temperature | -20~60 C |
| Operating Temperature | -10~50˚C |
| Relative Humidity | 10~90% @40 C, Non-condensing |
| Vibration | 5~17Hz, 0.1″ double amplitude peak to peak, 17-640Hz, 1.5G acceleration peak to peak |
| Shock | 10G acceleration peak to peak (11ms) |
| Rating | NEMA 4/IP 65 compliant front bezel |
| Certificate | Meet CE / FCC Class A |
| Mounting | Panel mount |
| Weight (net) | 8.75kgs |
