- 12.1” wide Industrial Compact Size Industrial Display
- Flat Front Panel Touch Screen and Fanless Design
- DC 9~36V Wide-Ranging Power Input
- IP66 Compliant Front Panel
Front IP rated Industrial Displays, Industrial, Industrial Display
ARCDIS-112WA/P

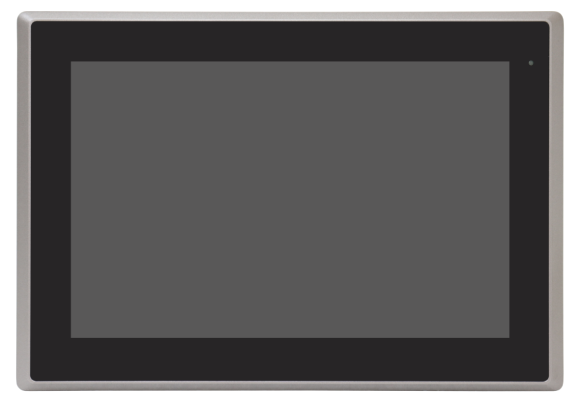

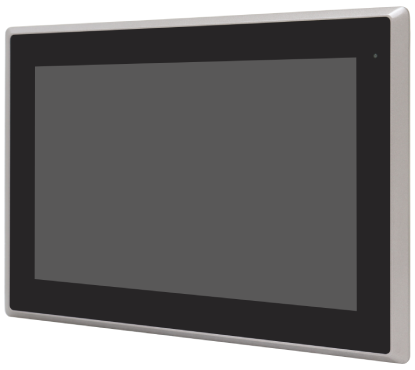

These 12.1″ wide aluminium, front IP66 industrial displays can be panel or VESA mounted for a sleek built-in feel. Perfect for industrial environments.
Quick Spec
| Display Size | 12.1" Widescreen |
|---|---|
| IP Rating | Front IP66 |
| Touchscreen | Projected Capacitive, Resistive, No Touch Hardened Glass |
| Mounting Type | Panel/VESA |

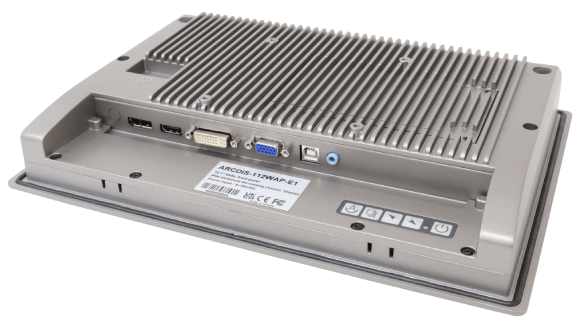

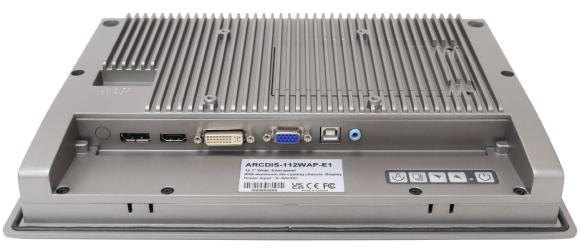

I/O Port
| VGA | 1 x VGA |
| DVI | 1 x DVI-D (share with HDMI) |
| DP | 1 x DP |
| HDMI | 1 x HDMI (share with DVI-D) |
| Audio | 1 x Audio line-in phone jack |
| OSD Control Membrane | OSD at rear side |
| Power | 1 x 3-pin terminal block for DC 9~36V power input |
| Others |
|
| Display | based on standard display, high brightness option see datasheet |
| Display Type | 12.1″” wide TFT-LCD |
| Max. Resolution | 1280 x 800 |
Touch Screen
| Type | Projected Capacitive/Resistive/Glass |
| Interface |
|
| Light Transmission (%) |
|
Power
| Power Input | DC 9~36V |
Mechanical
| Construction | Aluminium die-cast chassis |
| Mounting | Panel Mount, VESA Mount 100 x 100 |
| IP Rating | IP66 Compliant Front Bezel/IP69K option |
| Net Weight | 2.7kg |
Environmental
| Operating Temperature | 0~50°C |
| Certificate | CE/FCC Class A |
