- 32” Industrial Compact Size Industrial Display
- Flat Front Panel Touch Screen and Fanless Design
- DC 9~36V Wide-Ranging Power Input
- IP66 Compliant Front Panel
Front IP rated Industrial Displays, Industrial, Industrial Display
ARCDIS-132A/P

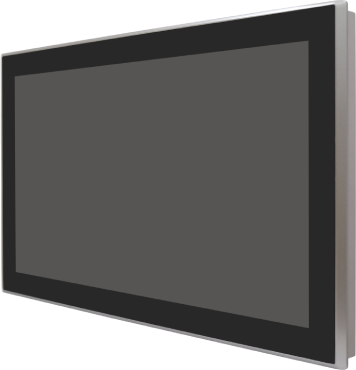

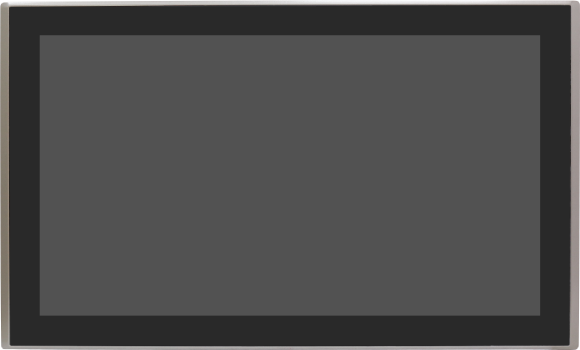

These 32″ aluminium, front IP66 industrial displays can be panel or VESA mounted for a sleek built-in feel. Perfect for industrial environments.
Quick Spec
| Display Size | 32" |
|---|---|
| IP Rating | Front IP66 |
| Touchscreen | Projected Capacitive, Resistive, No Touch Hardened Glass |
| Mounting Type | Panel/VESA |

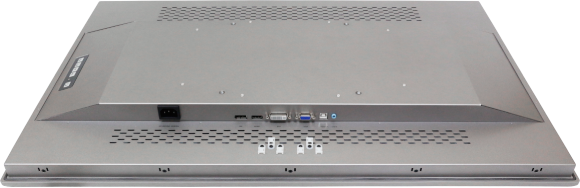

I/O Port
| VGA | 1 x VGA |
| DVI | 1 x DVI-D (share with HDMI) |
| DP | 1 x DP |
| HDMI | 1 x HDMI (share with DVI-D) |
| Audio | 1 x Audio line-in phone jack |
| OSD Control Membrane | OSD at rear side |
| Power | 1 x 3-pin terminal block for DC 9~36V power input |
| Others | 1 x USB type B for touch control |
Display
| Display Type | 32″” TFT-LCD |
| Max. Resolution | 1920 x 1080 |
Touch Screen
| Type | Projected Capacitive |
| Interface | >USB |
| Light Transmission (%) | over 90% |
Power
| Power Input | DC 9~36V |
Mechanical
| Construction | Aluminium die-cast chassis |
| Mounting | Panel Mount, VESA Mount 200 x 200 |
| IP Rating | IP66 Compliant Front Bezel |
| Net Weight | 16.4kg |
Environmental
| Operating Temperature | 0~50°C |
| Certificate | CE/FCC Class A |
