ARCHMI-815B/P

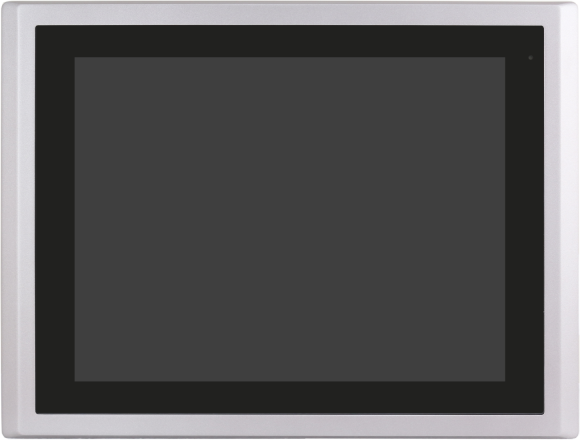

These 15″ lightweight aluminium, front IP66 panel PCs employ the Intel Celeron J6412 CPU, and can be panel or VESA mounted for a sleek built-in feel. Perfect for industrial environments.

Quick Spec

Display Size	15''
Processor	Intel Celeron J6412
RAM	4GB – 32GB
IP Rating	Front IP66
Touchscreen	Resistive/Projected Capacitive
OS Support	Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu
Mounting Type	Panel/VESA

Datasheet

ARCHMI-815BPRH_V1.1.pdf

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
[email protected]

15” Industrial Compact Size Panel PC
Flat Front Panel Touch Screen and Fanless Design
DC 9~36V Wide-Ranging Power Input
Intel Celeron J6412 CPU built-in
Up to 32GB RAM
IP66 Compliant Front Panel

System

CPU	Onboard Intel Celeron J6412 Processor
Memory	Memory – Up to 32GB
TPM	TPM 2.0

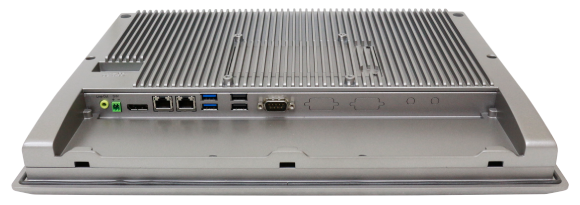

I/O Port

USB	2 x USB 3.0 type A
Serial/Parallel	1 x DB-9 RS-232/422/485, COM1 (default RS-232) 1 x RS-232 DB-9, COM2
Audio	1 x Audio Line Out
LAN	2 x GbE LAN RJ-45
Power Connector	1 x 3-pin for DC power input terminal 1 x 2-pin connector for power on/off button
Option	2 x RS-232 DB-9 + 1 x Mini-PCIe slot via TB-528C2ME1 2 x CAN bus via TB-528CAN2 2 x USB 2.0 type A Via TB-528U2 2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1 x RS-232 DB-9 + 1 x Power button via TB-528C1U2 UPS Battery 21W/10.8W/1.95Ah(3S1P)

Storage

HDD	1 x 2.5″ SATA3 HDD bay for SATA HDD (Easy Accessible)
Movable Device	1 x SD card slot, up to 32GB

Expansion

Onboard Expansion bus

1 x Internal Mini-PCIe slot full size
1 x Micro SD Card slot

Display – based on standard display, high brightness option see datasheet

Display Type	15″ Wide TFT-LCD
Max. Resolution	1024 x 768

Touch Screen

Type	Projected Capacitive / Resistive
Light Transmission (%)	Projected Capacitive Touch: 90% Resistive Touch: 80%

Power

Power Input

DC 9~36V

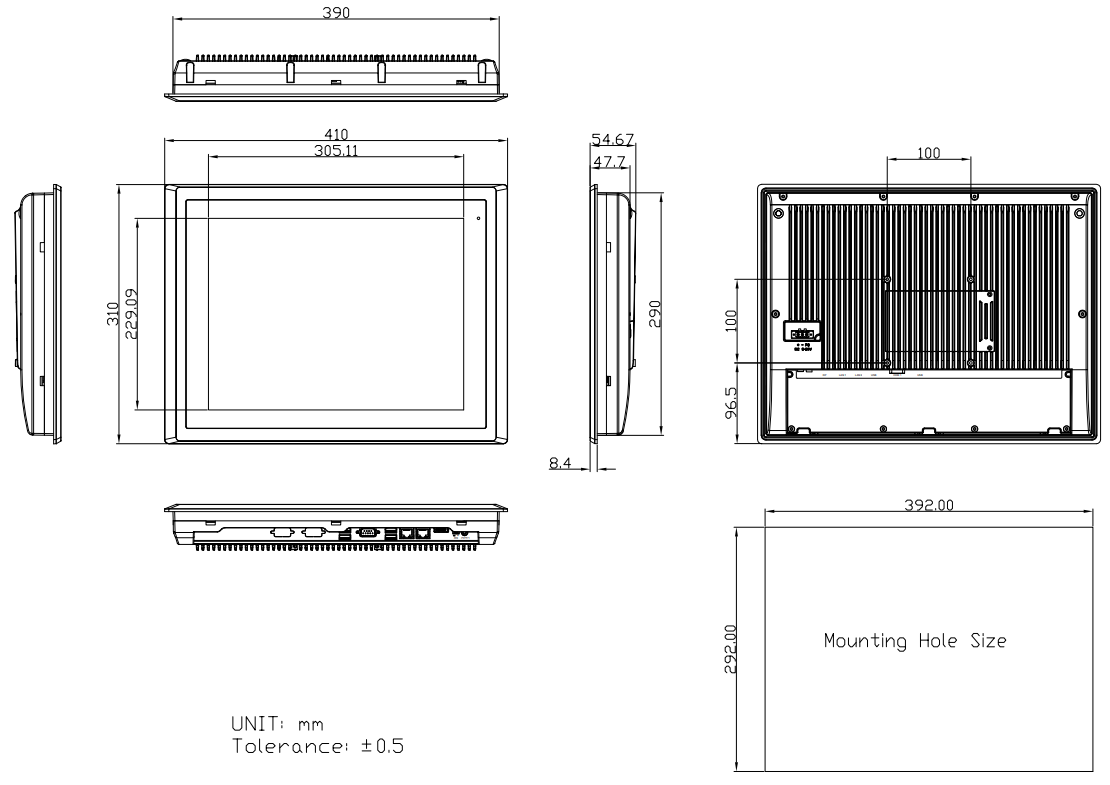

Mechanical

Construction	Aluminium die-cast chassis
Mounting	Panel Mount, VESA Mount 100 x 100
IP Rating	IP66 Compliant Front Bezel
Net Weight	4.4kg

Environmental

Operating Temperature	0~50°C/-20~60°C (option)
Certificate	CE/FCC Class A
Operating System Support	Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu
