ARCHMI-817A/P

These 17″ lightweight aluminium, front IP66 panel PCs employ the Intel Pentium N4200 CPU, and can be panel or VESA mounted for a sleek built-in feel. Perfect for industrial environments.

Quick Spec

Display Size

17"

Processor

Intel Pentium N4200

RAM

4GB – 8GB

IP Rating

Front IP66

Touchscreen

Resistive/Projected Capacitive

OS Support

Windows 10 Pro/IoT, Linux, Ubuntu

Mounting Type

Panel/VESA

Need Help? Contact Us


01462 374102

[email protected]
  • 17” Industrial Compact Size Panel PC
  • Flat Front Panel Touch Screen and Fanless Design
  • DC 9~36V Wide-Ranging Power Input
  • Intel Pentium N4200 CPU built-in
  • Up to 8GB RAM
  • IP66 Compliant Front Panel

ARCHMI-817A

System
CPU Onboard Intel Pentium N42OO Processor
Memory Onboard 4GB/8GB (option)
I/O Port
USB 2 x USB 3.0 type A
Serial/Parallel
  • 1 x DB-9 RS-232/422/485, COM1 (default RS-232)
  • 1 x RS-232 DB-9, COM2
Audio 1 x Audio Line Out
LAN 2 x GbE LAN RJ-45
Power Connector
  • 1 x 3-pin for DC power input terminal
  • 1 x 2-pin connector for power on/off button
Option
  • 2 x RS-232 DB-9 + 1 x Mini-PCIe slot via TB-528C2ME1
  • 2 x CAN bus via TB-528CAN2
  • 2 x USB 2.0 type A Via TB-528U2
  • 2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1 x RS-232 DB-9 + 1 x Power button via TB-528C1U2
  • UPS Battery 21W/10.8W/1.95Ah(3S1P)
Storage
HDD 1 x 2.5″ SATA3 HDD bay for SATA HDD (Easy Accessible)
Movable Device 1 x SD card slot, up to 32GB
Expansion
Expansion slot
  • 1 x Internal Mini-PCIe slot full size
Display – based on standard display, high brightness option see datasheet
Display Type 17″ TFT-LCD
Max. Resolution 1280 x 1024
Touch Screen
Type Projected Capacitive / Resistive
Light Transmission (%)
  • Projected Capacitive Touch: over 90%
  • Resistive Touch: over 80%
Power
Power Input DC 9~36V

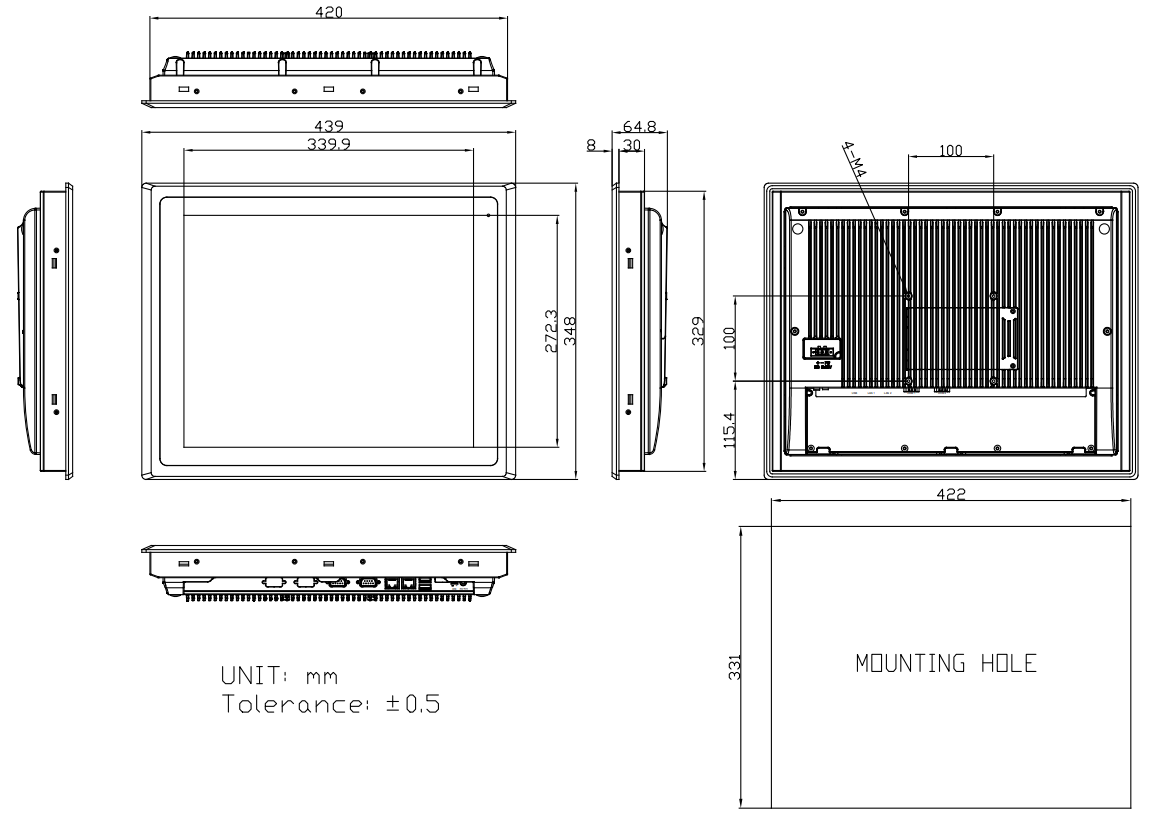

Mechanical
Construction Aluminium die-cast chassis
Mounting Panel Mount, VESA Mount 100 x 100
IP Rating IP66 Compliant Front Bezel
Net Weight 5.1kg
Environmental
Operating Temperature 0~50°C
Certificate CE/FCC Class A/CB/UL
Operating System Support Windows 10 Pro/IoT, Linux, Ubuntu

ARCHMI-817APRGH_V0.1.pdf

Mounting-a-Panel-PC.pdf
