- 18.5” Industrial Compact Size Panel PC
- Flat Front Panel Touch Screen and Fanless Design
- DC 9~36V Wide-Ranging Power Input
- Intel Pentium N4200 CPU built-in
- Up to 8GB RAM
- IP66 Compliant Front Panel
Front IP rated Panel PCs, Industrial, Panel PCs
ARCHMI-818APRGH_DS.pdf
ARCHMI-818A/P
These 18.5″ lightweight aluminium, front IP66 panel PCs employ the Intel Pentium N4200 CPU, and can be panel or VESA mounted for a sleek built-in feel. Perfect for industrial environments.
Quick Spec
| Display Size | 18.5'' |
|---|---|
| Processor | Intel Pentium N4200 |
| RAM | 4GB – 8GB |
| IP Rating | Front IP66 |
| Touchscreen | Resistive/Projected Capacitive |
| OS Supporting | Windows 10 Pro/IoT, Linux, Ubuntu |
| Mounting Type | Panel/VESA |
Datasheet
ARCHMI-818APRGH_DS.pdf
System
| CPU | Onboard Intel Pentium N42OO Processor |
| Memory | Onboard 4GB DDR3L 1333MHz/8GB (option) |
I/O Port
| USB | 2 x USB 3.0 type A |
| Serial/Parallel |
|
| Audio | 1 x Audio Line Out |
| LAN | 2 x GbE LAN RJ-45 |
| Power Connector |
|
| Option |
|
Storage
| HDD | 1 x 2.5″ SATA3 HDD bay for SATA HDD (Easy Accessible) |
| Movable Device | 1 x SD card slot, up to 32GB |
Expansion
| Expansion slot |
|
Display – based on standard display, high brightness option see datasheet
| Display Type | 18″ TFT-LCD |
| Max. Resolution | 1366 x 768 |
Touch Screen
| Type | Projected Capacitive / Resistive |
| Light Transmission (%) |
|
Power
| Power Input | DC 9~36V |

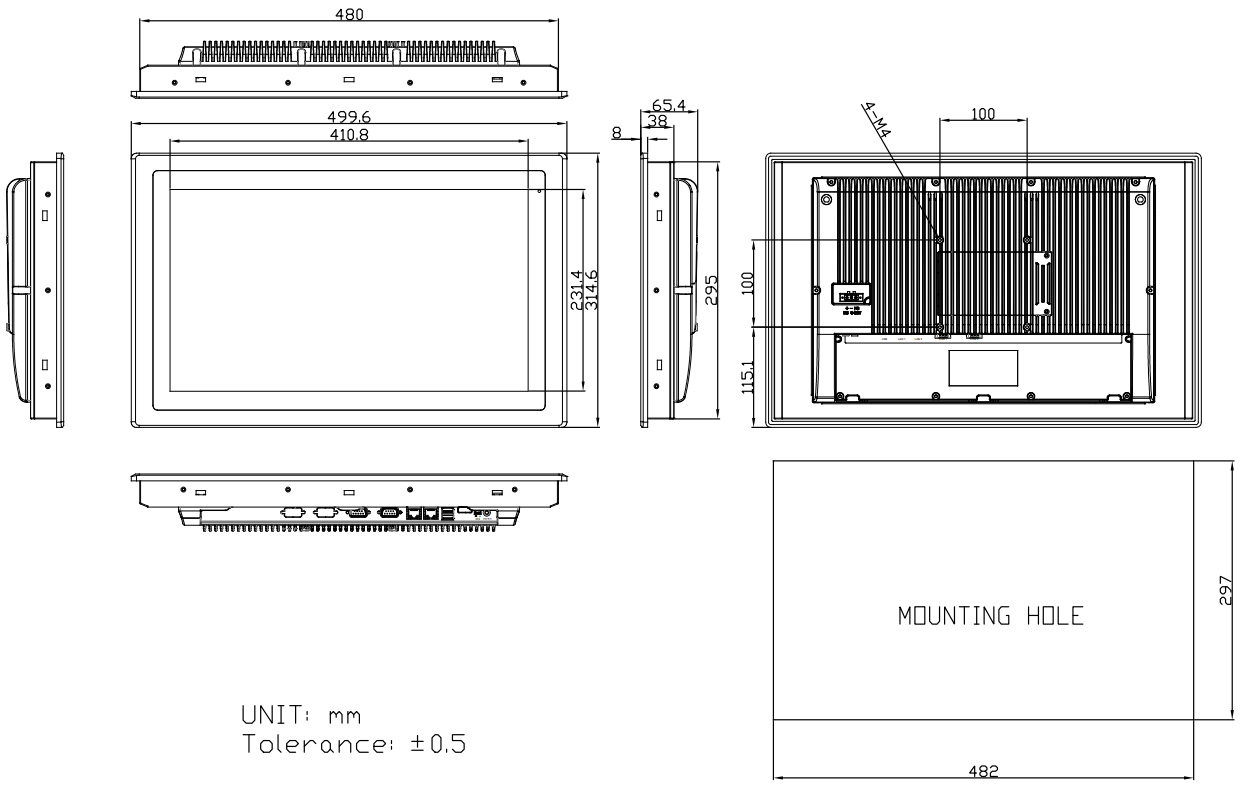

Mechanical
| Construction | Aluminium die-cast chassis |
| Mounting | Panel Mount, VESA Mount 100 x 100 |
| IP Rating | IP66 Compliant Front Bezel |
| Net Weight | 6.6kg |
Environmental
| Operating Temperature | 0~50°C |
| Certificate | CE/FCC Class A/CB/UL |
| Operating System Support | Windows 10 Pro/IoT, Linux, Ubuntu |
