- 23.8” Industrial Compact Size Panel PC
- Flat Front Panel Touch Screen and Fanless Design
- DC 9~36V Wide-Ranging Power Input
- Intel Core i3 8145UE CPU built-in
- Up to 8GB RAM
- IP66 Compliant Front Panel
- Supports TPM2.0 Hardware Security
Front IP rated Panel PCs, Industrial, Panel PCs
ARCHMI-924B/P
These 23.8″ lightweight aluminium, front IP66 panel PCs employ the Intel Core i3 8145UE CPU, and can be panel or VESA mounted for a sleek built-in feel. Perfect for industrial environments.
Quick Spec
| Display Size | 23.8 |
|---|---|
| Processor | Intel Core i3 8145UE |
| RAM | 4GB – 8GB |
| IP Rating | Front IP66 |
| Touchscreen | Resistive/Projected Capacitive |
| OS Support | Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu |
| Mounting Type | Panel/VESA |
System
| CPU | Onboard Intel Core i3 8145UE Processor |
| Memory | Up to 32GB |
| TPM | TPM 2.0 |
I/O Port
| USB | 4 x USB 3.0 type A |
| Serial/Parallel |
|
| Audio | 1 x Audio Line Out |
| DP | 1 x DP Port |
| LAN | 2 x GbE LAN RJ-45 |
| Power Connector |
|
| Option |
|
Storage
| Storage | 1 x M.2 M Key slot; (Support PCIe/SATA 2242/2280, Default 2242) |
Expansion
| Expansion slot |
|
Display – based on standard display, high brightness option see datasheet
| Display Type | 23.8″ TFT-LCD |
| Max. Resolution | 1920 x 1080 |
Touch Screen
| Type | Projected Capacitive / Resistive |
| Light Transmission (%) |
|
Power
| Power Input | DC 9~36V |

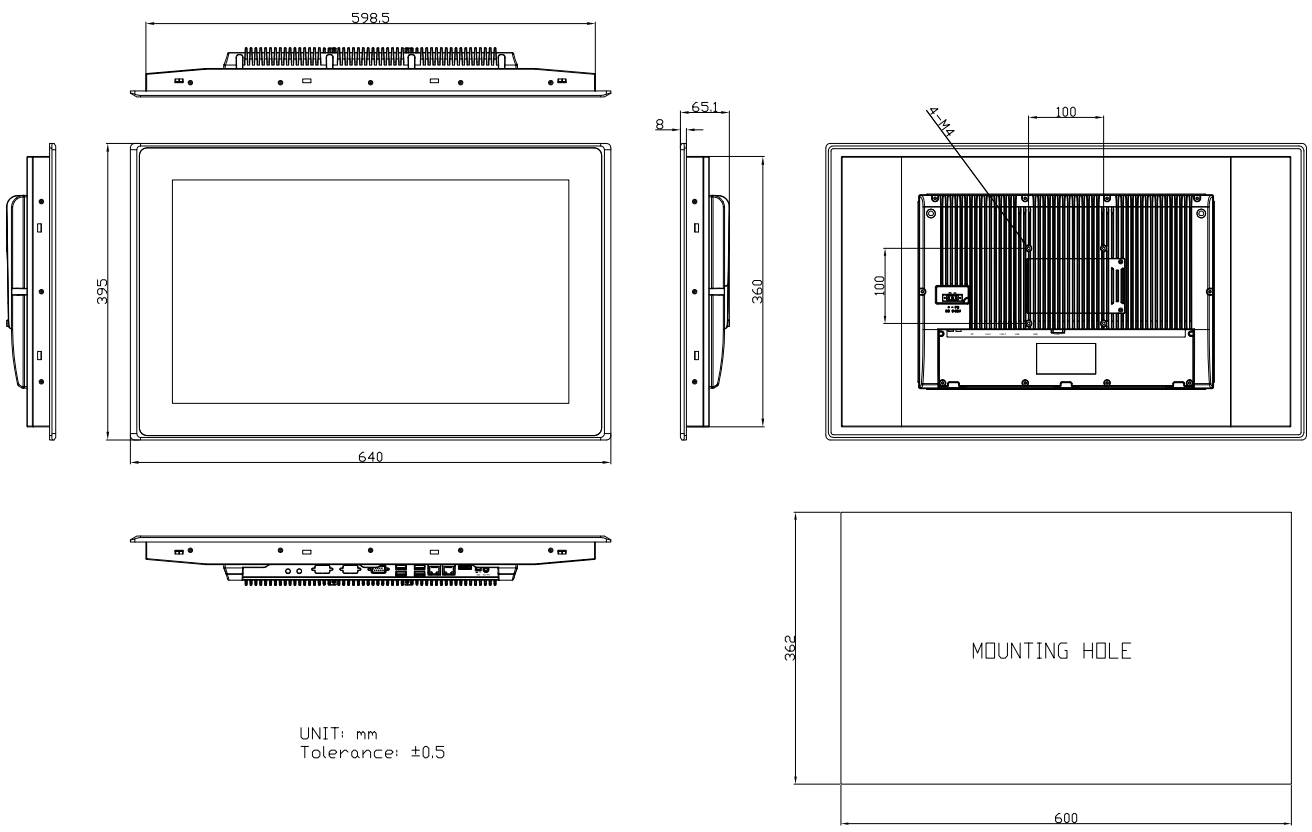

Mechanical
| Construction | Aluminium die-cast chassis |
| Mounting | Panel Mount, VESA Mount 100 x 100 |
| IP Rating | IP66 Compliant Front Bezel |
| Net Weight | 14.8kg |
Environmental
| Operating Temperature | 0~50°C/-20~60°C (option) |
| Certificate | CE/FCC Class A |
| Operating System Support | Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu |
