ARCHMI-932A/P

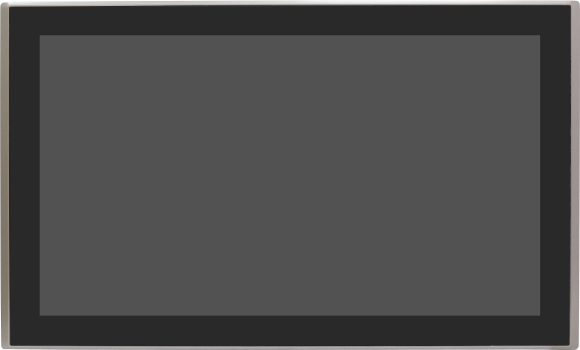

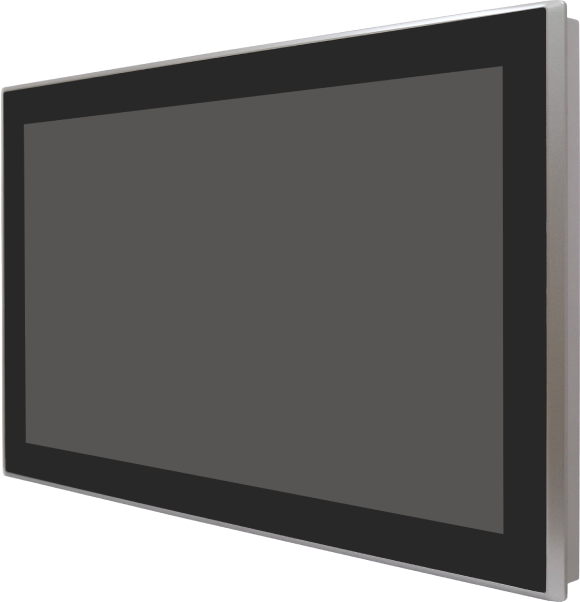

These 32″ lightweight aluminium, front IP66 panel PCs employ the Intel Core i3 6100U CPU, and can be panel or VESA mounted for a sleek built-in feel. Perfect for industrial environments.

Quick Spec

Display Size

32"

Processor

Intel Core i3 6100U

RAM

4GB – 8GB

IP Rating

Front IP66

Touchscreen

Resistive/Projected Capacitive

OS Support

Windows 10 Pro/IoT, Linux, Ubuntu

Mounting Type

Panel/VESA

Need Help? Contact Us


01462 374102

[email protected]
  • 32” Industrial Compact Size Panel PC
  • Flat Front Panel Touch Screen and Fanless Design
  • AC Power Input
  • Intel Core i3 6100U CPU built-in
  • Up to 8GB RAM
  • IP66 Compliant Front Panel

ARCHMI-932A

System
CPU Onboard Intel Core i3 6100U Processor
Memory Onboard 4GB/up to 16GB

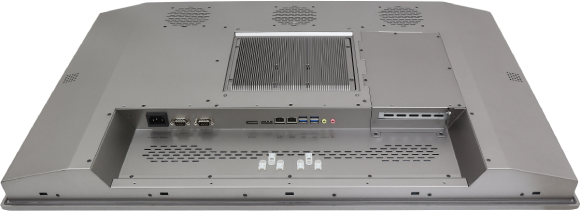

I/O Port
USB 2 x USB 3.0 type A
Serial/Parallel
  • 1 x DB-9 RS-232/422/485, COM1 (default RS-232)
  • 1 x RS-232 DB-9, COM2
Audio 1 x Audio Line Out
LAN 2 x GbE LAN RJ-45
Power Connector
  • 1 x 3-pin for DC power input terminal
  • 1 x 2-pin Power Switch
Option
  • 2 x RS-232 DB-9 + 1 x Mini-PCIe slot via TB-528C2ME1
  • 2 x CAN bus via TB-528CAN2
  • 2 x USB 2.0 type A Via TB-528U2
  • 2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1 x RS-232 DB-9 + 1 x Power button via TB-528C1U2P1
  • UPS Battery 21W/10.8W/1.95Ah(3S1P)
Storage
HDD 1 x 2.5″ SATA3 HDD bay for SATA SSD (Easy Accessible)
Expansion
Expansion slot
  • 1 x Internal Mini-PCIe slot full size
Display
Display Type 32″ TFT-LCD
Max. Resolution 1920 x 1080
Touch Screen
Type Projected Capacitive / Resistive
Light Transmission (%)
  • Projected Capacitive Touch: over 90%
  • Resistive Touch: over 80%
Power
Power Input AC 90~264V
Mechanical
Construction Aluminium die-cast chassis

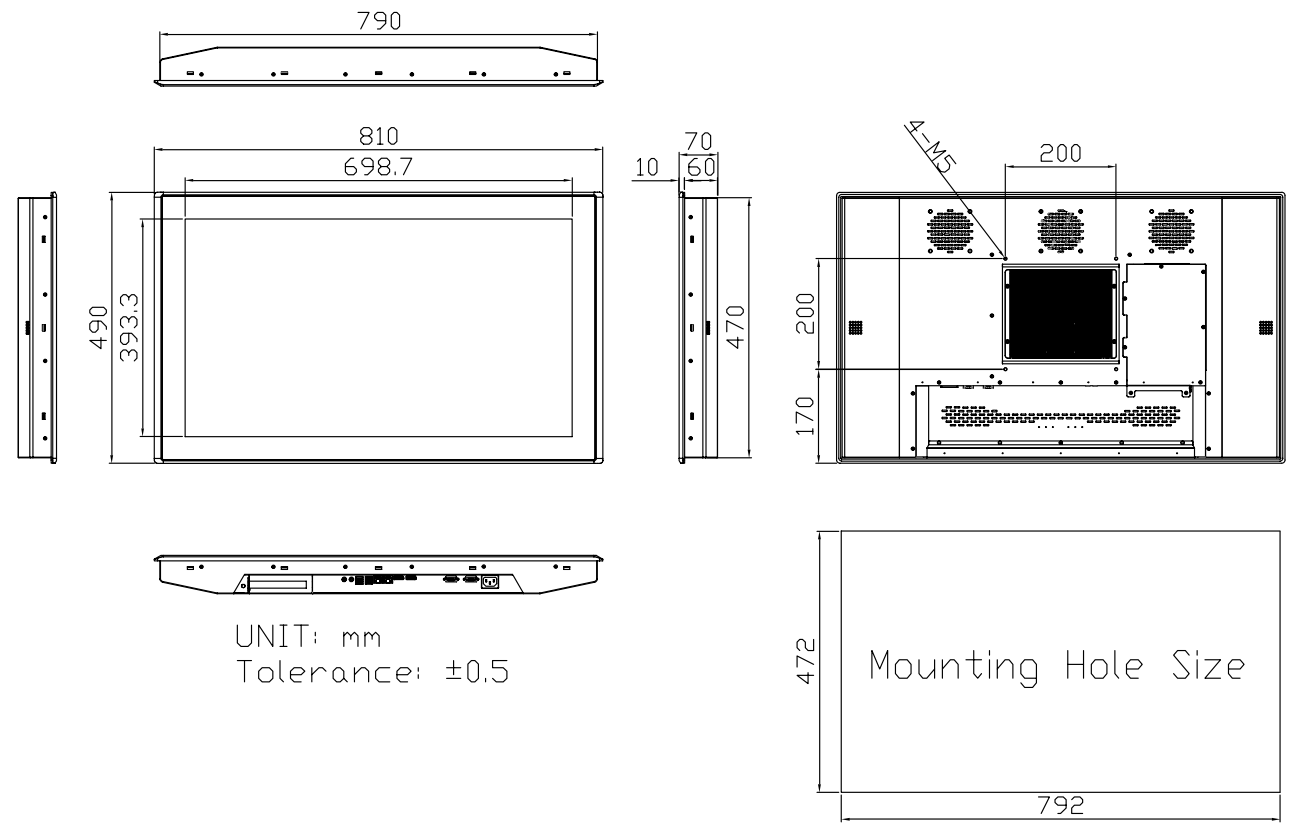

Mounting Panel Mount, VESA Mount 200 x 200
IP Rating IP66 Compliant Front Bezel
Net Weight 17.44kg
Environmental
Operating Temperature 0~50°C
Certificate CE/FCC Class A
Operating System Support Windows 10 Pro/IoT, Linux, Ubuntu

ARCHMI-932AP_V1.6.pdf

Mounting-a-Panel-PC.pdf
