- Intel Celeron J1900 Processor (2M, Cache 2.00GHz)
- 1 x SO-DIMM Socket, up to 8GB DDR3L support
- 3 x LAN, 3 x USB2.0, 1 x USB3.0, 1 x USB2.0
- 1 x mSATA for SSD storage, 1 x SATAII for HDD
- Compound Mounting Design with wall mount kit
- Wide Range DC 9~36V Power Input
- Rugged, Fanless, Compact Design
Machine Vision Systems
AVS-301_V1.0.pdf
AVS-301
This Industrial Machine Vision PC is a budget friendly system powered via the Intel J1900 processor with 3 x LAN ports, Super I/O and plenty of additional I/O to connect up multiple monitoring devices such as cameras.
Quick Spec
| Processor | Intel Celeron J1900 |
|---|---|
| RAM | 4GB – 8GB |
| OS Support | Windows 10 IoT |
| Mounting Type | Flange (wall) |
Datasheet
AVS-301_V1.0.pdf
System
| CPU | Onboard Intel Celeron J1900 Processor |
| Memory | 1 x 204-pin SO-DIMM DDR3L 1333MHz, up to 8GB |
I/O Port
| Super I/O | Nuvoton NCT6106D |
| USB |
|
| Serial/Parallel |
|
| Audio | 1 x Audio Line Out |
| LAN | 2 x GbE LAN RJ-45 |
| Digital I/O | 1 x 8-bit GPIO (4 x DI, 4 x DO) |
Display
| Controller | Integrated Intel HD Graphics 688 / 854 MHz(J1900) |
| HDMI | 1 x HDMI up to 1920 x 1200 |
| VGA | 1 x VGA, DB15 up to 1920 x 1200 |
Storage
| HDD |
|
Expansion
| Expansion slot | 1 x Full-size Mini-PCIe onboard |
Power
| Power Input | DC 9~36V |
| Power Connector |
|
Mechanical
| Colour | Black housing, TITANIUM GRAY Heat-sink |
| Construction | Aluminum Alloy Heat-sink Fin Enclosure |

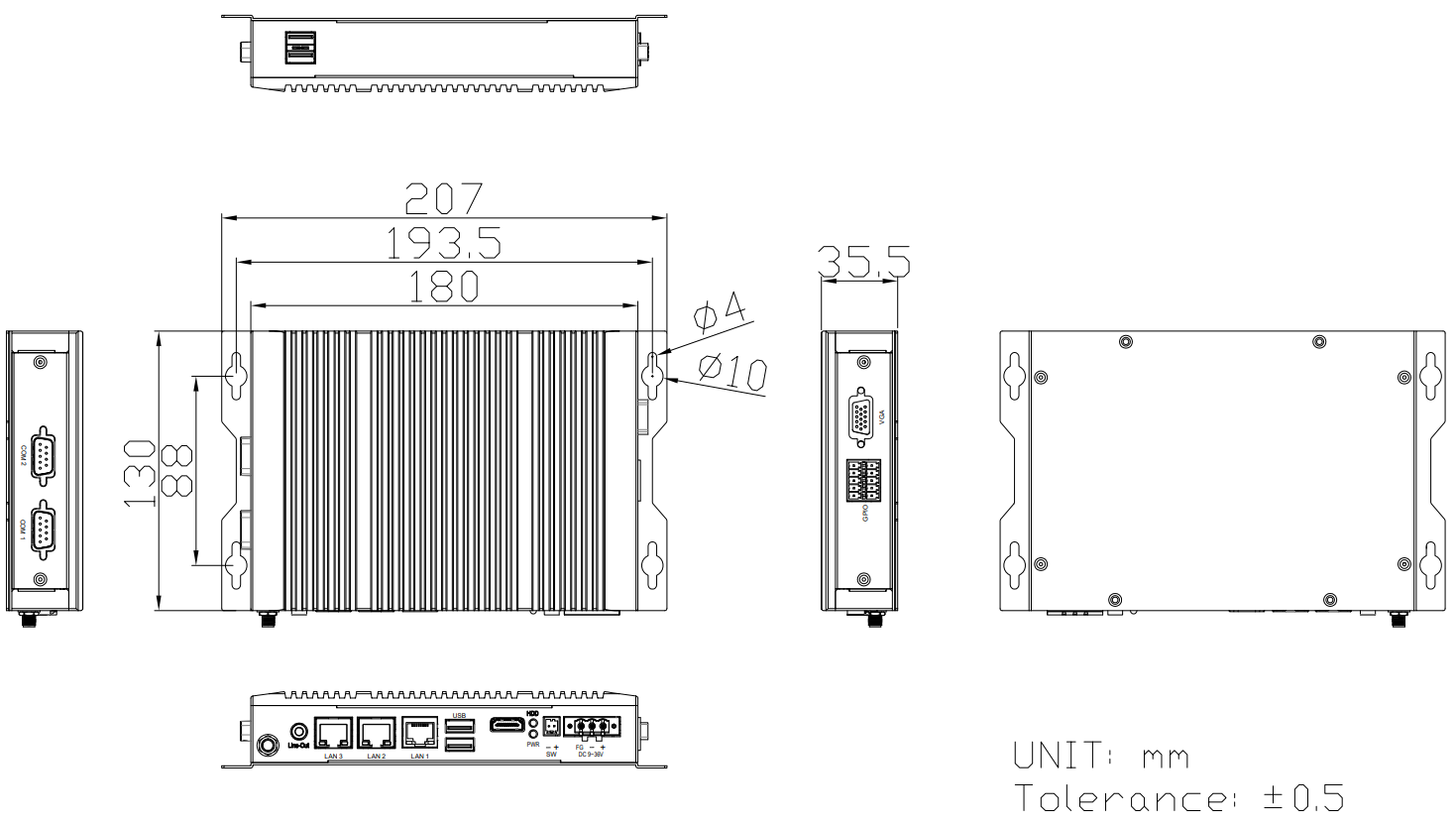

| Dimensions | 207 x 130 x 35.5 mm |
| Mounting | Compound with Wall-mount |
| Net Weight | 0.95kg |
| Operating Temperature | -20~70°C |
| Certificate | CE/FCC Class A |
| Operating System Support | Windows 10 IoT” |
