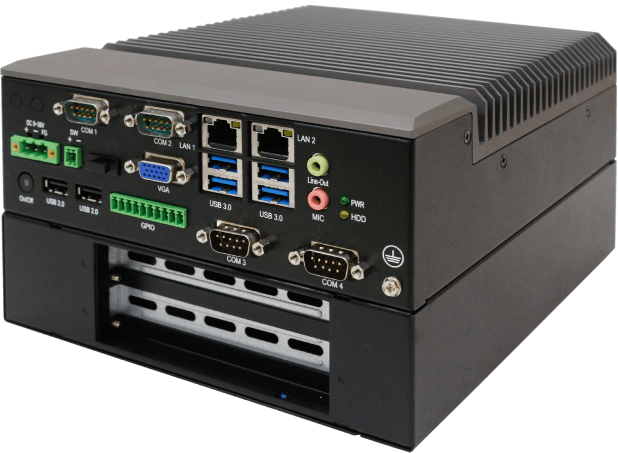

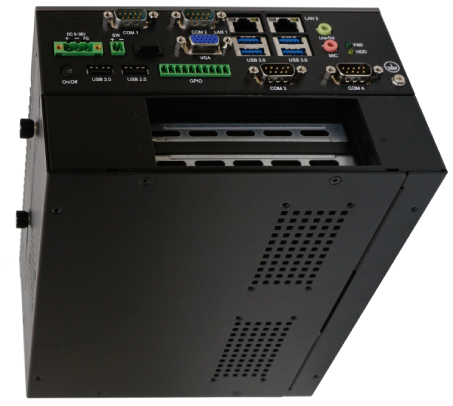

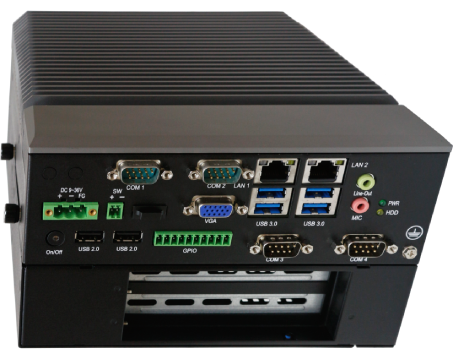

AVS-502

This versatile Industrial Machine Vision PC is powered by the 7th gen Intel core i3-7101TE processor with 2x LAN ports, 1x PCIe x16, 1x PCIe x4 and plenty of additional I/O to connect up multiple monitoring devices such as cameras.

Quick Spec

Processor

Intel Core i3 7101TE

RAM

4GB – 32GB

OS Support

Windows 10 IoT/Windows 11

Mounting Type

Flange (wall)

Need Help? Contact Us


01462 374102

[email protected]
  • Machine Vision Application System
  • 7th Gen. Intel Core i3 7101TE CPU
  • 2 x 260-pin DDR4 SO-DIMM memory
  • Fanless Design
  • Wide range DC 9~36V power input

AVS-502

System
CPU Intel Core i3 7101TE Processor
Memory 2 x 260-pin DDR4 SO-DIMM memory, up to 32GB
I/O Port
USB
  • 4 x USB 3.0 type A
  • 2 x USB 2.0 type A </li
Serial/Parallel
  • 1 x RS-232/422/485, DB9 (default RS-232)
  • 1 x RS-232 DB9
  • 1 x RS-422/485, DB9 ( default RS-485, optional)
  • 1 x RS-232 DB9 (optional)
Audio
  • 1 x Line-out
  • 1 x Mic-in
LAN 2 x GbE LAN, RJ-45 by intel I210(I211) AT controller
Digital I/O 1 x 8-bit GPIO, terminal block
Power
  • 1 x 3-pin DC power input terminal block
  • 1 x 2-pin power switch
  • 1 x power button
Display
HDMI 1 x HDMI
VGA 1 x VGA
Storage
HDD 2 x 2.5” SATA3 HDD/SSD, Easy-swappable HDD tray
Expansion
Onboard Expansion Bus 2 x full-size Mini-PCIe slot
Expansion slot
  • 1 x PCIe-16, 1 x PCIe-4, default
  • 1 x PCIe-16, 1 x PCI, optional
Power
Power Input DC 9~36V
Mechanical
Construction Plating Titanium Gray Aluminum Heatsink and Black Steel Chassis

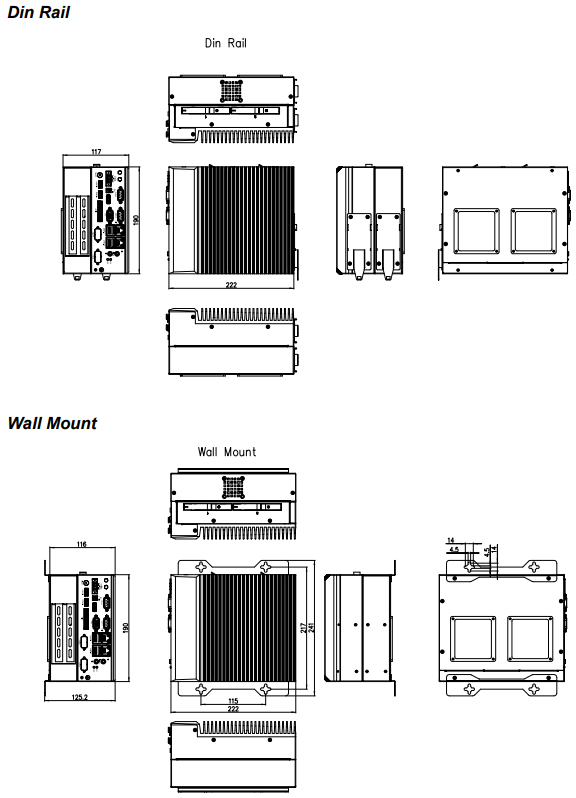

Mounting Wall Mount (default) & Din Rail (optional)
Thermal
  • Support 1 x 4cm 4pin PWM Fan (optional)
  • Support 2pcs Fan Filter ( 8cm x 8cm, optional)
Dimensions 222 x 190 x 117 mm
Gross Weight 4.1kg
Environmental Operating Temperature -20~50°C
Certificate CE/FCC Class A
Operating System Support Windows 10 IoT”

AVS-502_V1.2.pdf
