Machine Vision Systems

AVS-504

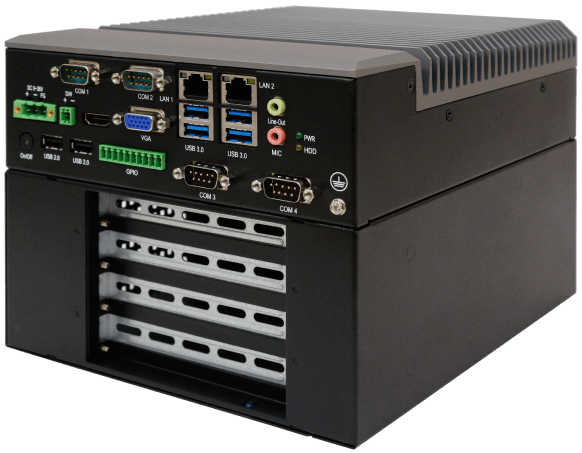

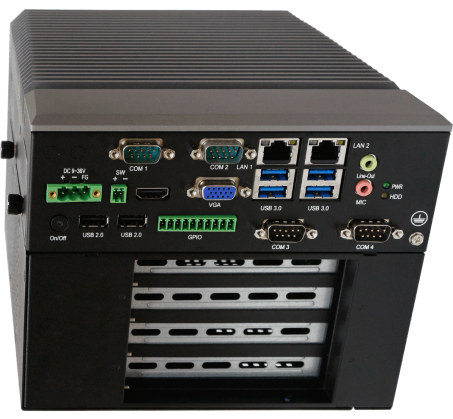

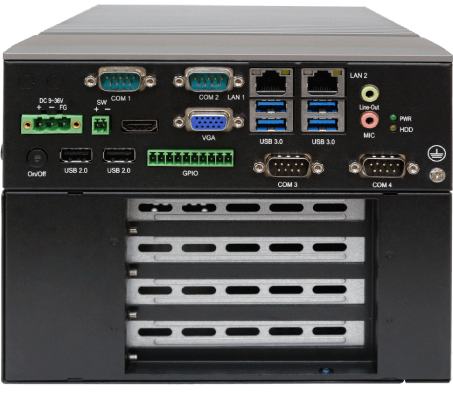

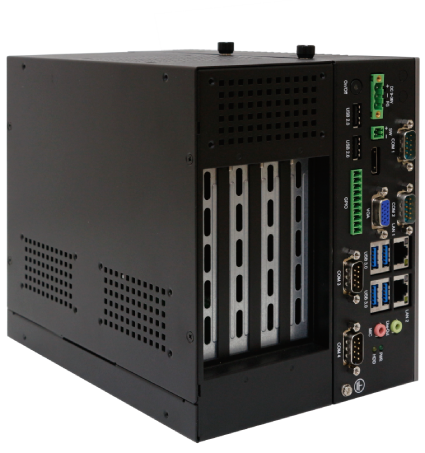

This versatile Industrial Machine Vision PC is powered by the 7th gen Intel core i3-7101TE processor with 2x LAN ports, 1x PCIe x16, 1x PCIe x4, 1x PCIe x1 and plenty of additional I/O to connect up multiple monitoring devices such as cameras.

Quick Spec

Processor	Intel Core i3 7101TE
RAM	4GB – 32GB
OS Support	Windows 10 IoT/Windows 11
Mounting Type	Flange (wall)

Datasheet

AVS-504_V1.2.pdf

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
[email protected]

Machine Vision Application System
7th Gen. Intel Core i3 7101TE CPU
2 x 260-pin DDR4 SO-DIMM memory
Fanless Design
Supports DIN rail and wall mount
Wide range DC 9~36V power input

System

CPU	Intel Core i3 7101TE Processor
Memory	2 x 260-pin DDR4 SO-DIMM memory, up to 32GB

I/O Port

USB	4 x USB 3.0 type A 2 x USB 2.0 type A </li
Serial/Parallel	1 x RS-232/422/485, DB9 (default RS-232) 1 x RS-232 DB9 1 x RS-422/485, DB9 ( default RS-485, optional) 1 x RS-232 DB9 (optional)
Audio	1 x Line-out 1 x Mic-in
LAN	2 x GbE LAN, RJ-45 by intel I210(I211) AT controller
Digital I/O	1 x 8-bit GPIO, terminal block
Power	1 x 3-pin DC power input terminal block 1 x 2-pin power switch 1 x power button

Display

HDMI	1 x HDMI
VGA	1 x VGA

Storage

HDD	2 x 2.5” SATA3 HDD/SSD, Easy-swappable HDD tray

Expansion

Onboard Expansion Bus	2 x full-size Mini-PCIe slot
Expansion slot	1 x PCIe-16, 1 x PCIe-4, 1 x PCIe-1, default 4 x PCI, optional

Power

Power Input

DC 9~36V

Mechanical

Construction	Plating Titanium Gray Aluminum Heatsink and Black Steel Chassis

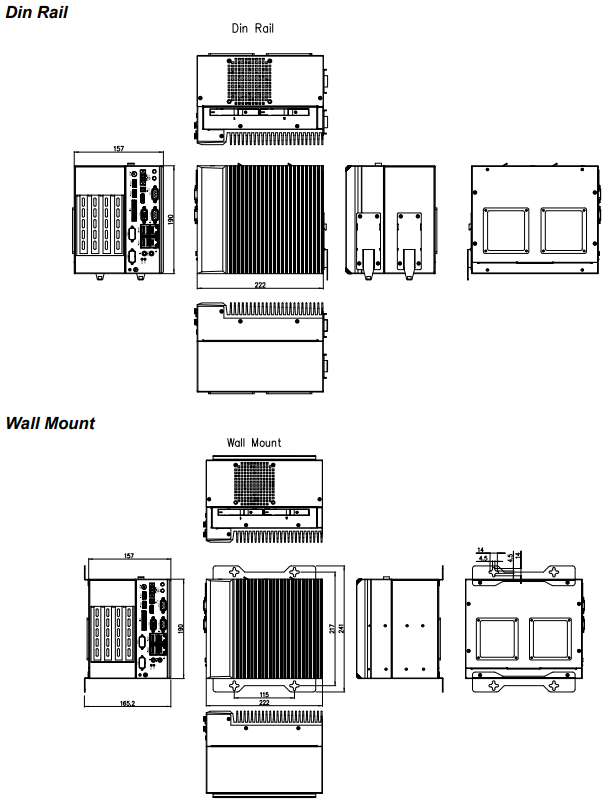

Mounting	Wall Mount (default) & Din Rail (optional)
Thermal	Support 1 x 8cm 4pin PWM Fan (optional) Support 2pcs Fan Filter ( 8cm x 8cm, optional)
Dimensions	222 x 190 x 157 mm
Gross Weight	4.4kg
Environmental Operating Temperature	-20~60°C
Certificate	CE/FCC Class A
Operating System Support	Windows 10 IoT”
