Machine Vision Systems

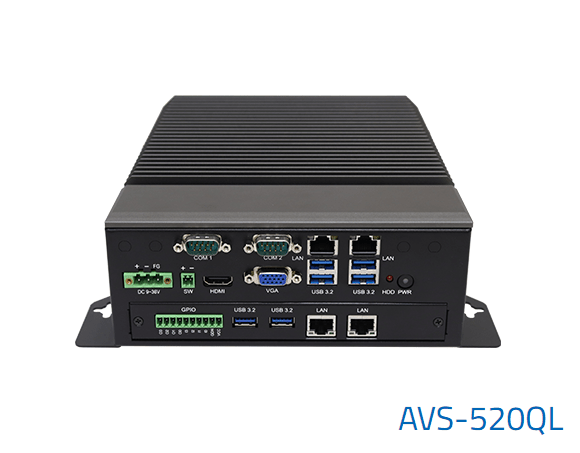

AVS-520QL

This versatile Industrial Machine Vision PC is powered by the 9th gen Intel core i3-9100TE processor with 2x LAN ports and plenty of High speed I/O to connect up multiple monitoring devices such as cameras.

Quick Spec

Processor	Intel Core i3 9100TE
RAM	4GB – 64GB
OS Support	Windows 10 IoT/Windows 11
Mounting Type	Flange (wall)

Datasheet

AVS-520QL_V1.1.pdf

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
[email protected]

Vertical System for Machine Vision
9th Gen. Intel Core i3 9100TE CPU
Support with DDR4 (2666MHz) SO-DIMM up to 64GB
Removable Drive-bays
Support extensive GPU Card(75W) expansion
CPU(35W) Fan-less Design and GPU Card Expansion with Smart Fan support
Flexible expansion features through I/O module design

System

CPU	Intel Core i3 9100TE Processor
Memory	2 x 260-pin DDR4 SO-DIMM memory, up to 64GB

I/O Port

USB	4 x USB 3.2 Gen1 type A 1 x internal USB2.0 Type A for dongle
Serial/Parallel	1 x RS-232/422/485 DB-9 (COM1, default RS-232) 1 x RS-232 DB9 1 x RS-422/485, DB9 ( default RS-485, optional) 1 x RS-232 DB9 (optional)
LAN	2 x GbE LAN, RJ-45 by intel I210(I211)AT and i219LM controller
Power	1 x 3-pin DC power input terminal block 1 x 2-pin power switch 1 x power button

Display

HDMI	1 x HDMI
VGA	1 x VGA

Storage

HDD	2 x 2.5” SATA3 HDD/SSD, Easy-swappable HDD tray

Expansion

Onboard Expansion Bus	1 x Full size Mini-PCIe slot 1 x M.2 M key 2280/2242 support NVMe
HS (High Speed) expansion I/O	2 x GbE LAN, RJ-45 by intel I210(I211) AT 2 x USB 3.0, type A x 8bit GPIO, terminal block 1×10 pin

Power

Power Input

DC 9~36V

Mechanical

Construction	Plating Titanium Gray Aluminum Heatsink and Black Steel

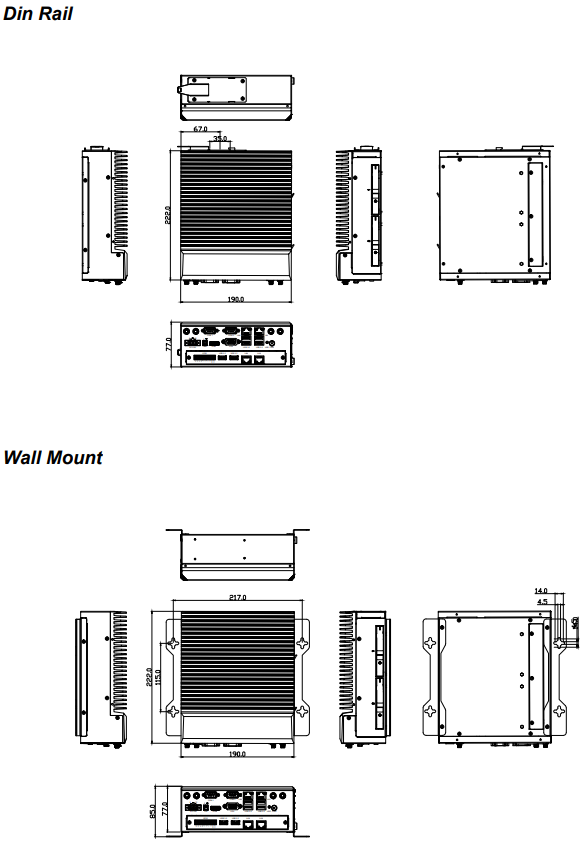

Mounting	Wall Mount (default) & Din Rail (optional)
Dimensions	222 x 190 x 77mm
Gross Weight	3.4kg

Environmental

Operating Temperature	-20~60°C
Certificate	CE/FCC Class A
Operating System Support	Windows 10 IoT, Windows 11 IoT
