- Vertical System for Machine Vision
- 9th Gen. Intel Core i5 9500TE CPU
- Support with DDR4 (2666MHz) SO-DIMM up to 64GB
- Removable Drive-bays
- Support extensive GPU Card(75W) expansion
- CPU(35W) Fan-less Design and GPU Card Expansion
- Flexible expansion features through I/O module design
Machine Vision Systems
AVS-522-EH1EQ1_V1.1.pdf

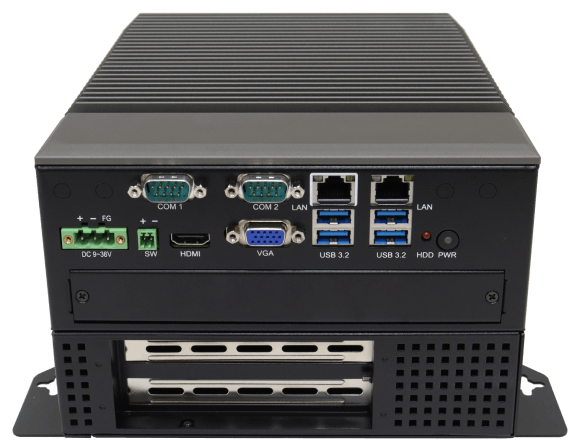

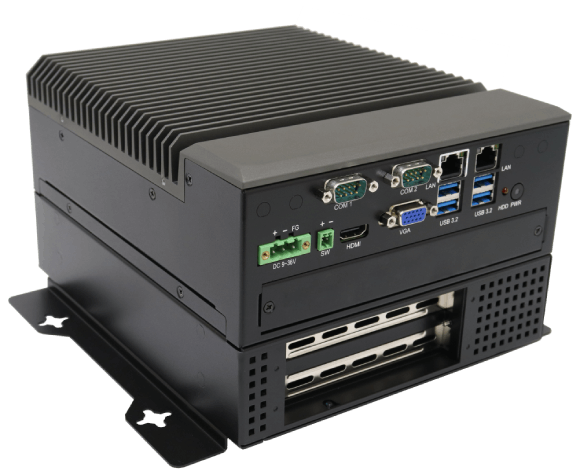

AVS-522-EH1EQ1
This versatile Industrial Machine Vision PC is powered by the 9th gen Intel core i5-9500TE processor with 2x LAN ports, 1x PCIe x16, 1x PCIe x4 and plenty of additional I/O to connect up multiple monitoring devices such as cameras.
Quick Spec
| Processor | Intel Core i5 9500TE |
|---|---|
| RAM | 4GB – 64GB |
| OS Support | Windows 10 IoT/Windows 11 |
| Mounting Type | Flange (wall) |
Datasheet
AVS-522-EH1EQ1_V1.1.pdf
System
| CPU | Intel Core i5 9500TE Processor |
| Memory | 2 x 260-pin DDR4 SO-DIMM memory, up to 64GB |
I/O Port
| USB |
|
| Serial/Parallel |
|
| LAN | 2 x GbE LAN, RJ-45 by intel I210(I211)AT and i219LM controller |
| Power |
|
Display
| HDMI | 1 x HDMI |
| VGA | 1 x VGA |
Storage
| HDD | 2 x 2.5” SATA3 HDD/SSD, Easy-swappable HDD tray |
Expansion
| Onboard Expansion Bus |
|
| Riser | 1 x PCIe-16, 1 x PCIe-4, default |
Power
| Power Input | DC 9~36V |
Mechanical
| Construction | Plating Titanium Gray Aluminum Heatsink and Black Steel Chassis |

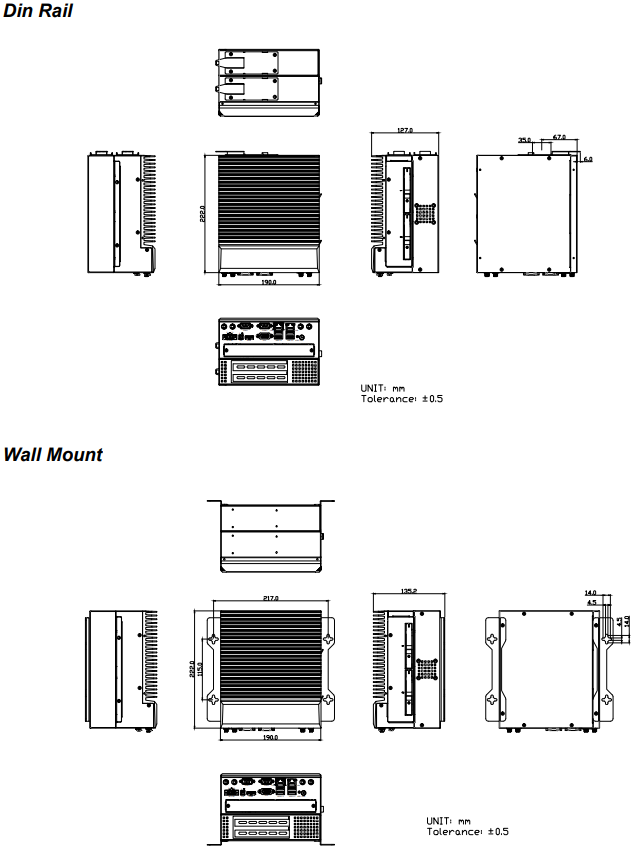

| Mounting | Wall Mount (default) & Din Rail (optional) |
| Dimensions | 222 x 190 x 127mm |
| Gross Weight | 4.2kg |
Environmental
| Operating Temperature | -20~60°C |
| Certificate | CE/FCC Class A |
| Operating System Support | Windows 10 IoT, Windows 11 IoT |
