- 10.4″ Industrial Compact Size Panel PC
- Upto 8Gb RAM
- Flat Front Panel Touch Screen and Fanless Design
- ARM Rockchip RK3568
- Front IP65 Compliant Bezel
- Supports Android 11
Front IP rated Panel PCs, Industrial, Panel PCs
CAIMAN-10.4
These 10.4″ lightweight aluminium, front IP65 panel PCs employ the ARM Rockchip RK3568 and can be panel or VESA mounted for a sleek built-in feel. Perfect for industrial environments.
Quick Spec
| Display Size | 10.4" |
|---|---|
| Processor | ARM Rockchip RK3568 |
| RAM | 2GB – 8GB |
| IP Rating | Front IP65 |
| Touchscreen | Resistive/Projected Capacitive |
| OS Support | Android 11 |
| Mounting Type | VESA/Panel |
System
| CPU | ARM Rockchip RK3568 |
| Memory | up to 8GB DDR4 3200MHz On Board |

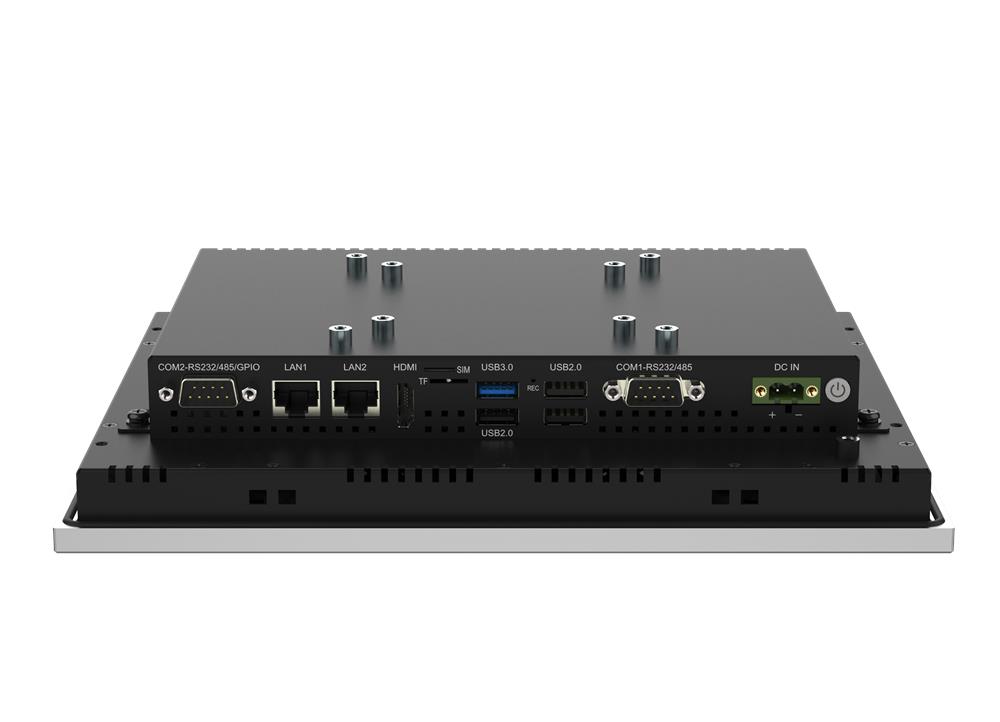

I/O Port
| USB | 1x USB 3.0, 3 x USB 2.0 type A |
| Serial/Parallel |
|
| LAN | 2 x GbE LAN RJ-45 |
| Power Connector |
|
Storage
| eMMC Onboard Upto 64Gb |
Display – based on standard display, high brightness option see datasheet
| Display Type | 10.4″ TFT-LCD |
| Max. Resolution | 1024 x 768 |
Touch Screen
| Type | Projected Capacitive / Resistive |
Power
| Power Input | DC 12 (Optional 9~36V) |

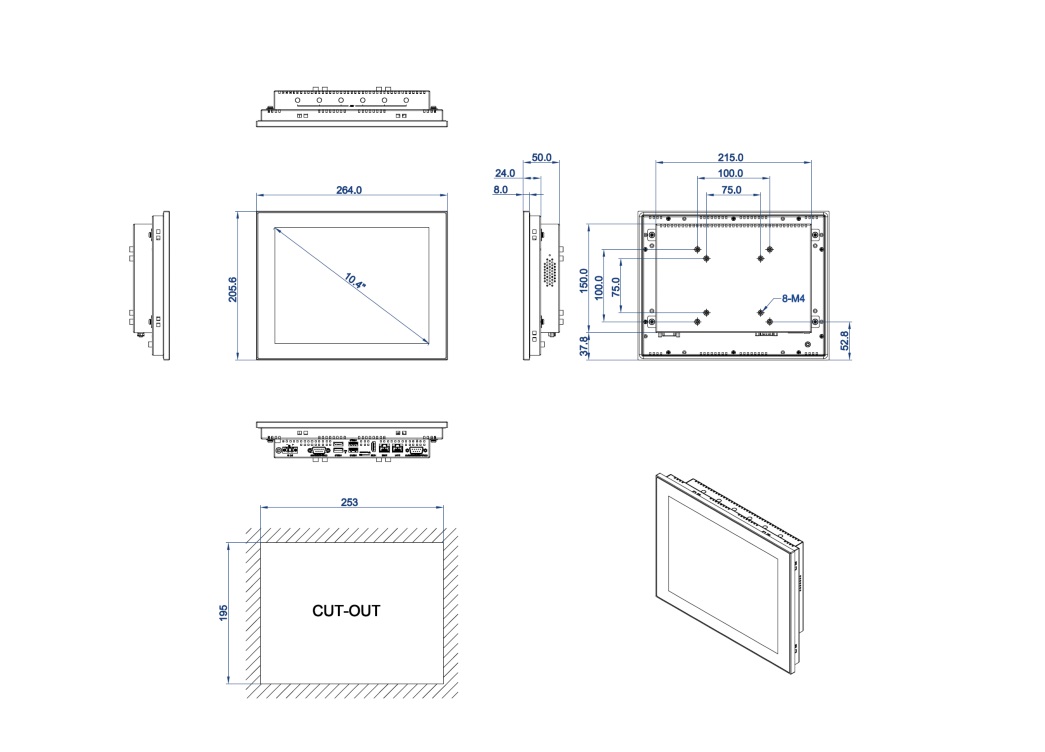

Mechanical
| Construction | Magnesium-Aluminum Alloy |

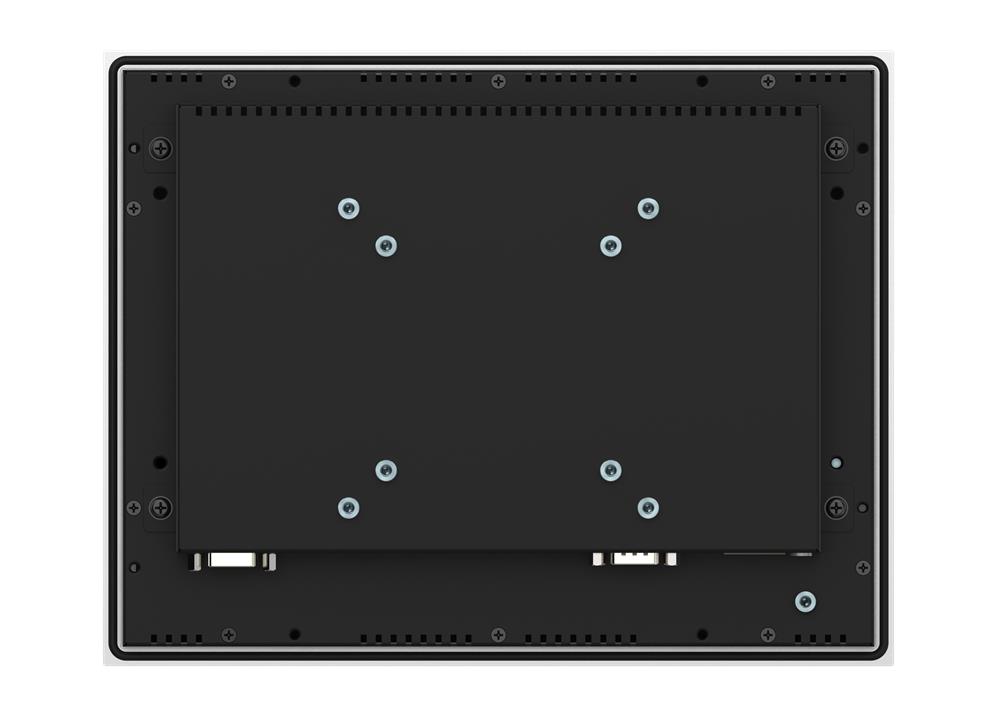

| Mounting | Panel Mount, VESA Mount 75 x 75/100 x 100 |
| IP Rating | IP65 Compliant Front Bezel |
| Net Weight | 3kg |
Environmental
| Operating Temperature | -20°C~70°C |
| Certificate | CE/FCC Class A |
| Operating System Support | Android 11, Linux |
