CAIMAN-18.5

These 18.5″ lightweight aluminium, front IP65 panel PCs employ the ARM Rockchip RK3568 and can be panel or VESA mounted for a sleek built-in feel. Perfect for industrial environments.

Quick Spec

Display Size

18.5''
Processor

ARM Rockchip RK3568
RAM

2GB – 8GB
IP Rating

Front IP65
Touchscreen

Resistive/Projected Capacitive
OS Support

Android 11
Mounting Type

VESA/Panel
Request a Quote Back to Product

Need Help? Contact Us


01462 374102
[email protected]
  • 18.5″ Industrial Compact Size Panel PC
  • Upto 8Gb RAM
  • Flat Front Panel Touch Screen and Fanless Design
  • ARM Rockchip RK3568
  • Front IP65 Compliant Bezel
  • Supports Android 11

18.5

System
CPU ARM Rockchip RK3568
Memory up to 8GB DDR4 3200MHz On Board

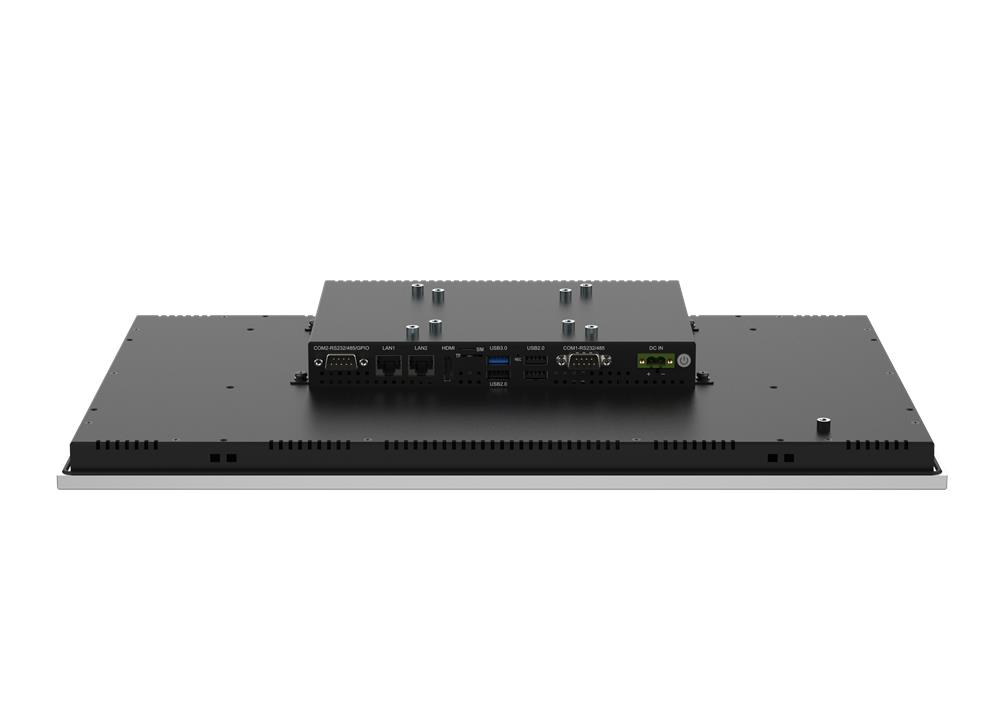

I/O Port
USB 1x USB 3.0, 3 x USB 2.0 type A
Serial/Parallel
  • 2 x DB-9 RS-232/422/485, COM1 (default RS-232) COM2 (optional support RS-485/GPIO)
LAN 2 x GbE LAN RJ-45
Power Connector
  • 1 x 2-pin for DC power input terminal
Storage
eMMC Onboard Upto 64Gb
Display – based on standard display, high brightness option see datasheet
Display Type 18.5″ TFT-LCD
Max. Resolution 1366 x 768 (1920 x 1080 Optional)
Touch Screen
Type Projected Capacitive / Resistive
Power
Power Input DC 12 (Optional 9~36V)
Mechanical
Construction Magnesium-Aluminum Alloy

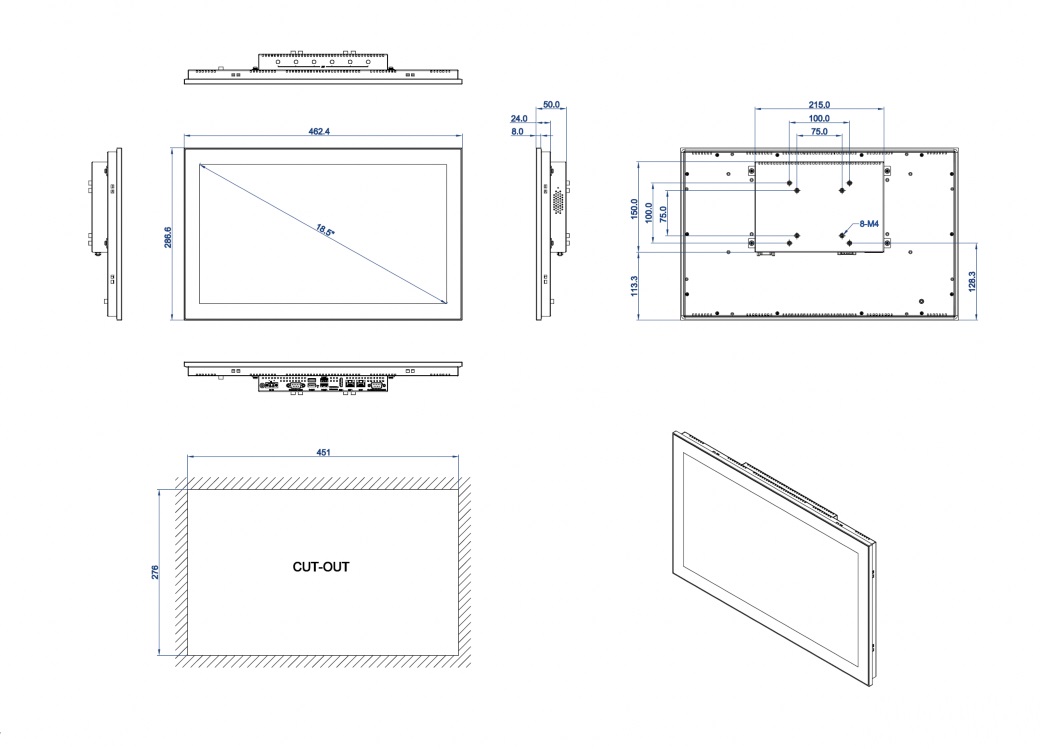

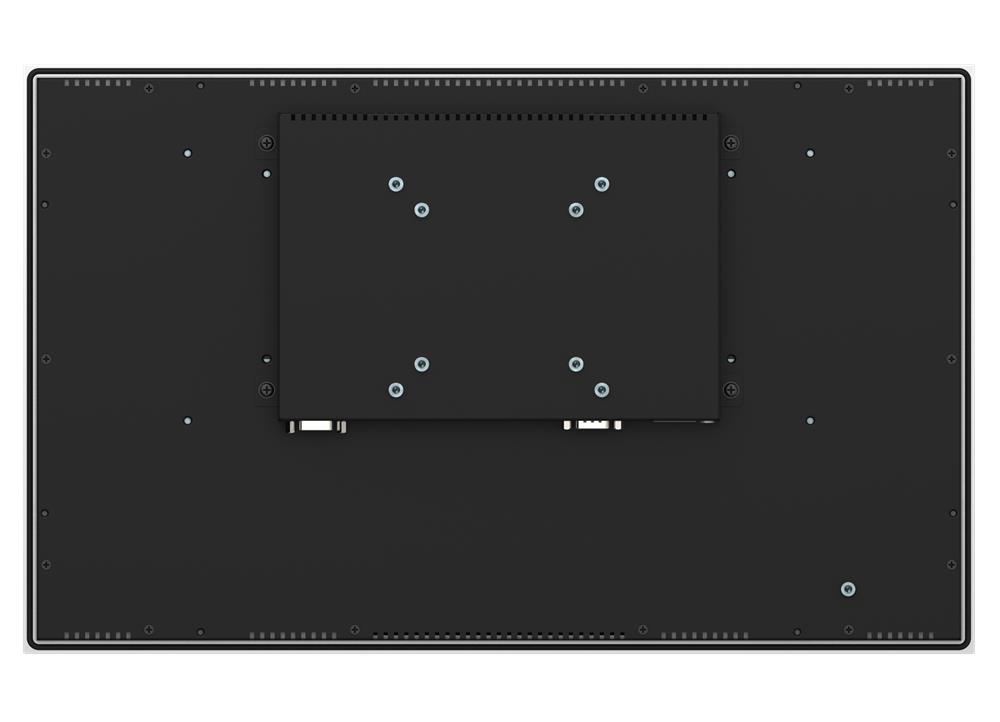

Mounting Panel Mount, VESA Mount 75 x 75/100 x 100
IP Rating IP65 Compliant Front Bezel
Net Weight 5.5kg
Environmental
Operating Temperature -20°C~60°C
Certificate CE/FCC Class A
Operating System Support Android 11, Linux
