- Intel® Tiger Lake i5-1135G7 Processor
- DDR4 3200MHz Dual Channel SO-DIMM x2, memory up to 64GB
- 2*HDMI 2.0b (Max Resolution: 4096×2160@60Hz)
- 2*DP 1.4 (Max Resolution: 4096×2304@60Hz)
- Support Four Displays (4K HDR Displays or One 8K SDR Displays (DP)
- M.2 M-key x1 (2242/2280), PCIe Gen.4 x4 interface support NVMe SSD
- M.2 E-key x1 (2230), USB2.0/PCIe x1 interface (CNVi supported)
- WL AN/BT
- COM1/COM2 RS232/485/422
- COM3/COM4 RS232
- DC Jack power input +12V~24V power adapter
Industrial PCs
EBOX-TGL-35G7-Datasheet
EBOX-TGL-35G7

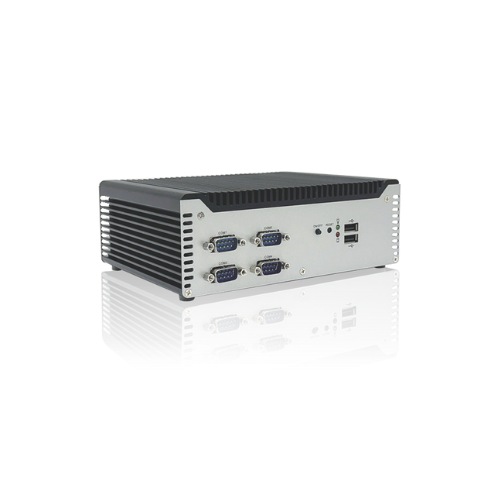

This fanless embedded computer is powered by an Intel® Tiger Lake i5-1135G7 Processor with a clock speed of 2.40GHz, support for up to 64GB of DDR4 3200MHz memory through dual-channel SO-DIMM slots, features two HDMI 2.0 ports and two DP 1.4 ports, supporting up to four 4K HDR displays or a single 8K SDR display.
Quick Spec
| Processor | Intel® Tiger Lake i5-1135G7 Processor |
|---|---|
| RAM | 8Gb – 64Gb |
| OS Support | Windows 10 and 11 |
| Mounting Type | Wall Mount and VESA Mount |
Datasheet
EBOX-TGL-35G7-Datasheet
Specification
| Processor | Intel® Tiger Lake i5-1135G7 Processor (Quad core 2.4GHz) |
| Memory | DDR4 3200MHz Dual Channel SO-DIMM x2, memory up to 64GB |
| BIOS | AMI BIOS |
| Disk Support | M.2 M-key x1 (2242/2280), PCIe Gen.4 x4 interface suppor t NVMe SSD |
| Expansion | M.2 E-key x1 (2230), USB2.0/PCIe x1 interface (CNVi supported) WLAN/B T |
| Display | Intel® HD Graphics, shared memory, HDMI 2.0 x2 (Max. 4096×2160@60Hz), DP 1.4 x2 (Max. 4096×2160@60Hz), Support Four Displays (4K HDR Displays or One 8K SDR Displays (DP) |
| Ethernet | Intel® i219-LM 1.0GbE x1, Intel® i225-V 2.5GbE x1 |
| Audio | HD Audio Realtek ALC888S-VD2 |

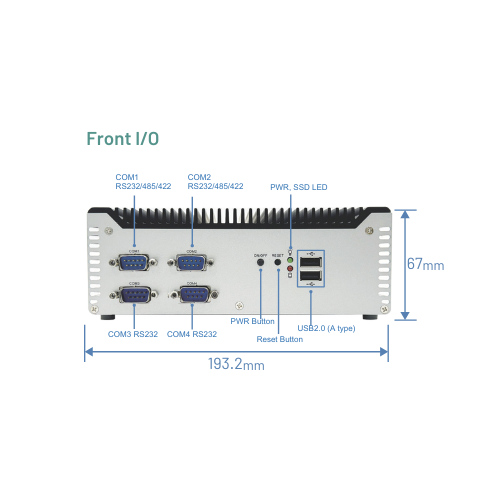

| Front I/O | Power button x1/Reset button x1, Power LED x1/ SSD LED x1, USB 2.0 x2, COM x4 (RS232/485/422 x2, RS232 x2), USB 3.2 (Gen2) x4/ RJ45 x2 |

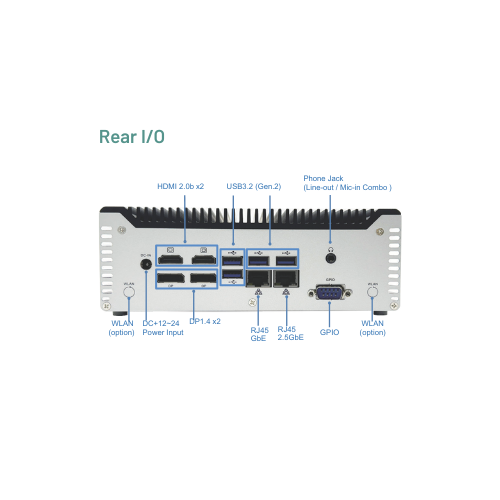

| Rear I/O | HDMI x2/ DP x2, Mic-in & Line -out Combo x1, GPIO x1 |
| OS support | Windows 10, Windows 11 (64-bit), Linux |
Mechanical & Environment
| Power Requirement | DC +12V Power adapter only (2 .5ø) |
| Power adapter | +12V7.5A (90W) |
| Operating Temperature | -20~+60°C |
| Storage Temperature | -30~+70°C |
| Net Weight | 2.2 kgs |
| Dimensions (W x D x H) | 193.2 x 140 x 67mm |
| Certifications | CE, UKCA, FCC, VCCI |
Order information
| EBOX-TGL-35G7 | Intel Tiger Lake i5-1135G7 Embedded computer |
| POWER-90W-TGL | AC-DC power adapter [email protected] (AC 100~240V Input) |
| POWERCABLE (G)(A)(EN)(AU) | Power cord US/EU/UK/AU&NZ types |
| CASE-35-VESA | VESA Rack (Optional) |
