Front IP rated Industrial Displays, Industrial, Industrial Display

FABS-117P

These 17″ lightweight stainless-steel, front IP66/IP69K industrial displays can be panel or VESA mounted for a sleek built-in feel. Perfect for the food and beverage industry.

Categories: Front IP rated Industrial Displays, Industrial, Industrial Display

Quick Spec

Display Size	17"
IP Rating	Front IP66/IP69K
Touchscreen	Projected Capacitive, Resistive, No Touch Hardened Glass
Mounting Type	Panel/VESA

Datasheet

FABS-117PGH_V0.1.pdf

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
[email protected]

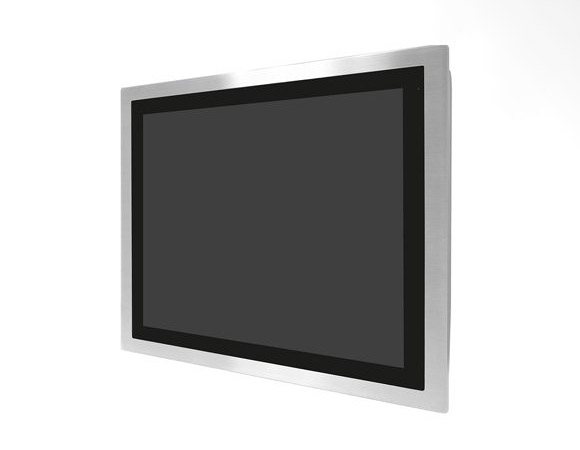

17” Industrial Compact Size Industrial Display
Stainless-Steel Bezel
Flat Front Panel Touch Screen and Fanless Design
DC 9~36V Wide-Ranging Power Input
IP66/IP69K Compliant Front Panel

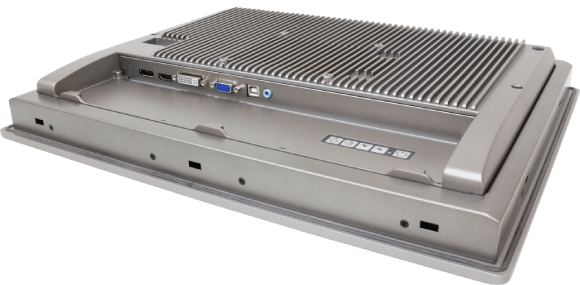

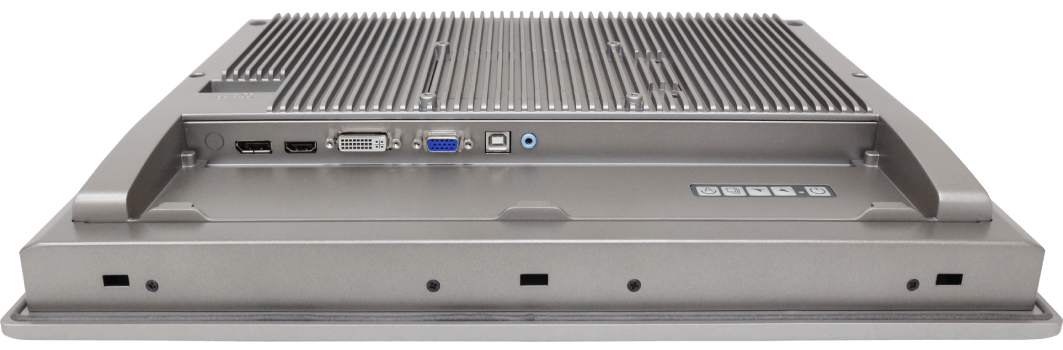

I/O Port

VGA	1 x VGA
DVI	1 x DVI-D (share with HDMI)
DP	1 x DP
HDMI	1 x HDMI (share with DVI-D)
Audio	1 x Audio line-in phone jack
Power Connector	1 x 3-pin terminal block for DC 9~36V power input
Others	1 x USB type B for touch control Optional I/O: 1 x Speaker
Display	based on standard display, high brightness option see datasheet
Display Type	17″” TFT-LCD
Max. Resolution	1280 x 1024

Touch Screen

Type	Projected Capacitive/Resistive/Glass
Interface	USB interface
Light Transmission (%)	over 90%

Power

Power Input

DC 9~36V

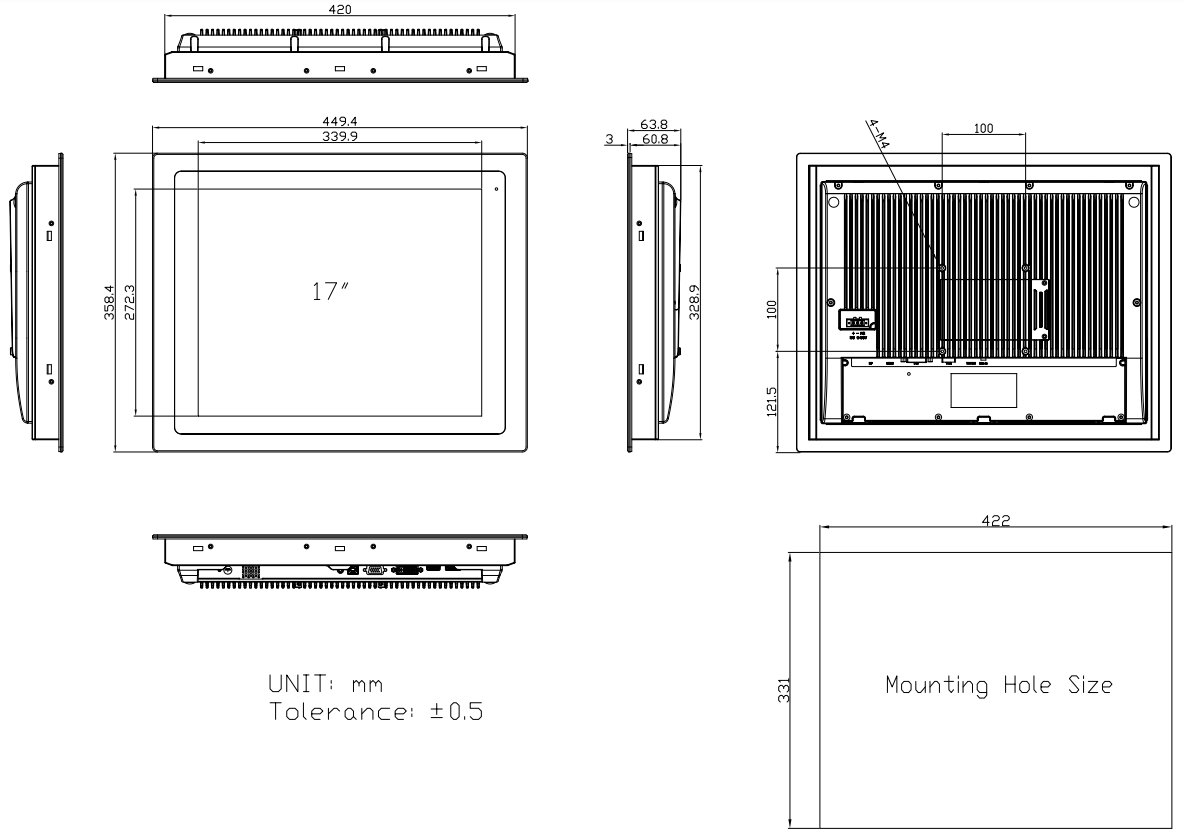

Mechanical

Construction	304 Stainless steel front bezel (316 option) Aluminium die-cast chassis
Mounting	Panel Mount, VESA Mount 100 x 100
IP Rating	Front Panel IP66/IP69K
Net Weight	6.4kg

Environmental

Operating Temperature	0~50°C/-20~60°C option
Certificate	CE/FCC Class A

FABS-117PGH_V0.1.pdf
