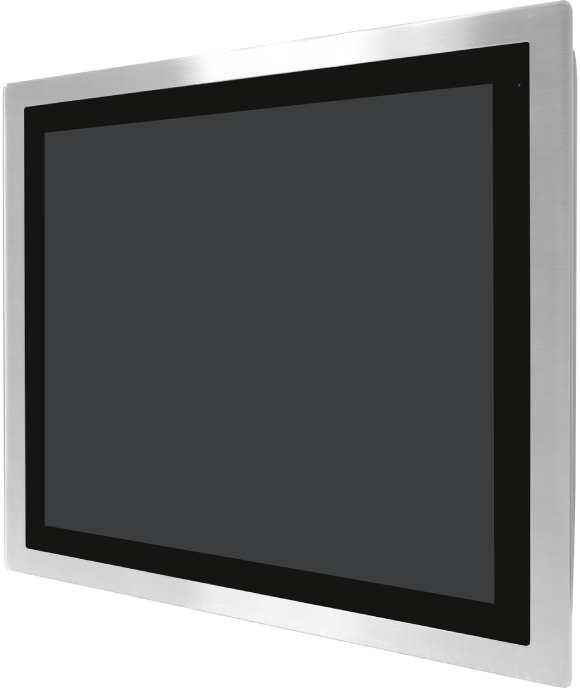

- 19” Industrial Compact Size Industrial Display
- Stainless-Steel Bezel
- Flat Front Panel Touch Screen and Fanless Design
- DC 9~36V Wide-Ranging Power Input
- IP66/IP69K Compliant Front Panel
Front IP rated Industrial Displays, Industrial, Industrial Display
FABS-119PGH_V0.1.pdf
FABS-119P
These 19″ lightweight stainless-steel, front IP66/IP69K industrial displays can be panel or VESA mounted for a sleek built-in feel. Perfect for the food and beverage industry.
Quick Spec
| Display Size | 19" |
|---|---|
| IP Rating | Front IP66/IP69K |
| Touchscreen | Projected Capacitive, Resistive, No Touch Hardened Glass |
| Mounting Type | Panel/VESA |
Datasheet
FABS-119PGH_V0.1.pdf
I/O Port
| VGA | 1 x VGA |
| DVI | 1 x DVI-D (share with HDMI) |
| DP | 1 x DP |
| HDMI | 1 x HDMI (share with DVI-D) |
| Audio | 1 x Audio line-in phone jack |
| Power Connector | 1 x 3-pin terminal block for DC 9~36V power input |
| Others |
|
| Display | based on standard display, high brightness option see datasheet |
| Display Type | 19″” TFT-LCD |
| Max. Resolution | 1280 x 1024 |
Touch Screen
| Type | Projected Capacitive/Resistive/Glass |
| Interface | USB interface |
| Light Transmission (%) | over 90% |
Power
| Power Input | DC 9~36V |
Mechanical
| Construction | 304 Stainless steel front bezel (316 option) Aluminium die-cast chassis |

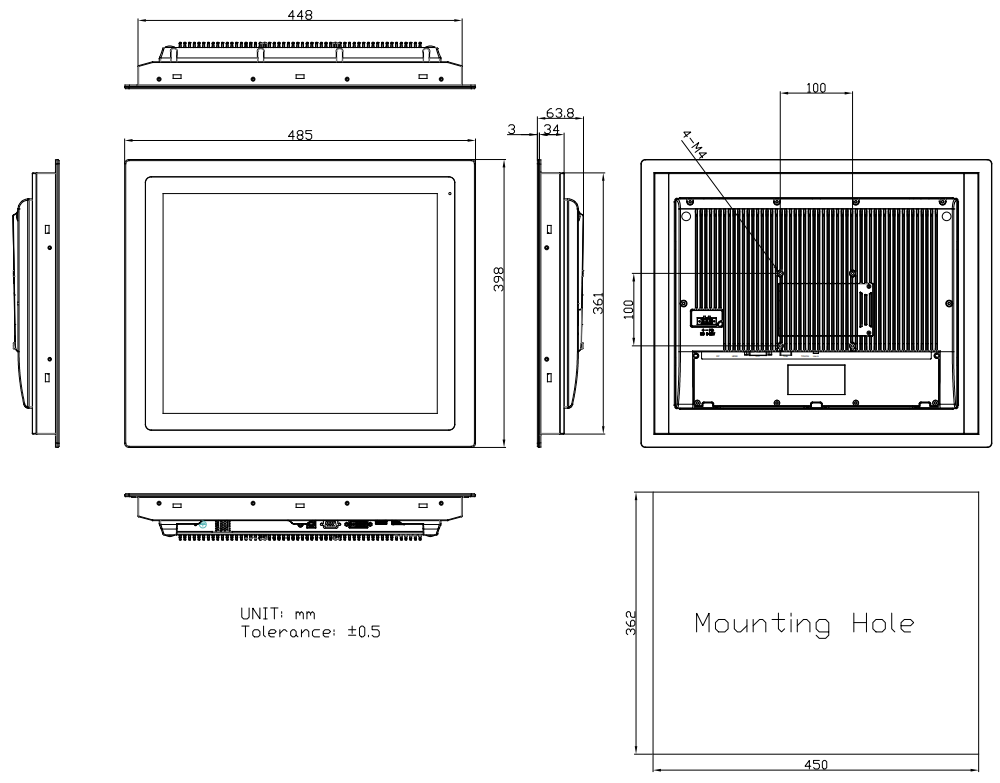

| Mounting | Panel Mount, VESA Mount 100 x 100 |
| IP Rating | Front Panel IP66/IP69K |
| Net Weight | 6.3kg |
Environmental
| Operating Temperature | 0~50°C/-20~60°C option |
| Certificate | CE/FCC Class A |
