- 21.5” Industrial Compact Size Industrial Display
- Stainless-Steel Bezel
- Flat Front Panel Touch Screen and Fanless Design
- DC 9~36V Wide-Ranging Power Input
- IP66/IP69K Compliant Front Panel
Front IP rated Industrial Displays, Industrial, Industrial Display
FABS-121PGH_V0.1-1.pdf
FABS-121P
These 21.5″ lightweight stainless-steel, front IP66/IP69K industrial displays can be panel or VESA mounted for a sleek built-in feel. Perfect for the food and beverage industry.
Quick Spec
| Display Size | 21.5" |
|---|---|
| IP Rating | Front IP66/IP69K |
| Touchscreen | Projected Capacitive, Resistive, No Touch Hardened Glass |
| Mounting Type | Panel/VESA |
Datasheet
FABS-121PGH_V0.1-1.pdf
I/O Port
| VGA | 1 x VGA |
| DVI | 1 x DVI-D (share with HDMI) |
| HDMI | 1 x HDMI (share with DVI-D) |
| Audio | 1 x Audio line-in phone jack |
| Power Connector | 1 x 3-pin terminal block for DC 9~36V power input |
| Others |
|
| Display | based on standard display, high brightness option see datasheet |
| Display Type | 21.5″” TFT-LCD |
| Max. Resolution | 1920 x 1080 |
Touch Screen
| Type | Projected Capacitive/Resistive/Glass |
| Interface | USB interface |
| Light Transmission (%) | over 90% |
Power
| Power Input | DC 9~36V |

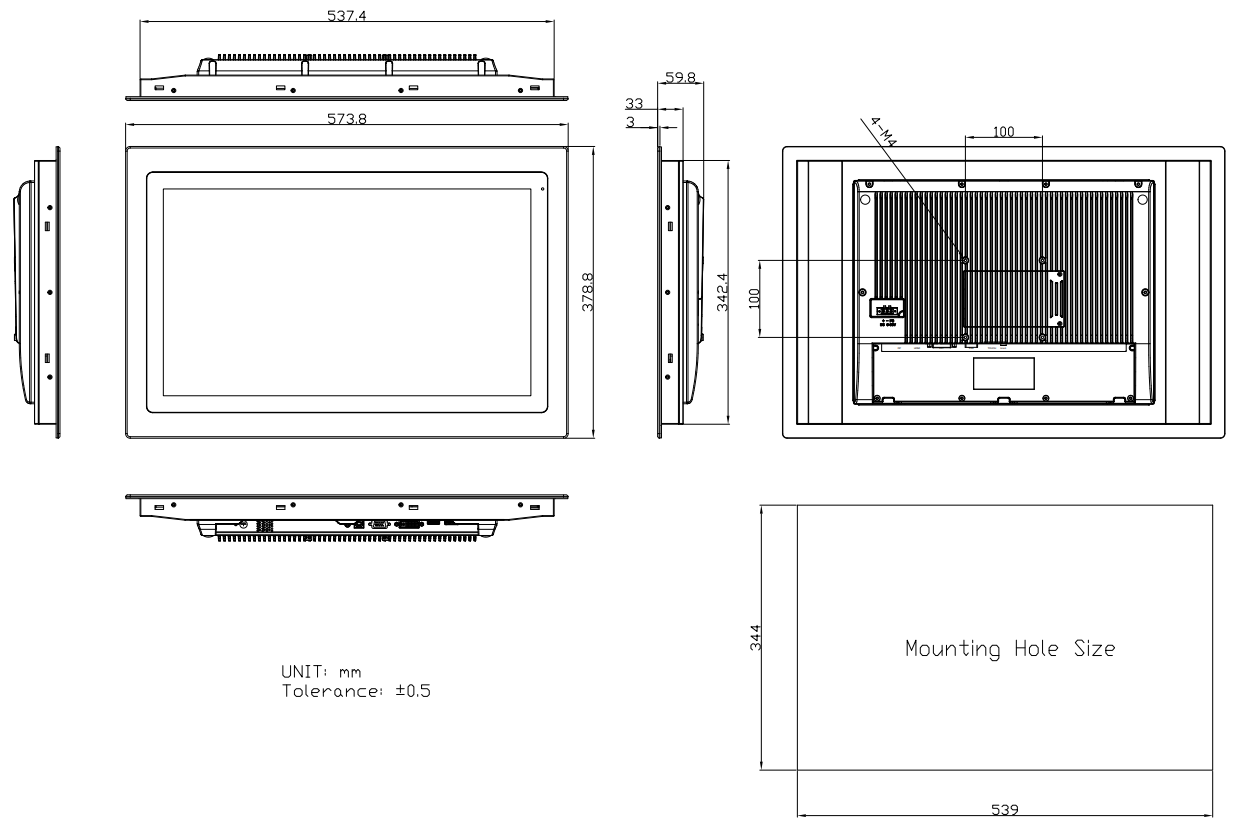

Mechanical
| Construction | 304 Stainless steel front bezel (316 option) Aluminium die-cast chassis |
| Mounting | Panel Mount, VESA Mount 100 x 100 |
| IP Rating | Front Panel IP66/IP69K |
| Net Weight | 8.5kg |
Environmental
| Operating Temperature | 0~50°C/-20~60°C option |
| Certificate | CE/FCC Class A |
