FABS-8XX
FABS-8XX
video thumb
video thumb
video thumb
video thumb
, ,

FABS-807B/P

These 7″ lightweight stainless-steel, front IP66/IP69K panel PCs employ the Intel Celeron J6412 CPU, and can be panel or VESA mounted for a sleek built-in feel. Perfect for the food and beverage industry.

Quick Spec

Display Size

7"

Processor

Intel Celeron J6412

RAM

4GB – 8GB

IP Rating

Front IP66/IP69K

Touchscreen

Projected Capacitive

OS Support

Windows 10 Pro/IoT, Linux, Ubuntu

Mounting Type

Panel/VESA

Need Help? Contact Us


01462 374102

[email protected]
  • 7” Industrial Compact Size Panel PC
  • Stainless-Steel Bezel
  • Flat Front Panel Touch Screen and Fanless Design
  • DC 9~36V Wide-Ranging Power Input
  • Intel Celeron J6412 CPU built-in
  • Up to 8GB RAM
  • IP66/IP69K Compliant Front Panel

FABS-807B

System
CPU Onboard Intel Celeron J6412 Processor
Memory Onboard 4GB DDR3L SDRAM
I/O Port
USB 2 x USB 3.0 type A
Serial/Parallel
  • 1 x DB-9 RS-232/422/485, COM1 (default RS-232)
  • 1 x RS-232 DB-9 (COM2)
Audio 1 x Audio Line Out
LAN 2 x GbE LAN RJ-45
Power Connector
  • 1 x 3-pin for DC power input terminal
  • 1 x 2-pin connector for power on/off button
Storage
HDD 1 x MO-297 SATA SSD bay
Others 1 x internal SD slot onboard
Expansion
Expansion slot 1 x Internal Mini-PCIe slot full size
Display based on standard display, high brightness option see datasheet
Display Type 7″ TFT-LCD
Max. Resolution 800 x 480
Touch Screen
Type Projected Capacitive / Glass
Light Transmission (%) over 90%
Power
Power Input DC 9~36V

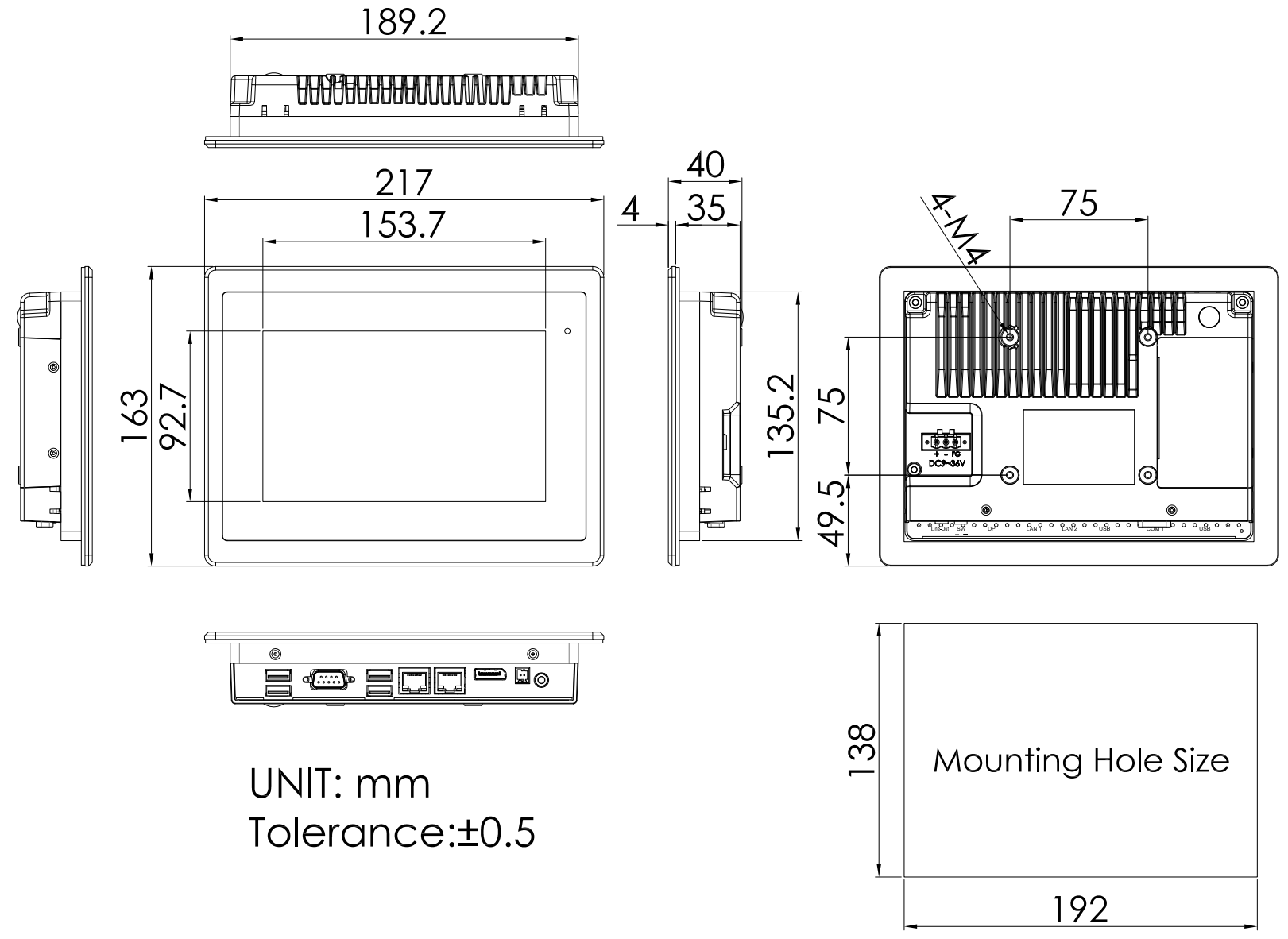

Mechanical
Construction 304 Stainless steel front bezel (316 option) Aluminium die-cast chassis
Mounting Panel Mount, VESA Mount 75 x 75
IP Rating Front Panel IP66/IP69K
Net Weight 1.6kg
Environmental
Operating Temperature 0~50°C/-20~60°C (option)
Certificate CE/FCC Class A/EN 1672-2
Operating System Support Windows 10 Pro/IoT, Linux, Ubuntu

Mounting-a-Panel-PC.pdf
