- 10.1” Industrial Compact Size Panel PC
- Stainless-Steel Bezel
- Flat Front Panel Touch Screen and Fanless Design
- DC 9~36V Wide-Ranging Power Input
- Intel Celeron J6412 CPU built-in
- Up to 8GB RAM
- IP66/IP69K Compliant Front Panel
Front IP rated Panel PCs, Industrial, Panel PCs
FABS-810B/P
These 10.1″ lightweight stainless-steel, front IP66/IP69K panel PCs employ the Intel Celeron J6412 CPU, and can be panel or VESA mounted for a sleek built-in feel. Perfect for the food and beverage industry.
Quick Spec
| Display Size | 10.1" |
|---|---|
| Processor | Intel Celeron J6412 |
| RAM | 4GB – 8GB |
| IP Rating | Front IP66/IP69K |
| Touchscreen | Projected Capacitive |
| OS Support | Windows 10 Pro/IoT, Linux, Ubuntu |
| Mounting Type | Panel/VESA |
System
| CPU | Onboard Intel Celeron J6412 Processor |
| Memory | Onboard 4GB DDR3L SDRAM |
I/O Port
| USB | 2 x USB 3.0 type A |
| Serial/Parallel |
|
| Audio | 1 x Audio Line Out |
| LAN | 2 x GbE LAN RJ-45 |
| Power Connector |
|
Storage
| HDD | 1 x 2.5″ SATA3 HDD bay for SATA SSD (Easy Accessible) |
| Others | 1 x internal SD slot onboard |
Expansion
| Expansion slot | 1 x Internal Mini-PCIe slot full size |
| Display | based on standard display, high brightness option see datasheet |
| Display Type | 10.1″ TFT-LCD |
| Max. Resolution | 1280 x 800 |
Touch Screen
| Type | Projected Capacitive / Glass |
| Light Transmission (%) | over 90% |
Power
| Power Input | DC 9~36V |

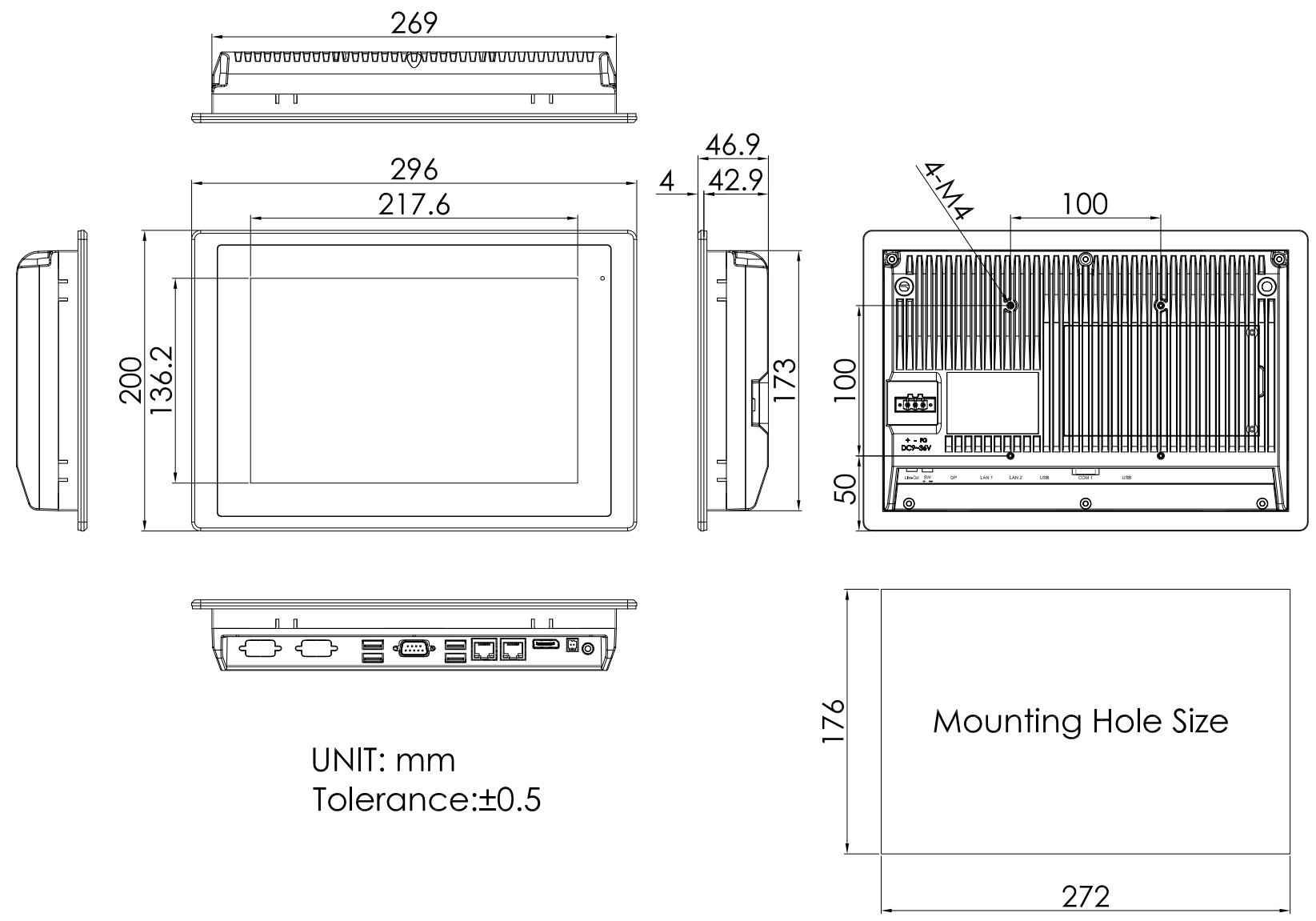

Mechanical
| Construction | 304 Stainless steel front bezel (316 option) Aluminium die-cast chassis |
| Mounting | Panel Mount, VESA Mount 75 x 75 |
| IP Rating | Front Panel IP66/IP69K |
| Net Weight | 2.5kg |
Environmental
| Operating Temperature | 0~50°C/-20~60°C (option) |
| Certificate | CE/FCC Class A/EN 1672-2 |
| Operating System Support | Windows 10 Pro/IoT, Linux, Ubuntu |
