FABS-916B/P

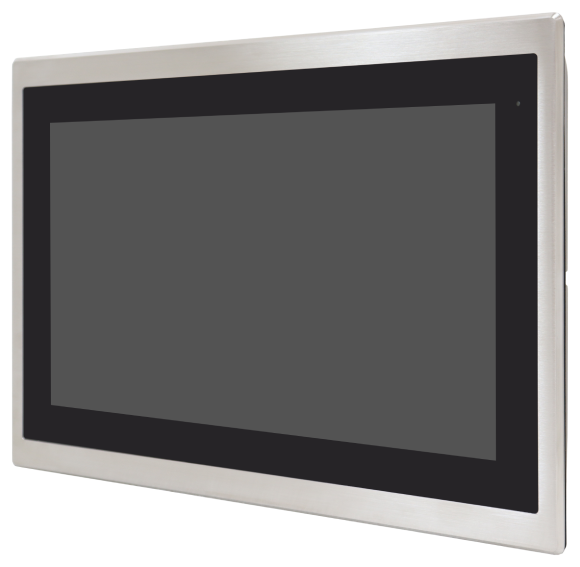

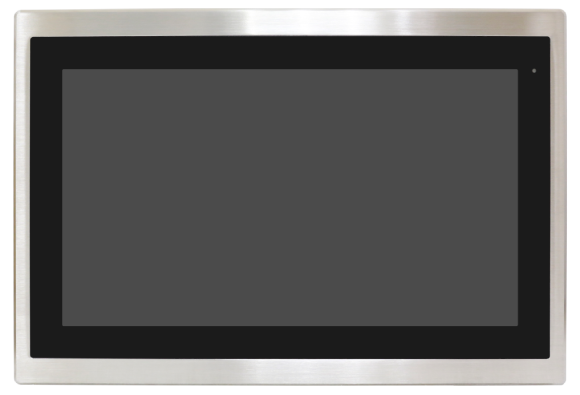

These 15.6″ lightweight stainless-steel, front IP66/IP69K panel PCs employ the Intel Core i5 8365UE CPU, and can be panel or VESA mounted for a sleek built-in feel. Perfect for the food and beverage industry.

Categories: Front IP rated Panel PCs, Industrial, Panel PCs

Quick Spec

Display Size	15.6"
Processor	Intel Core i5 8365UE
RAM	4GB – 32GB
IP Rating	Front IP66/IP69K
Touchscreen	Projected Capacitive
OS Support	Windows 10 Pro/IoT, Linux, Ubuntu
Mounting Type	Panel/VESA

Datasheet

FABS-916BPRH_V1.pdf

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
[email protected]

15.6” Industrial Compact Size Panel PC
Stainless-Steel Bezel
Flat Front Panel Touch Screen and Fanless Design
DC 9~36V Wide-Ranging Power Input
Intel Core i5 8365UE CPU built-in
Up to 32GB RAM
IP66/IP69K Compliant Front Panel
Supports TPM2.0 Hardware Security

System

CPU	Onboard Intel Core i5 8365UE Processor
Memory	Up to 32GB
TPM	TPM 2.0

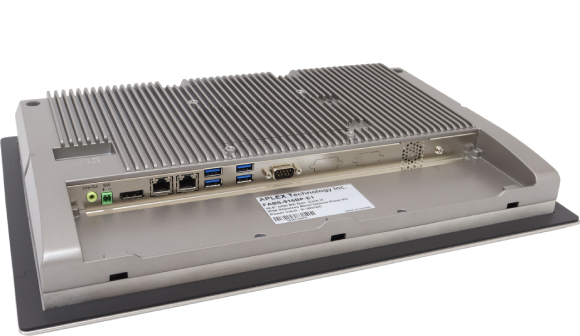

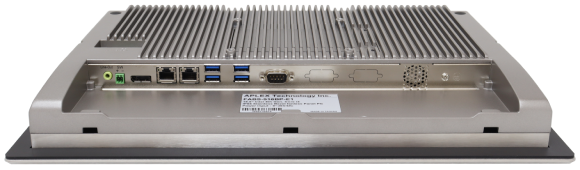

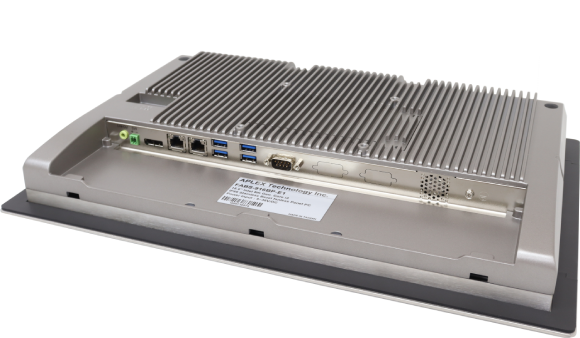

I/O Port

USB	4 x USB 3.0 type A
Serial/Parallel	1 x DB-9 connector, including: 1 x RS-232(RTS, Rx, Tx, CTS), pin1 RTS/5V/12V selectable via jumper (COM1) default x RS-232(Tx, Rx)/422/485(COM2) optional
Audio	1 x Audio Line Out
DP	1 x DP Port
LAN	2 x GbE LAN RJ-45
Power Connector	1 x 3-pin for DC power input terminal 1 x 2-pin connector for power on/off button
Option	COM port Y cable (for 1 x RS-232(Tx, Rx)/422/485(COM2)) 4G LTE WiFi 4/5/6+ BT 4 x USB 2.0 type A (TB-528U4) 4 x USB 2.0 type A + 1 x Mini-PCIe + 1 x SIM slot (TB-528U4ME1) AB50 2 x COM (RS-232) (TB-528C2) 1 x COM (RS-232) + 2 x USB 2.0 (TB-528C1U2) 1 x COM (RS-232) + 2 x USB 2.0 + 1 x Mini-PCIe + 1 x Power Button (TB-528C1U2P1) 2 x COM (RS-232) + 1 x Mini-PCIe slot + 1 x SIM slot (TB-528C2ME1) 2 x COM (RS-422/485, isolated) (TB-528C2I) 2 x CAN (TB-528CAN2) 1 x LAN + 2 x USB 2.0 type A (TB-528E1U2) 1 x LAN + 2 x USB 2.0 type A /45WPoE (TB528E1U2UPOE)* Backup Battery 21W/10.8W/1.95Ah(3S1P) (TB-528 Series or backup battery only be inserted in either one)

Storage

1 x M.2 M Key slot; (Support PCIe/SATA 2242/2280, Default 2242)

Expansion

Expansion slot	1 x Internal Mini-PCIe slot full size 1 x Nano SIM card holder
Display	based on standard display, high brightness option see datasheet
Display Type	15.6″ TFT-LCD
Max. Resolution	1366 x 768 (1920 x 1080 option)

Touch Screen

Type	Projected Capacitive / Resistive
Light Transmission (%)	Projected Capacitive Touch: 90% Resistive Touch: 80%

Power

Power Input

DC 9~36V

Mechanical

Construction	304 Stainless steel front bezel (316 option) Aluminium die-cast chassis
Mounting	Panel Mount, VESA Mount 100 x 100
IP Rating	Front Panel IP66/IP69K
Net Weight	5.4kg

Environmental

Operating Temperature	0~50°C/-20~60°C (option)
Certificate	CE/FCC Class A
Operating System Support	Windows 10 Pro/IoT, Linux, Ubuntu
