FABS-921B/P

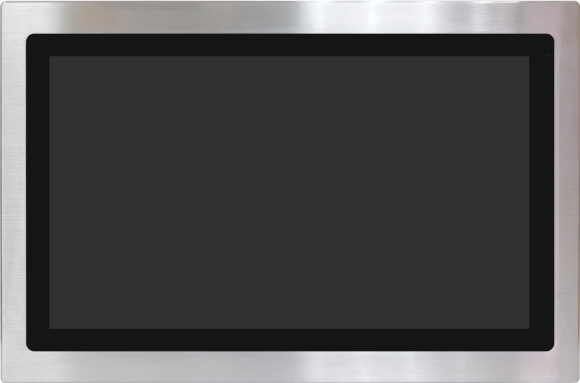

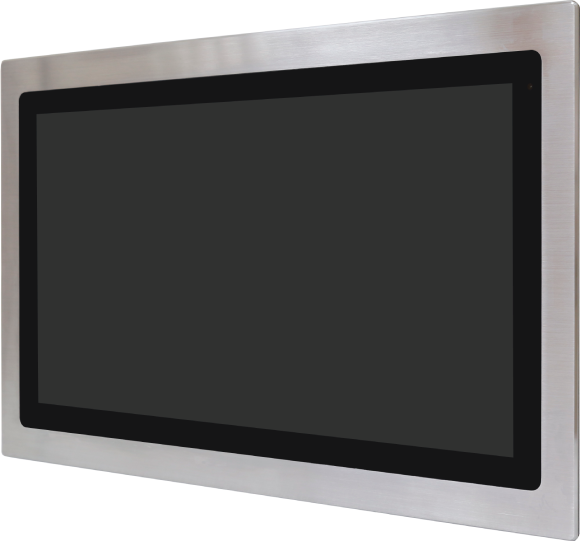

These 21.5″ lightweight stainless-steel, front IP66/IP69K panel PCs employ the Intel Core i5 8365UE CPU, and can be panel or VESA mounted for a sleek built-in feel. Perfect for the food and beverage industry.

Quick Spec

Display Size

21.5"

Processor

Intel Core i5 8365UE

RAM

4GB – 32GB

IP Rating

Front IP66/IP69K

Touchscreen

Projected Capacitive

OS Support

Windows 10 Pro/IoT, Linux, Ubuntu

Mounting Type

Panel/VESA

Need Help? Contact Us


01462 374102

[email protected]
  • 21.5” Industrial Compact Size Panel PC
  • Stainless-Steel Bezel
  • Flat Front Panel Touch Screen and Fanless Design
  • DC 9~36V Wide-Ranging Power Input
  • Intel Core i5 8365UE CPU built-in
  • Up to 32GB RAM
  • IP66/IP69K Compliant Front Panel
  • Supports TPM2.0 Hardware Security

FABS-921B

System
CPU Onboard Intel Core i5 8365UE Processor
Memory Up to 32GB
TPM TPM 2.0

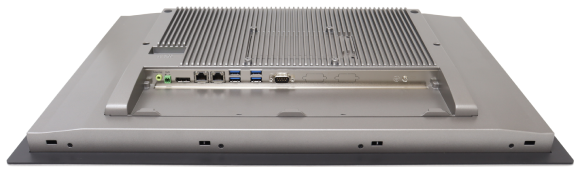

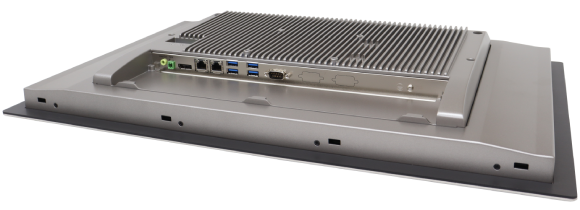

I/O Port
USB 4 x USB 3.0 type A
Serial/Parallel
  • 1 x DB-9 connector, including:
  • 1 x RS-232(RTS, Rx, Tx, CTS), pin1 RTS/5V/12V selectable via jumper (COM1) default
  • x RS-232(Tx, Rx)/422/485(COM2) optional
Audio 1 x Audio Line Out
DP 1 x DP Port
LAN 2 x GbE LAN RJ-45
Power Connector
  • 1 x 3-pin for DC power input terminal
  • 1 x 2-pin connector for power on/off button
Option
  • COM port Y cable (for 1 x RS-232(Tx, Rx)/422/485(COM2))
  • 4G LTE
  • WiFi 4/5/6+ BT
  • 4 x USB 2.0 type A (TB-528U4)
  • 4 x USB 2.0 type A + 1 x Mini-PCIe + 1 x SIM slot (TB-528U4ME1) AB50
  • 2 x COM (RS-232) (TB-528C2)
  • 1 x COM (RS-232) + 2 x USB 2.0 (TB-528C1U2)
  • 1 x COM (RS-232) + 2 x USB 2.0 + 1 x Mini-PCIe + 1 x Power Button (TB-528C1U2P1)
  • 2 x COM (RS-232) + 1 x Mini-PCIe slot + 1 x SIM slot (TB-528C2ME1)
  • 2 x COM (RS-422/485, isolated) (TB-528C2I)
  • 2 x CAN (TB-528CAN2)
  • 1 x LAN + 2 x USB 2.0 type A (TB-528E1U2)
  • 1 x LAN + 2 x USB 2.0 type A /45WPoE (TB528E1U2UPOE)*
  • Backup Battery 21W/10.8W/1.95Ah(3S1P) (TB-528 Series or backup battery only be inserted in either one)
Storage
Storage 1 x M.2 M Key slot; (Support PCIe/SATA 2242/2280, Default 2242)
Expansion
Expansion slot
  • 1 x Internal Mini-PCIe slot full size
  • 1 x Nano SIM card holder
Display based on standard display, high brightness option see datasheet
Display Type 21.5″ TFT-LCD
Max. Resolution 1920 x 1080
Touch Screen
Type Projected Capacitive / Resistive
Light Transmission (%)
  • Projected Capacitive Touch: 90%
  • Resistive Touch: 80%
Power
Power Input DC 9~36V
Mechanical
Construction 304 Stainless steel front bezel (316 option) Aluminium die-cast chassis
Mounting Panel Mount, VESA Mount 100 x 100
IP Rating Front Panel IP66/IP69K
Net Weight 7.5kg
Environmental
Operating Temperature 0~50°C/-20~60°C (option)
Certificate CE/FCC Class A
Operating System Support Windows 10 Pro/IoT, Linux, Ubuntu
