- 17″ Industrial Compact Size Panel PC
- Upto 32Gb RAM
- Flat Front Panel Touch Screen and Fanless Design
- Intel Celeron J6412
- Front IP65 Compliant Bezel
- Supports Windows 10-11
Front IP rated Panel PCs, Industrial, Panel PCs
GILA-17
These 17″ lightweight aluminium, front IP65 panel PCs employ the Intel J6412 and can be panel or VESA mounted for a sleek built-in feel. Perfect for indoor industrial environments.
Quick Spec
| Display Size | 17" |
|---|---|
| Processor | Intel Celeron J6412 |
| RAM | 4GB – 32GB |
| IP Rating | Front IP65 |
| Touchscreen | Resistive/Projected Capacitive |
| OS Support | Windows 10 – Windows 11 |
| Mounting Type | Panel/VESA |
System
| CPU | Intel Celeron J6412 |
| Memory | up to 32GB DDR4 3200MHz DDR4 |
I/O Port
| USB | 3x USB 3.0, 2 x USB 2.0 type A |
| Serial/Parallel |
|
| LAN | 2 x GbE LAN RJ-45 |
| Power Connector |
|
Storage
| 1 x M.2 2280 M Key |
Display – based on standard display, high brightness option see datasheet
| Display Type | 17″ TFT-LCD |
| Max. Resolution | 1280 x 1024 |
Touch Screen
| Type | Projected Capacitive / Resistive |
Power
| Power Input | DC 12 (Optional 9~36V) |
Mechanical
| Construction | Magnesium-Aluminum Alloy |

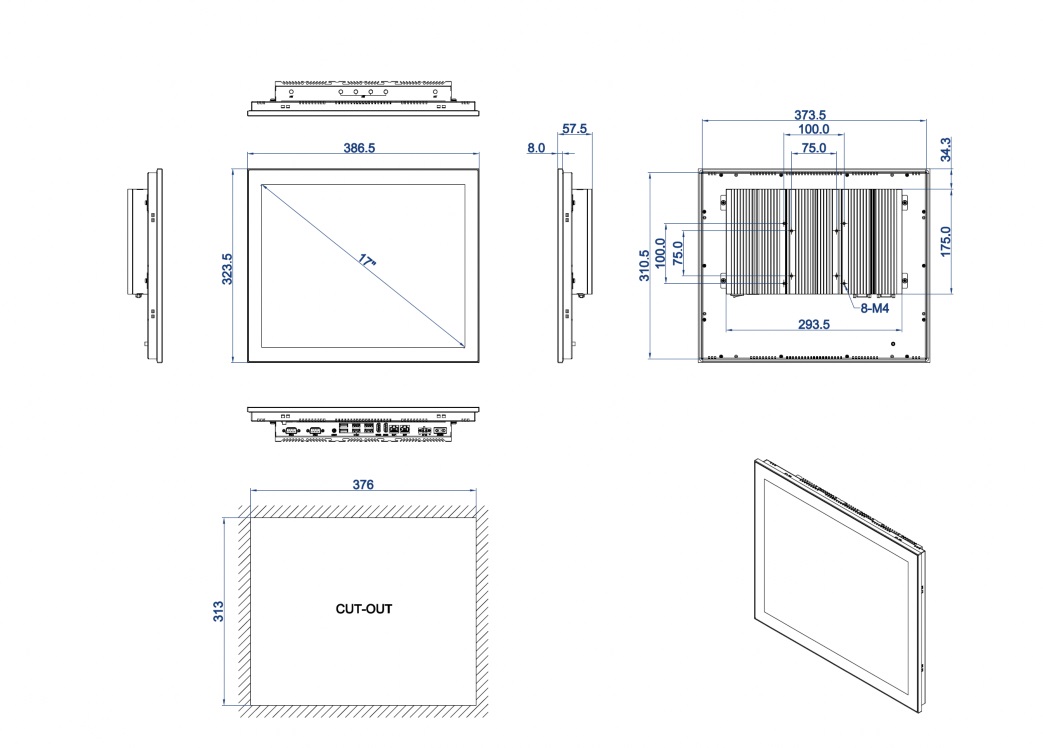

| Mounting | Panel Mount, VESA Mount 75 x 75/100 x 100 |
| IP Rating | IP65 Compliant Front Bezel |
| Net Weight | 4.7kg |
Environmental
| Operating Temperature | 0°C~50°C |
| Certificate | CE/FCC Class A |
| Operating System Support | Windows 10-11, Linux |
