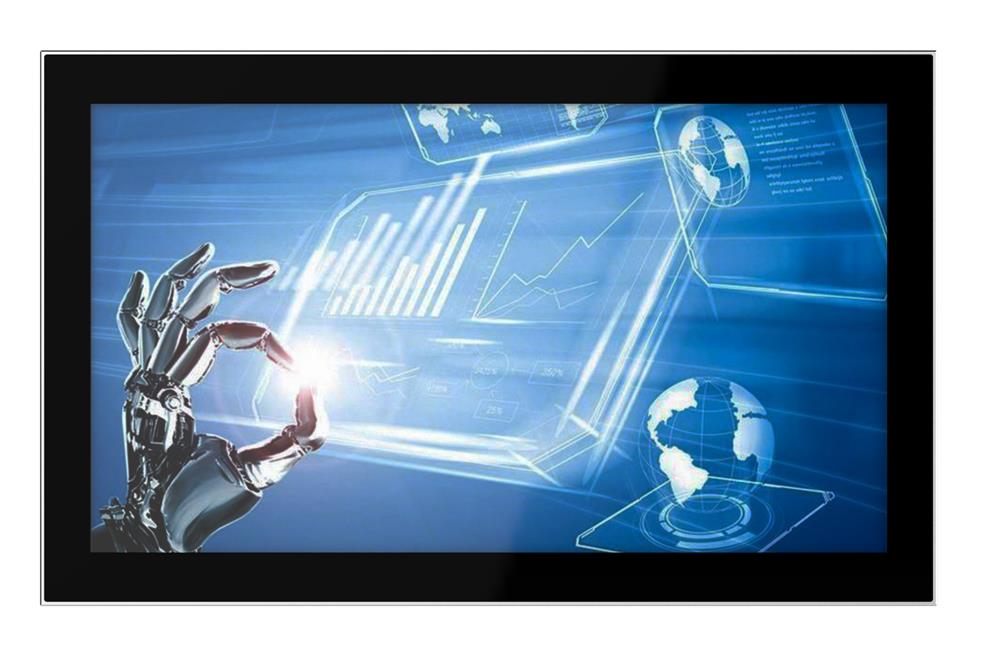

GILA-18.5

These 18.5″ lightweight aluminium, front IP65 panel PCs employ the Intel J6412 and can be panel or VESA mounted for a sleek built-in feel. Perfect for indoor industrial environments.

Categories: , ,

Quick Spec

Display Size

18.5''
Processor

Intel Celeron J6412
RAM

4GB – 32GB
IP Rating

Front IP65
Touchscreen

Resistive/Projected Capacitive
OS Support

Windows 10 – Windows 11
Mounting Type

Panel/VESA
Request a Quote Back to Product

Need Help? Contact Us


01462 374102
[email protected]
  • 18.5″ Industrial Compact Size Panel PC
  • Upto 32Gb RAM
  • Flat Front Panel Touch Screen and Fanless Design
  • Intel Celeron J6412
  • Front IP65 Compliant Bezel
  • Supports Windows 10-11

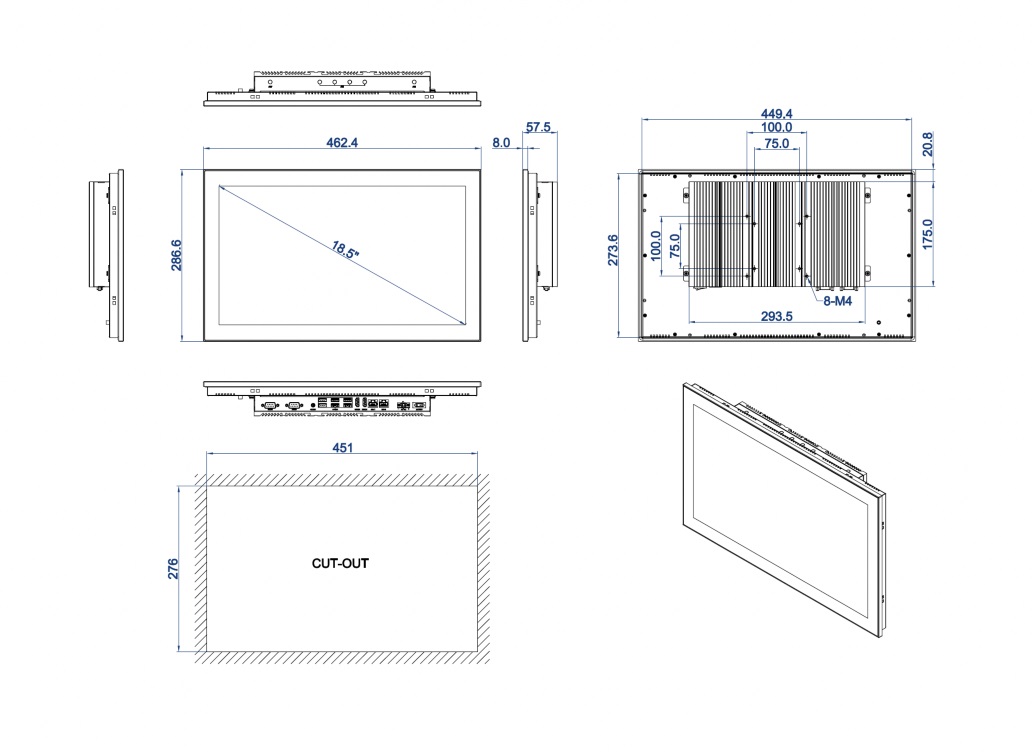

GILA Dimensions 18.5

System
CPU Intel Celeron J6412
Memory up to 32GB DDR4 3200MHz DDR4

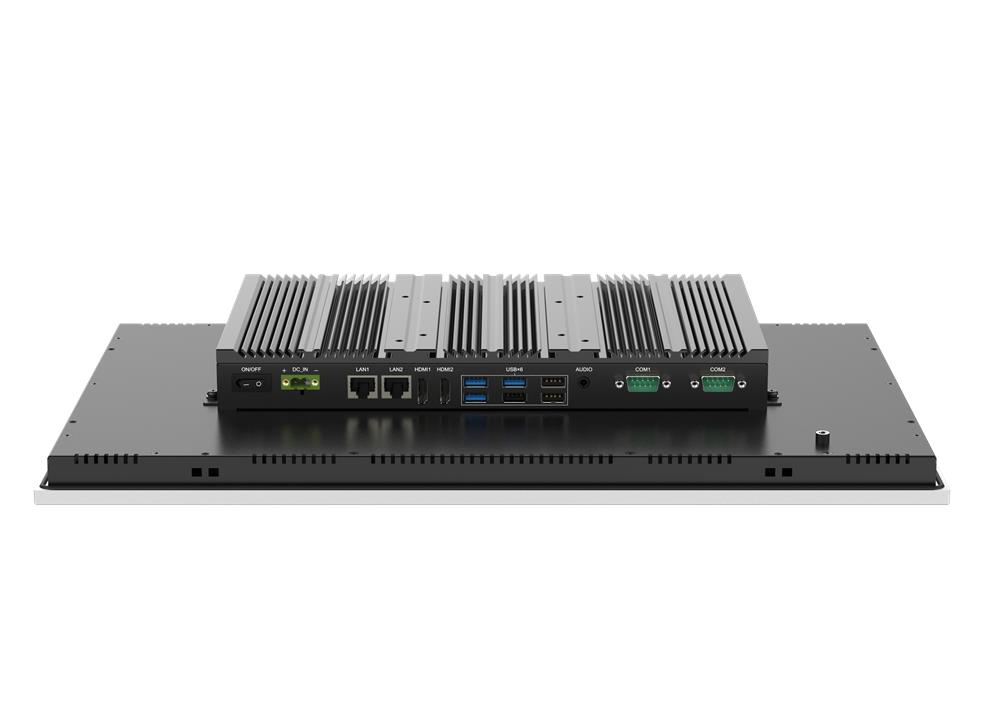

I/O Port
USB 3x USB 3.0, 2 x USB 2.0 type A
Serial/Parallel
  • 1 x DB-9 RS-232/422/485, COM1 (default RS-232)
LAN 2 x GbE LAN RJ-45
Power Connector
  • 1 x 2-pin for DC power input terminal
Storage
1 x M.2 2280 M Key
Display – based on standard display, high brightness option see datasheet
Display Type 18.5″ TFT-LCD
Max. Resolution 1366 x 768 (1920 x 1080 Optional)
Touch Screen
Type Projected Capacitive / Resistive
Power
Power Input DC 12 (Optional 9~36V)
Mechanical
Construction Magnesium-Aluminum Alloy
Mounting Panel Mount, VESA Mount 75 x 75/100 x 100
IP Rating IP65 Compliant Front Bezel
Net Weight 5.6kg
Environmental
Operating Temperature 0°C~50°C
Certificate CE/FCC Class A
Operating System Support Windows 10-11, Linux
