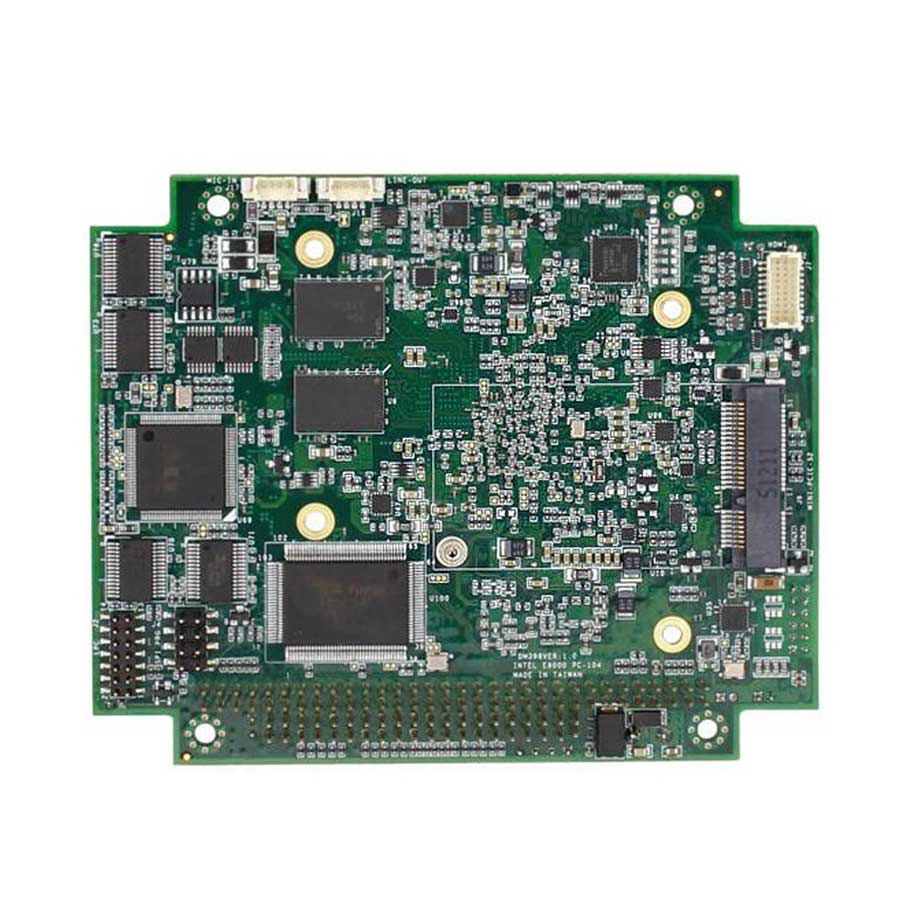

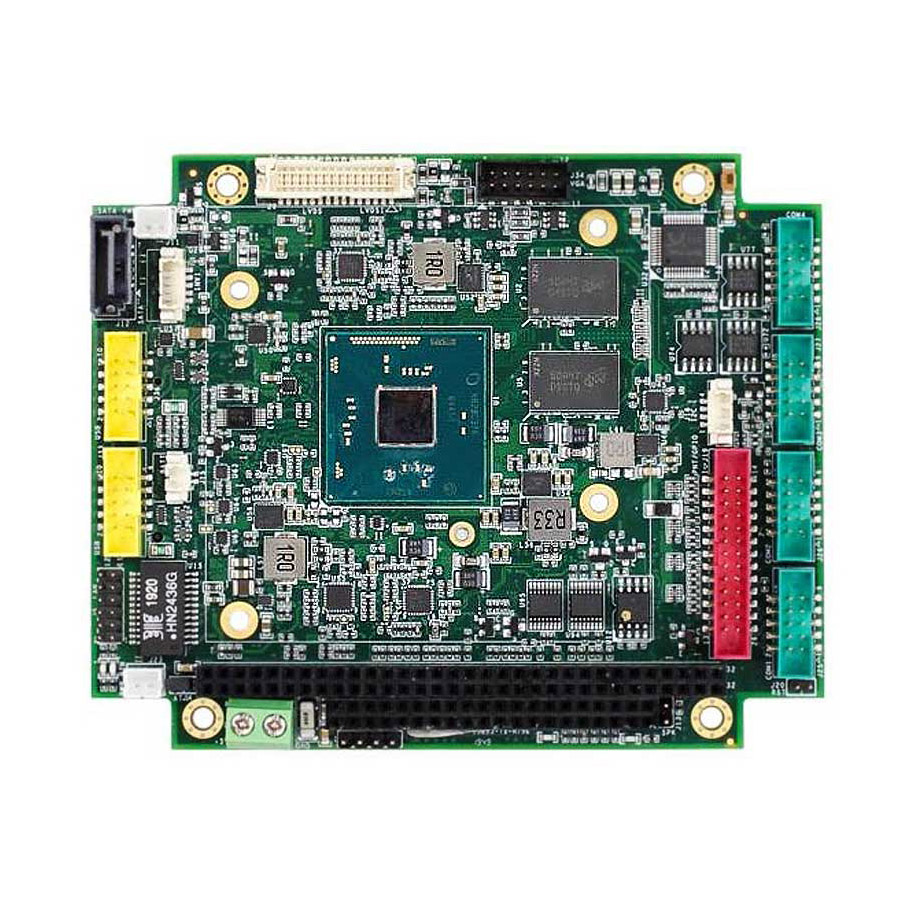

IBW-6954

This  PC/104 SBC is powered by 1.04GHz (2.0GHz Burst) Quad Core Intel x5-E8000 with 4Gb DDR3 RAM. The IBW-6954 specifically offers SATA DOM (mSATA optional), HDMI, VGA & LVDS connections. It is a great choice for legacy support as one of very few Windows 10 based PC/104 cards using an ISA Bus.

Quick Spec

Processor

Intel E8000

RAM

4GB

Slot card

ISA bus

OS Support

Windows 10 IoT

Need Help? Contact Us


01462 374102

[email protected]
  • Intel Atom X5-E8000 CPU
  • Supports 4GB DDR3L RAM
  • ISA Bus for Application support
  • Operating Temperature, Support 0°C~+55°C
  • 5V DC power
CPU Intel Atom x5-E800 Onboard
RAM 4GB DDR3L 1600
Bus ISA Bus x1
Display
VGA resolution up to 1920 x 1200 @ 60Hz
HDMI resolution up to 2560 x 1600 @ 60Hz, 24bpp
LVDS resolution up to 1920 x 1200 @ 60Hz, in dual LVDS bus mode
LAN Realtek GbE x 1
I/O Interface
  • COM x 4 (2 for RS232/422/485)
  • USB 2.0 x 4
  • Parallel/16-bit GPIO x1 (option)
Audio Line out/MIC in
Power Requirement 5VDC
Operating Temperature 0°C to +60°C (with airflow)
Dimensions 116mm x 96mm
O/S Support Windows 10

IBW-6954-E4_Datasheet.pdf
