- 21.5” Industrial Compact Size Panel PC
- Flat Front Panel Touch Screen and Fanless Design
- DC 9~36V Wide-Ranging Power Input
- Intel Core i3-1115G4 CPU built-in
- Up to 64GB RAM
- IP65 Compliant Front Panel
Front IP rated Panel PCs, Industrial, Panel PCs
Komodo-R/P-21.5-i3
These 21.5″ lightweight, front IP65 panel PCs employ the Intel i3-1115G4 CPU, and can be panel or VESA mounted for a sleek built-in feel. Perfect for industrial environments.
Quick Spec
| Display Size | 21.5" |
|---|---|
| Processor | Intel Core i3 1115G4 |
| RAM | 4GB – 64GB |
| IP Rating | Front IP65 |
| Touchscreen | Resistive/Projected Capacitive |
| OS Support | Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu |
| Mounting Type | Panel/VESA |
System
| CPU | Onboard Intel i3-1115G4 Processor |
| Memory | Memory – Up to 64GB |
| TPM | TPM 2.0 |

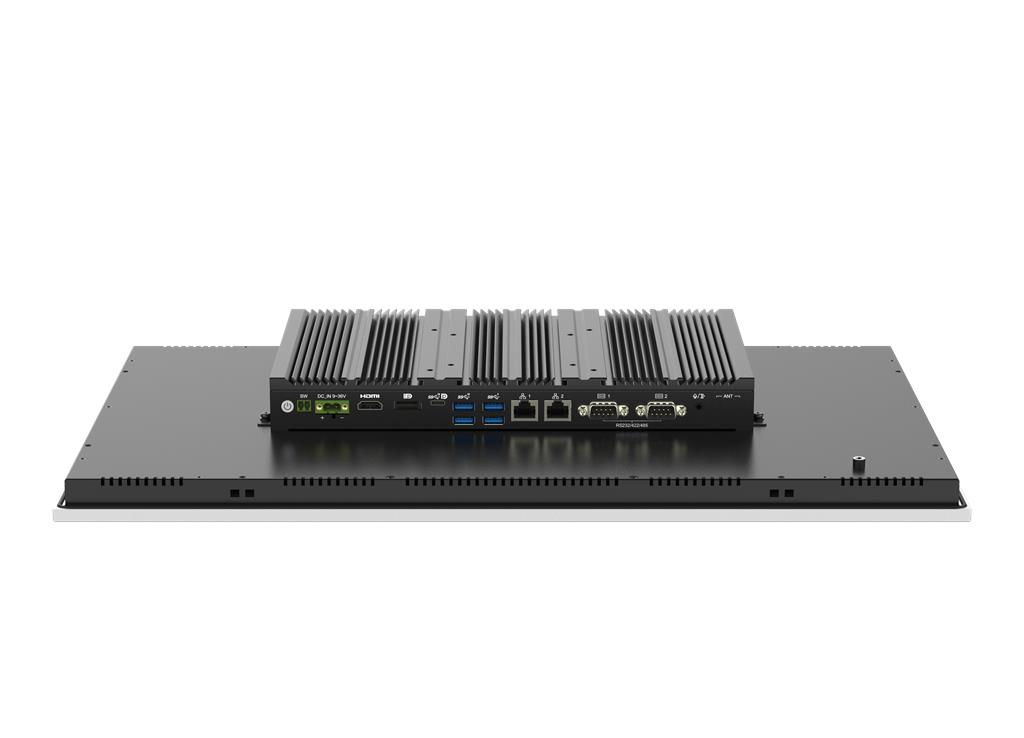

I/O Port
| USB | 2 x USB 3.1 type A, 2 x USB 3.0 type A |
| Serial/Parallel |
|
| Audio | 1 x Audio Line Out. 1 x Audio Mic In |
| LAN | 2 x GbE LAN RJ-45 |
| Power Connector |
|
| Option |
|
Storage
| HDD | 1 x m.2 2280 1 x 2.5″ SATA3 HDD bay for SATA HDD |
Expansion
| Onboard Expansion bus |
|
Display – based on standard display, high brightness option see datasheet
| Display Type | 21.5″ TFT-LCD |
| Max. Resolution | 1920 x 1080 |
Touch Screen
| Type | Projected Capacitive / Resistive |
| Light Transmission (%) |
|
Power
| Power Input | DC 9~36V |
Mechanical
| Construction | Aluminium-magnesium alloy |
| Mounting | Panel Mount, VESA Mount 75/100 |
| IP Rating | IP65 Compliant Front Bezel |
| Net Weight | 6.2kg |
Environmental
| Operating Temperature | -0~50°C |
| Certificate | CE/FCC Class A |
| Operating System Support | Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu |
