Industrial, Open Frame Panel PCs, Panel PCs

OPC-5128

These 12.1″ slim and fanless, open frame, front IP65 panel PCs, powered by the Intel Celeron N2930 CPU, are perfect for achieving a sleek flat front built-in feel.

Quick Spec

Display Size	12.1"
Processor	Intel Celeron N2930
RAM	4GB
IP Rating	Front IP65
Touchscreen	Projected Capacitive, Resistive
OS Support	Windows 10 Pro/IoT, Linux, Ubuntu
Mounting Type	Open Frame

Datasheet

OPC-5128_ds.pdf

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
[email protected]

12.1” Industrial Compact Size Panel PC
Open Frame with Fanless Design
DC 9~36V Wide-Ranging Power Input
Intel Celeron N2930 CPU built-in
4GB RAM
Front IP65 Compliant Panel

Specification

CPU	Onboard Intel Celeron N2930 Processor
Memory	Onboard 4GB DDR3L 1600MHz

I/O

USB	2 x USB 3.0 type A
Serial/Parallel	1 x DB-9 RS-232/422/485, COM1 (default RS-232) 1 x RS-232 DB-9, COM2
Audio	1 x Audio Line Out
LAN	2 x GbE LAN RJ-45
Power Connector	1 x 3-pin for DC power input terminal 1 x 2-pin connector for power on/off button
Option	2 x RS-232 DB-9 + 1 x Mini-PCIe slot via TB-528C2ME1 2 x CAN bus via TB-528CAN2 2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1 x RS-232 DB-9 + 1 x Power Button via TB-528C1U2P1 2 x USB 2.0 type A via TB-528U2

Storage

HDD	1 x 2.5″” SATA HDD bay for SATA HDD

Expansion

Expansion Slot

1 x Internal Mini-PCIe slot full size

Display

Display Type	12.1″” TFT-LCD
Max. Resolution	800 x 600 (1024 x 768 option)

Touch Screen

Type	Projected Capacitive / Resistive
Light Transmission (%)	Projected Capacitive Touch: over 90% Resistive Touch: over 80%

Power

Power Input

DC 9~36V

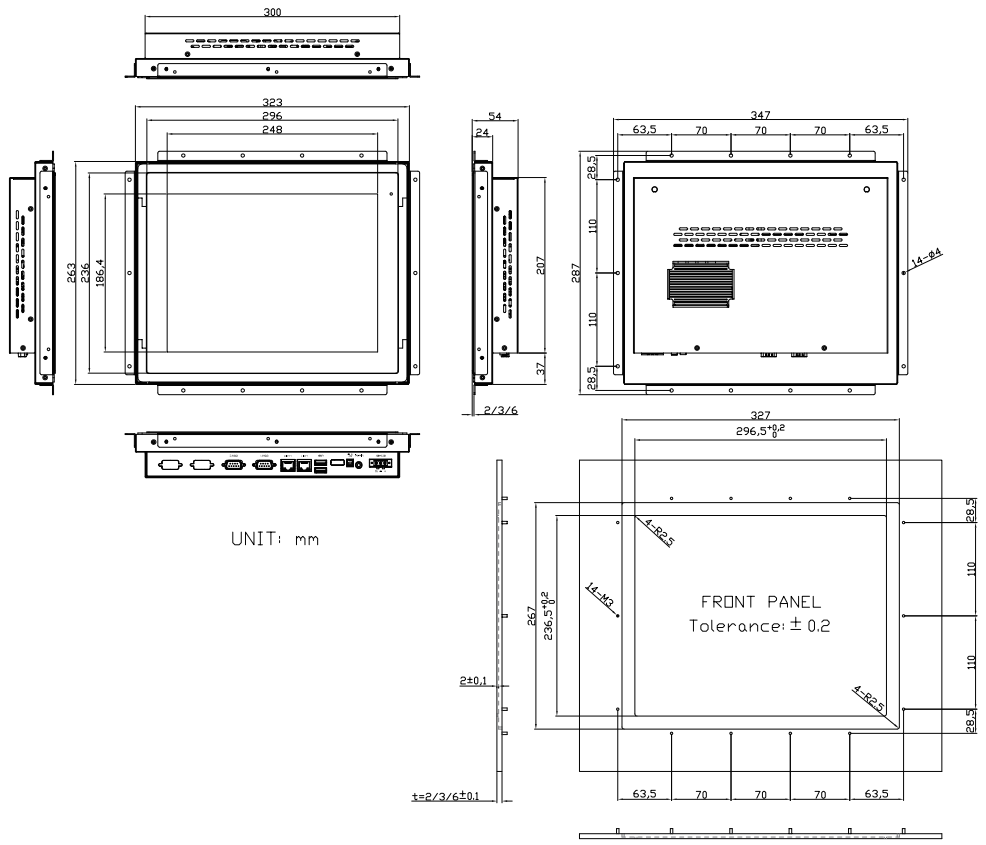

Mechanical

Power LED Light

Front Bezel

Flat Bezel Design(2mm, 3mm, 6mm)/Steel/Stainless Steel/Aluminum With System

Rear Bezel	Steel
IP Rating	IP65 Compliant Front Bezel
Net Weight	3.7kg

Environmental

Operating Temperature	0~40°C without fan/0~60°C with fan
Certificate	CE/FCC Class A
Operating System Support	Windows 10 Pro/IoT, Linux, Ubuntu
