- 12.1″ – 15.6″
- Intel Celeron
- Front IP65
- Open Frame
Industrial, Open Frame Panel PCs, Panel PCs
OPC Panel PC
$1.00

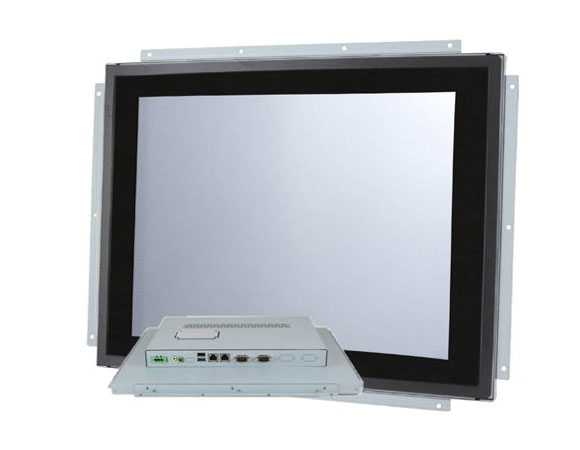

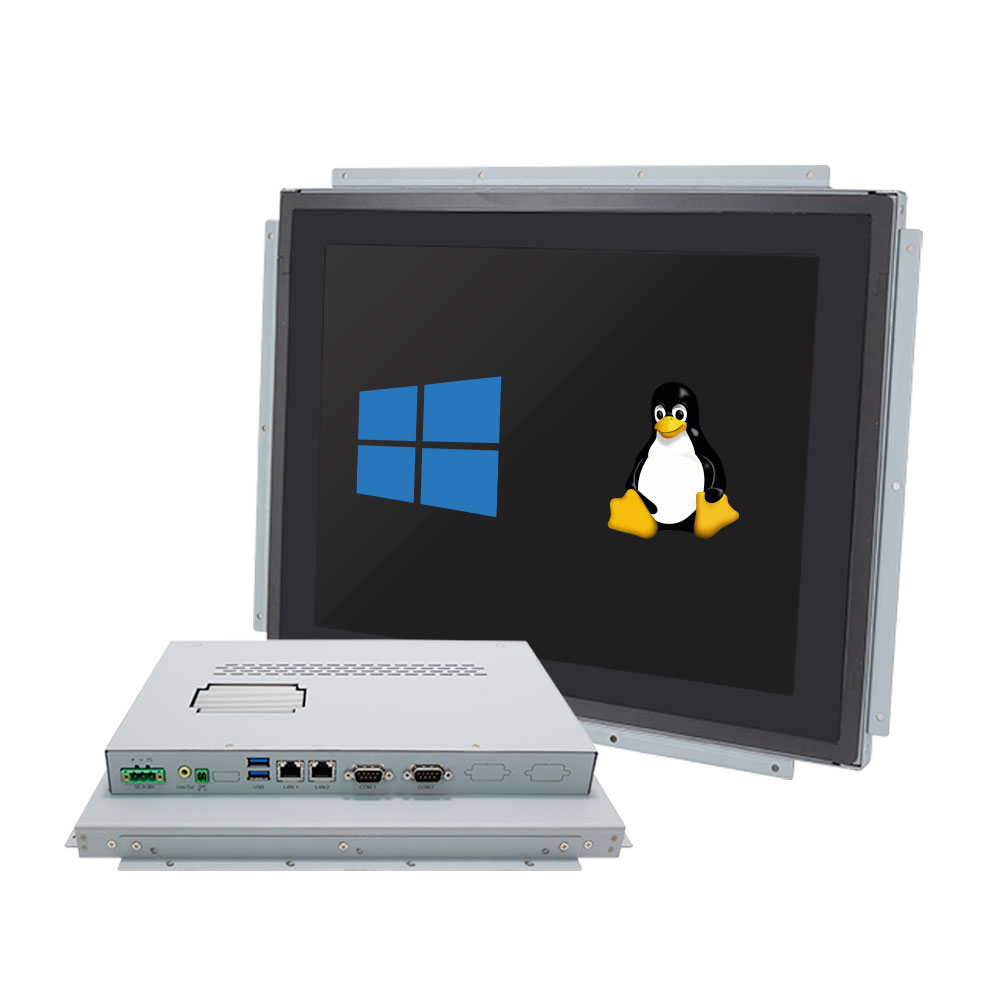

These slim and fanless, open frame, front IP65 panel PCs are perfect for achieving a sleek flat front built-in feel.
Related products
-
PHANTAM Panel PC
These thin, fully- enclosed, stainless steel, IP66 / IP69K rated panel PCs enable high...- 15.6″/21.5″
- Intel Core i3/Intel Core i5
- Fully IP66/IP69K
- VESA
?Premium Product
With the ability to customize with the I/O you require, the premium product range offers diecast aluminium and stainless steel Panel PCs and Displays with ip ratings up to ip66/69k. These products are the most robust industrial systems DSL have to offer.
ConfigureFully IP rated Panel PCsPHANTAM Panel PC
$1.00 Configure This product has multiple variants. The options may be chosen on the product page
Resolution & Aspect Ratio
The OPC range is available in a range of aspect ratios and resolutions to support the needs of new 16:9 and historic 4:3 applications. From 12”-15.6” screen sizes, we have something to suit every need. Constructed from sheet metal, these slim, front IP65 compliant systems are perfect for industrial environments. The OPC range is manufactured to the highest standards, with a focus on reliability and longevity. All systems are supplied with an AC/DC PSU but support 9-36v DC power input if a supply is already present.
I/O & Mounting
All sizes feature down facing USB, LAN, and serial connections at the back of the unit. Located on the I/O panel, there will also be a 2-pin connector to add a power button if required. There are multiple I/O expansion boards available to increase connectivity. The OPC is an open frame unit to allow for seamless integration and a sleek, built-in feel. The system is mounted from inside the panel so there is nothing protruding, giving it a flush finish.
Processor
These systems use an Intel N2930 Quad Core Celeron processor. The operating temperature for a passively cooled system is 0-40°C, or 0-60°C with a fan.
