- 17” Industrial Compact Size Industrial Display
- Standard 19″ Rackmount
- Flat Front Panel Touch Screen and Fanless Design
- DC 12v Power Input
- IP65 Compliant Front Panel
Front IP rated Industrial Displays, Industrial, Industrial Display
OTTER-17

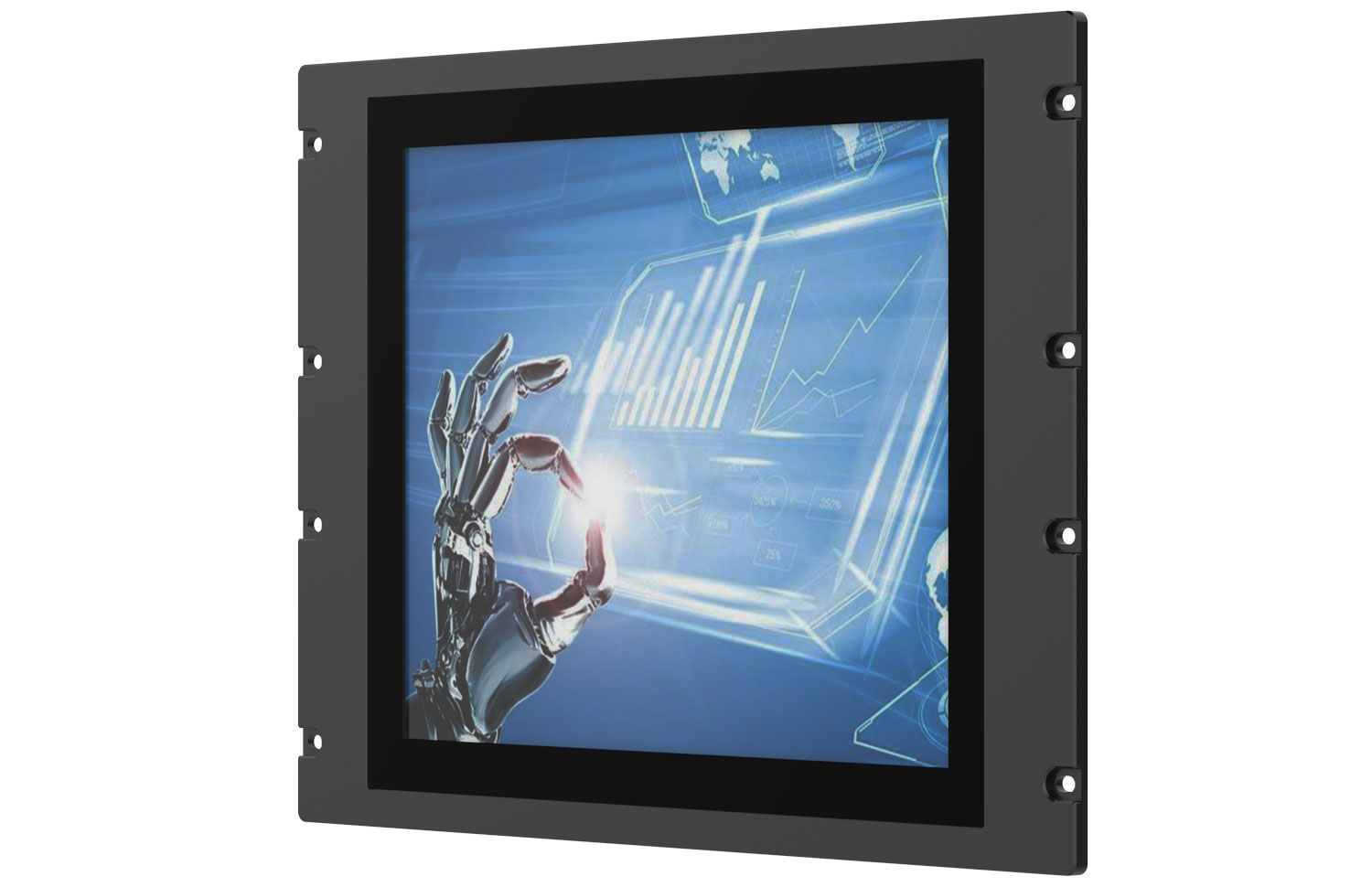

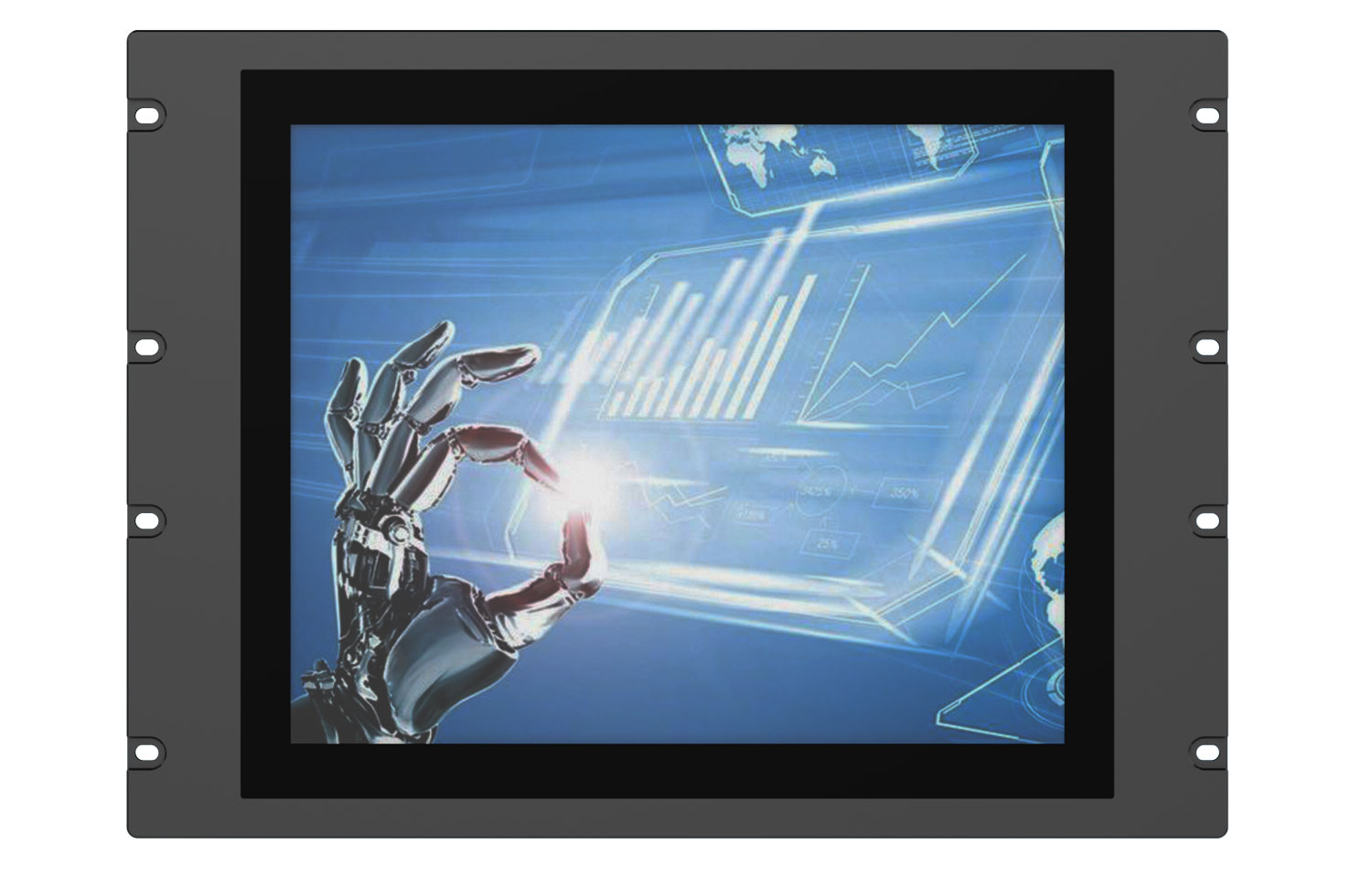

These 17″ lightweight rack mounted displays are available in both resistive and PCAP touch. Ideal for industrial enviroments where 19″ racks are required
Quick Spec
| Display Size | 17" |
|---|---|
| IP Rating | Front IP65 |
| Touchscreen | Projected Capacitive, Resistive |
| Mounting Type | Rack Mount/VESA |

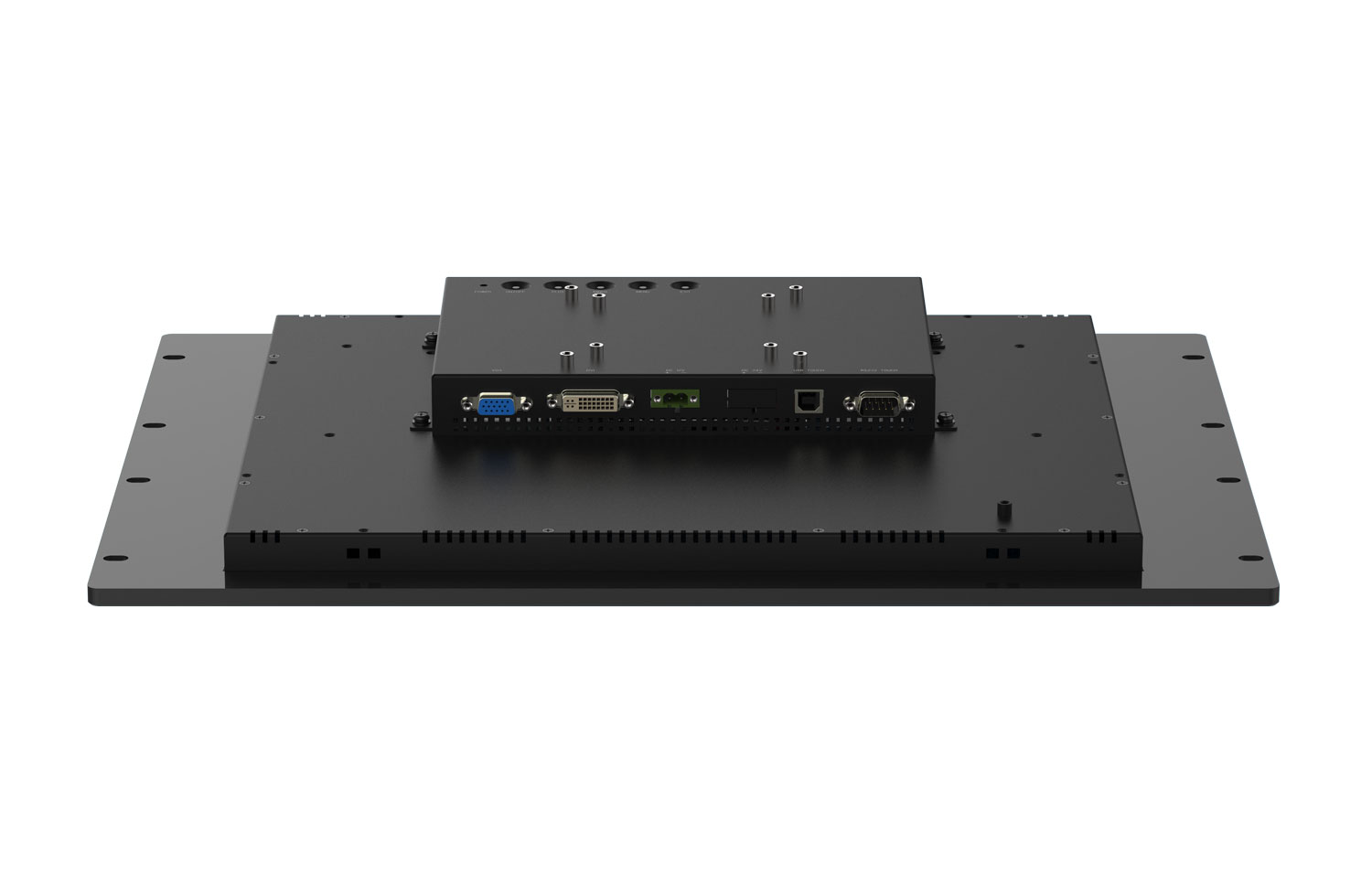

I/O Port
| VGA | 1 x VGA |
| DVI | 1 x DVI-D |
| Power | 1 x 12v DC (9~36V power input optional) |
| Others |
|
Display – based on standard display, high brightness option see datasheet
| Display Type | 17″ TFT-LCD |
| Max. Resolution | 1280 x 1024 |
Touch Screen
| Type | Projected Capacitive / Resistive |
| Interface |
|
Power
| Power Input | DC 9V |
Mechanical
| Construction | Aluminium Magnesium Alloy |

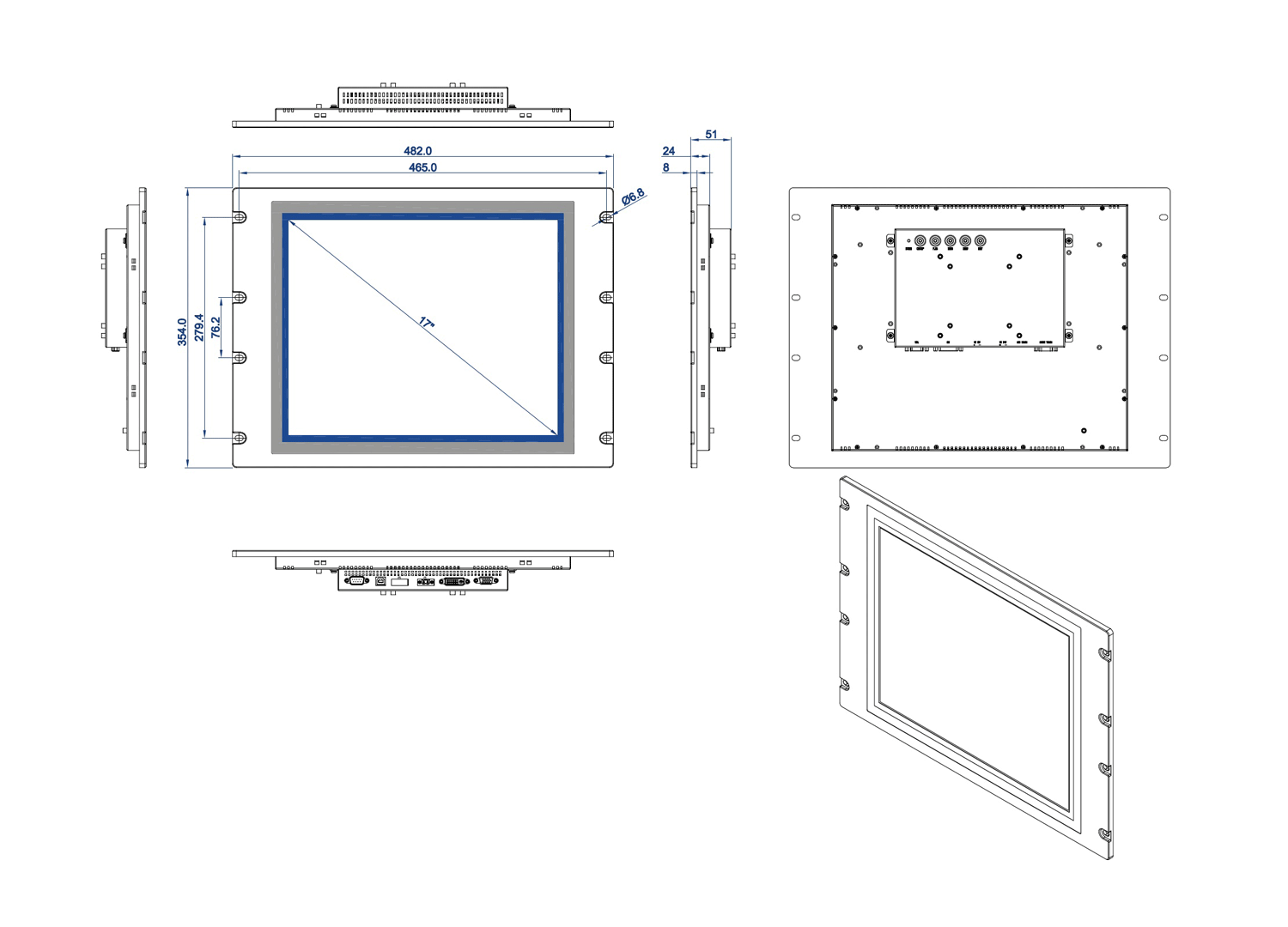

| Mounting | 19″ Rack Mount (8U Height), VESA Mount 100 x 100 |
| IP Rating | IP65 Compliant Front Bezel |
| Net Weight | 4.4kg |
Environmental
| Operating Temperature | -20~70°C |
| Certificate | CE/FCC Class A |
