- 10.1” Industrial Compact Size Panel PC
- Flat Front Panel Touch Screen and Fanless Design
- Power Input TBC
- Intel X7425E CPU built-in
- Up to 16GB RAM
- IP65 Compliant Front Panel
Front IP rated Panel PCs, Industrial, Panel PCs
PANTHER-10E

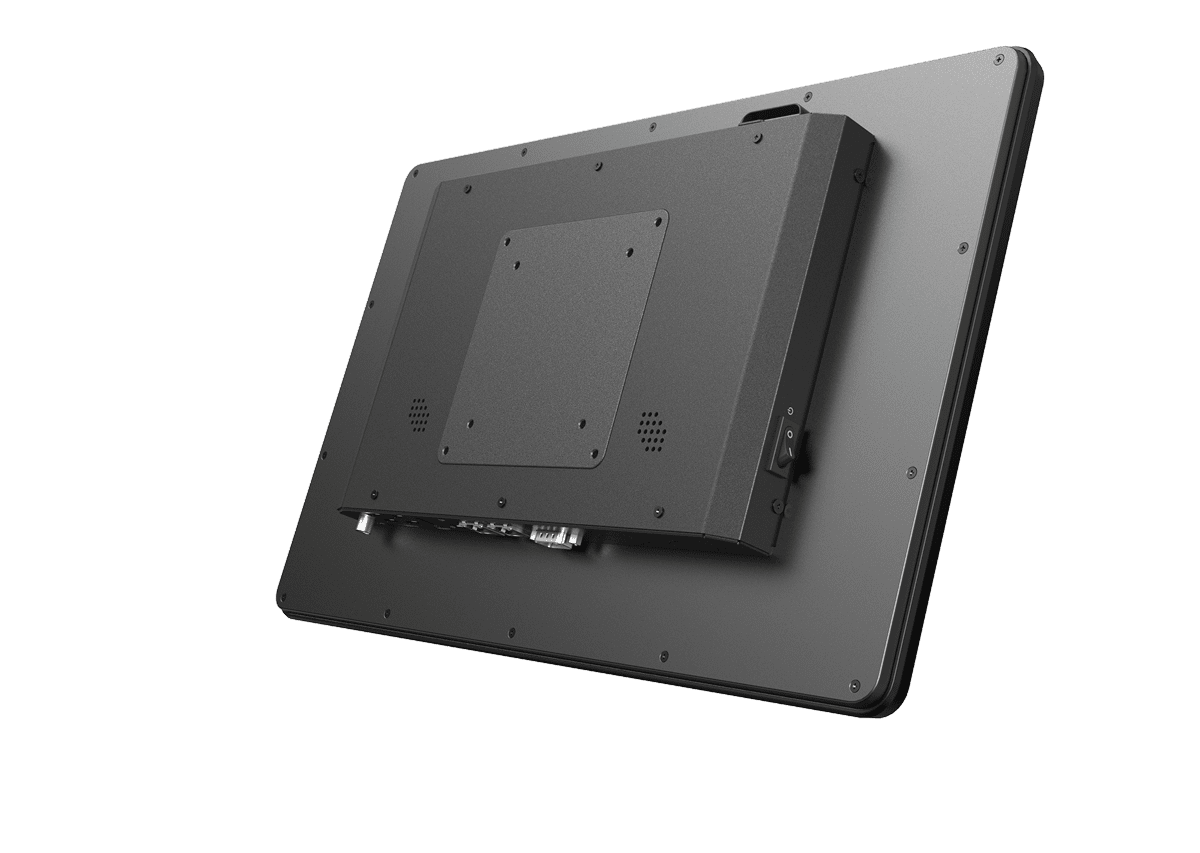

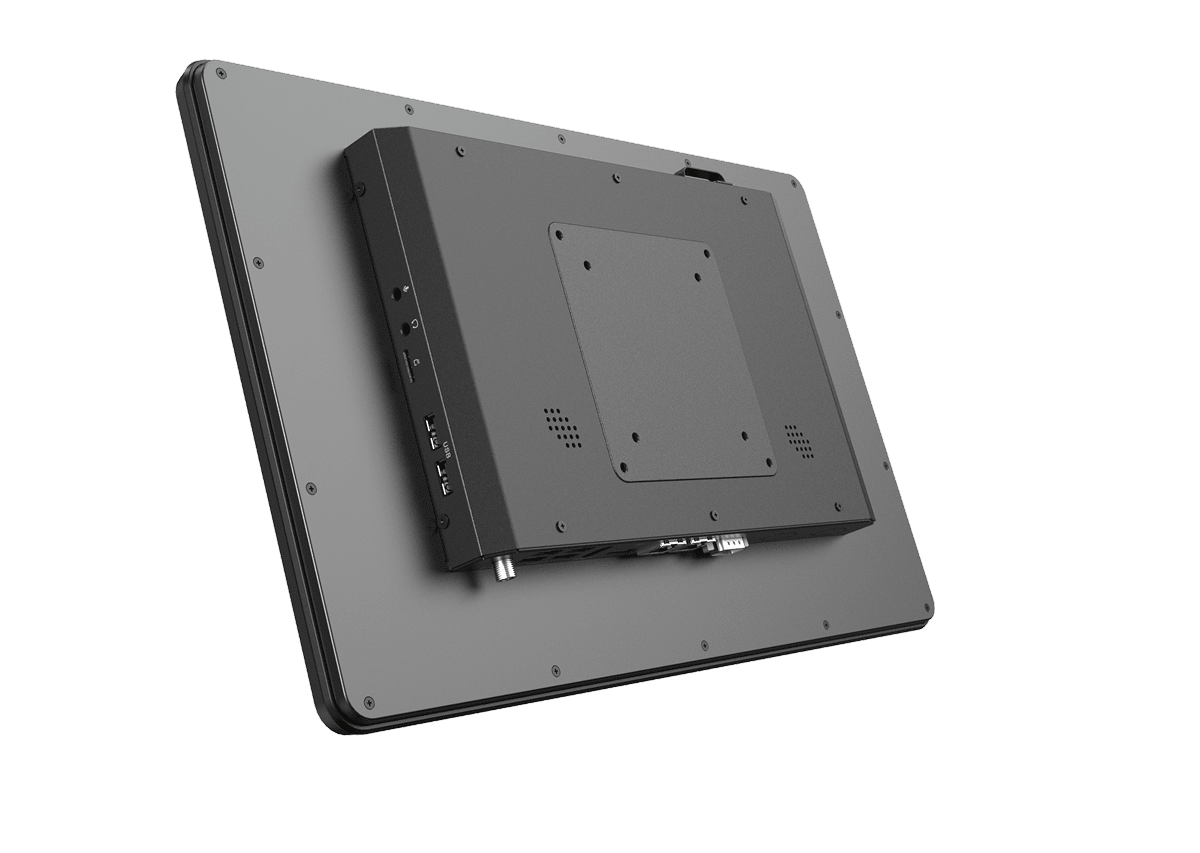

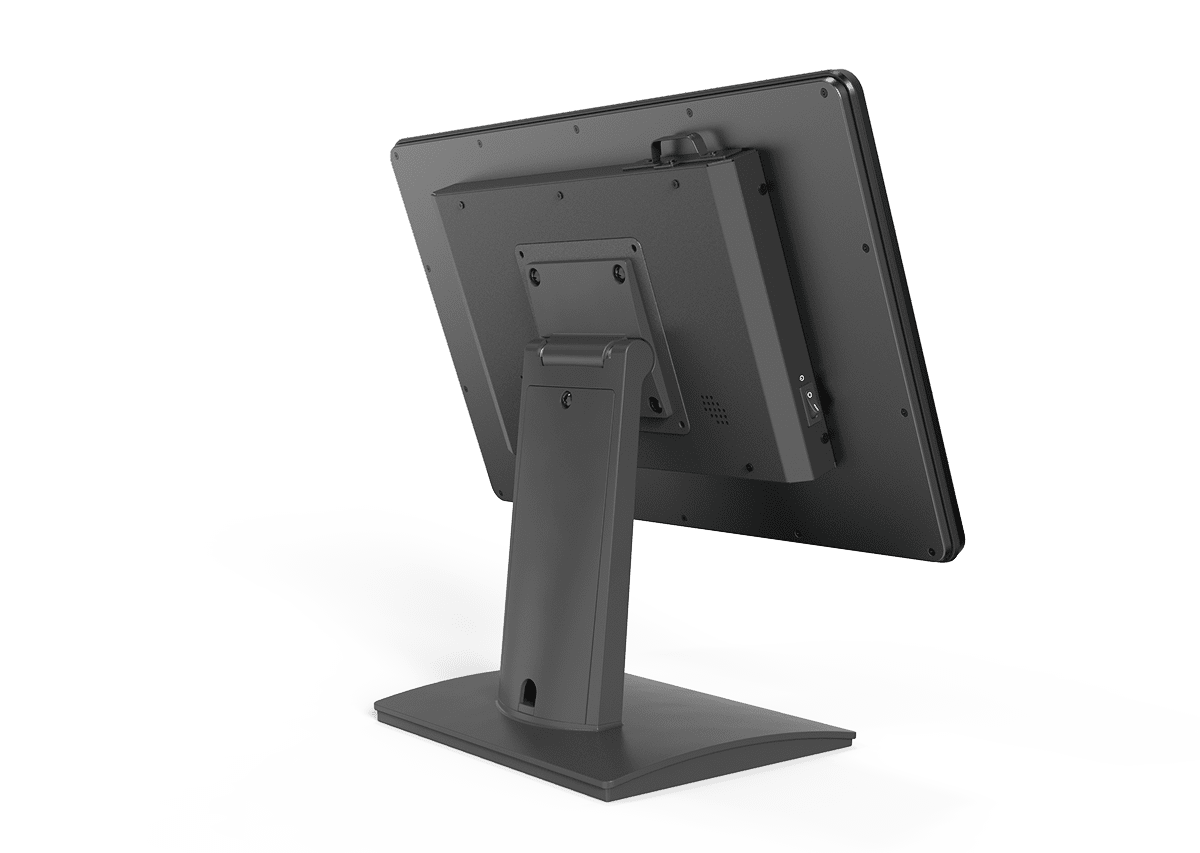

These 10.1″ lightweight aluminium, front IP65 panel PCs employ the Intel X7425E CPU, and can be panel or VESA mounted for a sleek built-in feel. Perfect for industrial environments.
Quick Spec
| Display Size | 10.1" |
|---|---|
| Processor | Intel X7425E |
| RAM | Up to 16GB |
| IP Rating | Front IP65 |
| Touchscreen | Projected Capacitive |
| OS Support | Windows 10 Pro/IoT, Linux, Ubuntu |
| Mounting Type | Panel/VESA |
System
| CPU | Onboard Intel X7425E Processor |
| Memory | Memory – Up to 16GB |

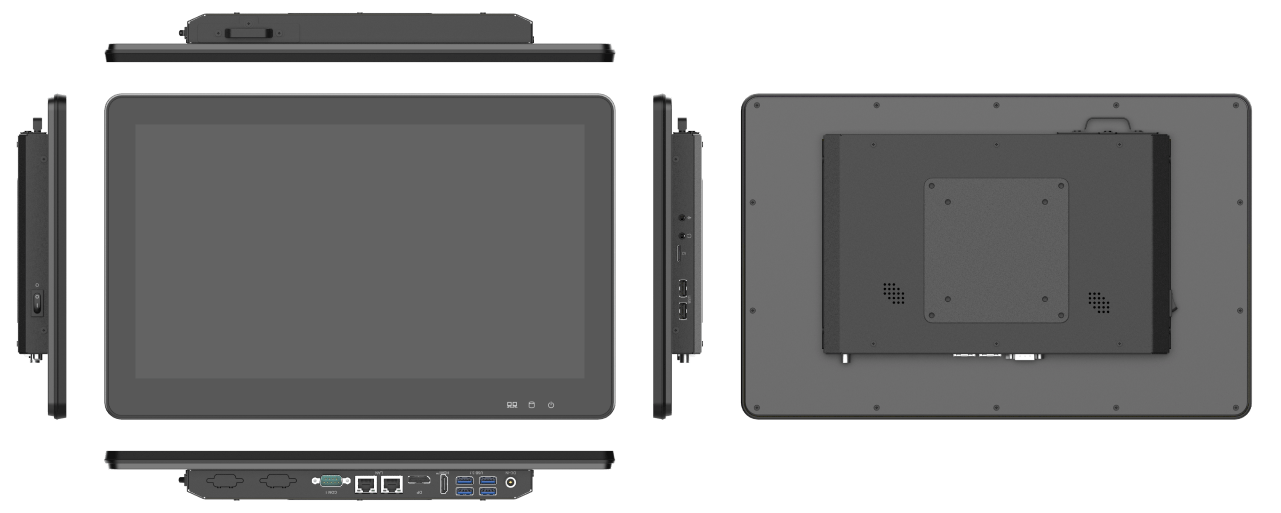

I/O Port
| USB |
|
| DP | 1 x DP |
| HDMI | 1 x HDMI |
| Serial/Parallel | 3 x COM (1 edge I/O, 2 x Internal) COM1, COM2 support RS-232/422/485 |
| Audio | 1 x Audio Line Out and 1 x MIC in jack |
| LAN | 2 x GbE LAN RJ-45 |
Storage
| HDD | 1 x 2.5″ SATA3 HDD |
| SD | 1 x microSD connector supporting SDXC 3.0 |
| Display | based on standard display, high brightness option see datasheet |
| Display Type | 10.1″ TFT-LCD |
| Max.Resolution | 1200 x 800 |
Touch Screen
| Type | Projected Capacitive |
Power
| Power Input | TBC |
Mechanical

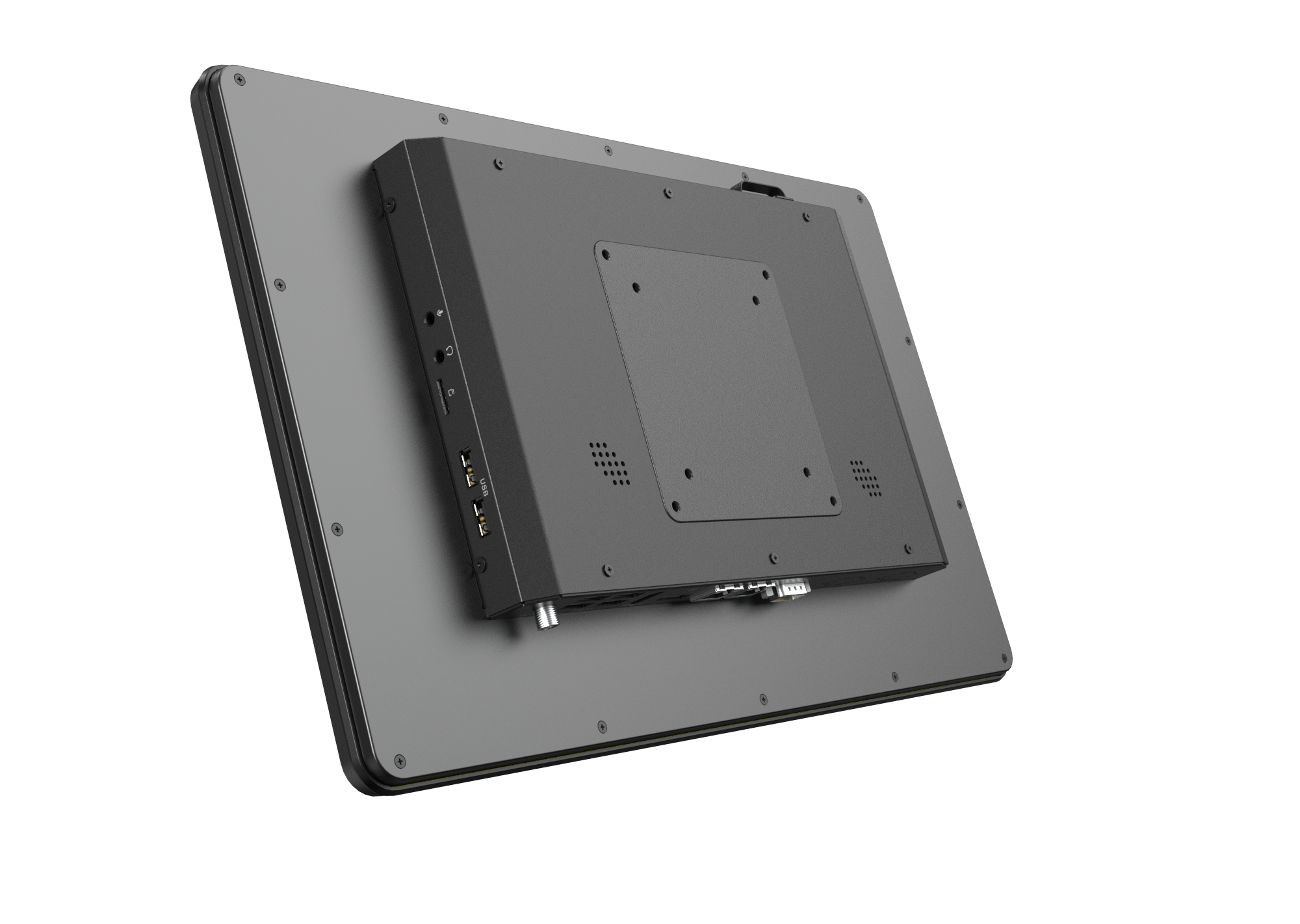

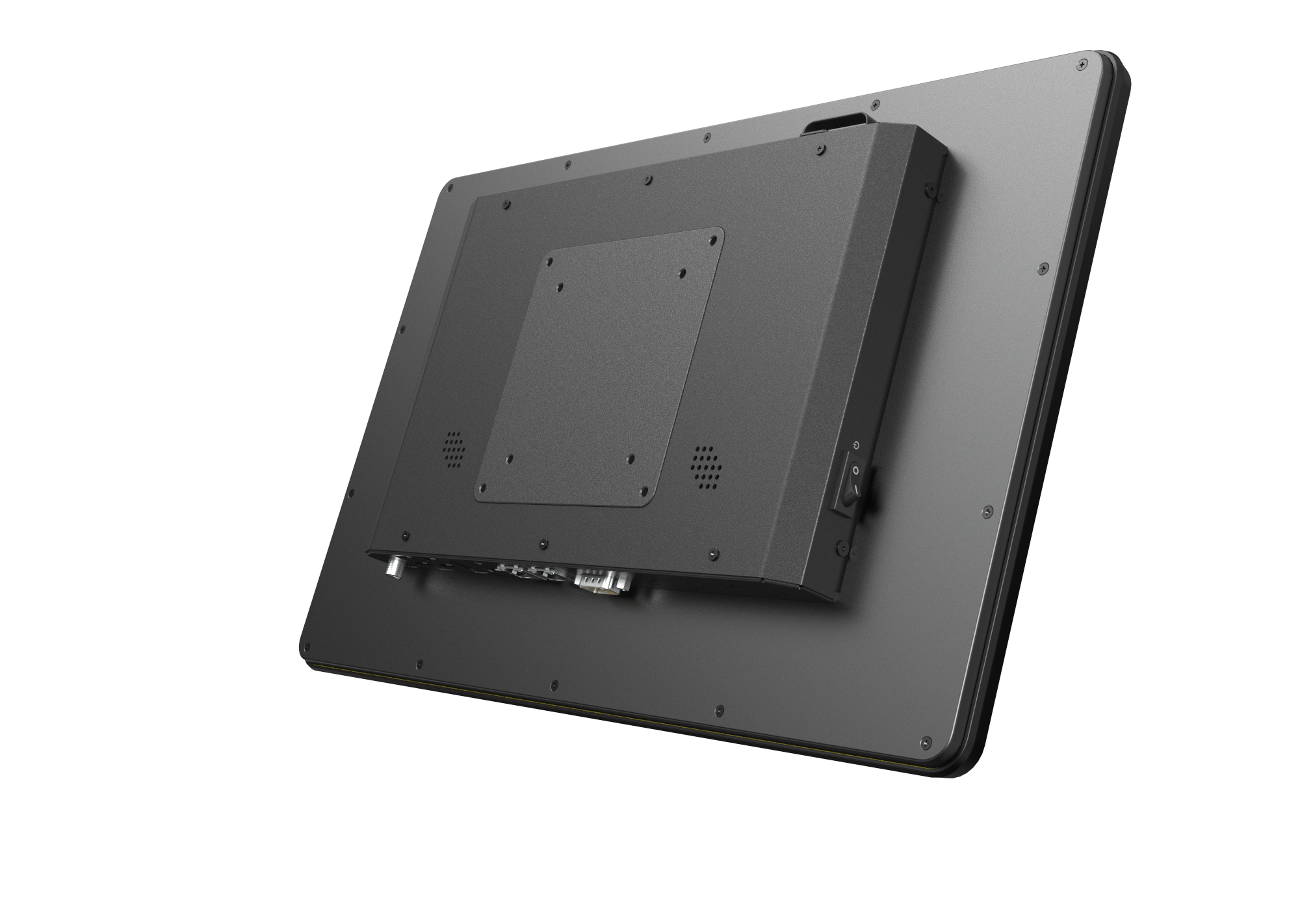

| Mounting | Panel Mount, VESA Mount |
| IP Rating | IP65 Compliant Front Bezel |
| Net Weight | TBC |
Environmental
| Operating Temperature | -10~50°C |
| Certificate | CE/FCC Class A |
| Operating System Support | Windows 10 Pro/IoT, Linux, Ubuntu |
