- x86/x64 Architecture
- 512Mb-4Gb
Single Board Computers
PC-104
$1.00
PC-104 cards are a favoured form factor due to their compact size and potential for expansion. Designed especially for embedded systems and is ideal for applications that need shock & vibration resistance
Related products
Form Factor
PC-104 are SBCs that are built to a set specification which includes the 90 x 96mm footprint as well as a 104-pin male and female connector. These connectors allow multiple PC-104 cards to be stacked on top of each other for high levels of expandable I/O. For example, you may have a PC-104 processor card, with multiple serial, LAN, and USB I/O cards in a stack. Having a PC-104 stacked system allows for huge flexibility, whilst still remaining compact in size.
Processors

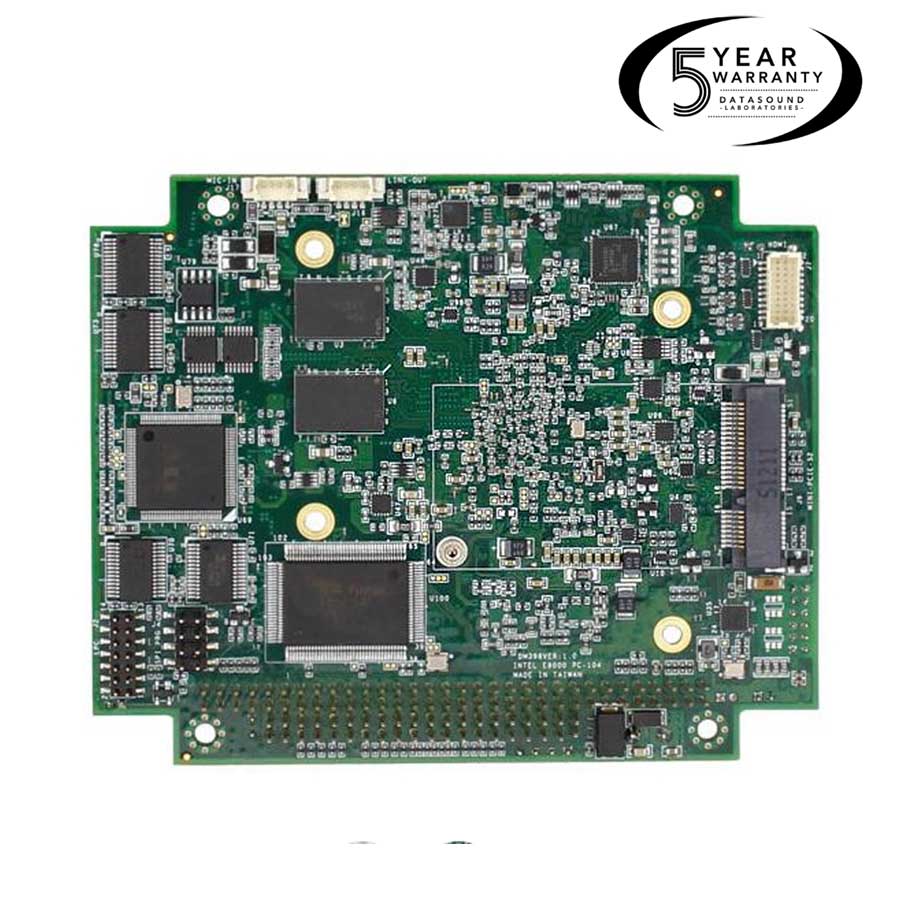

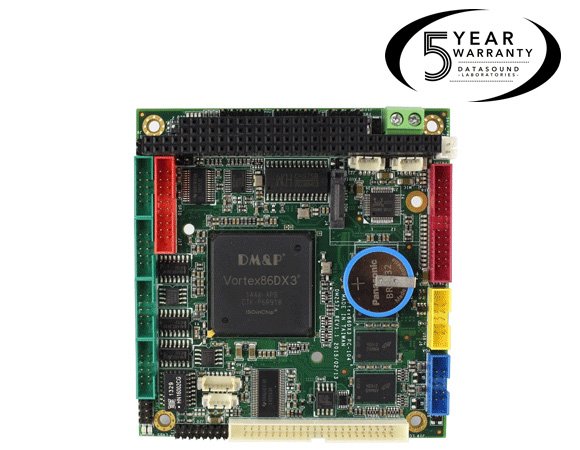

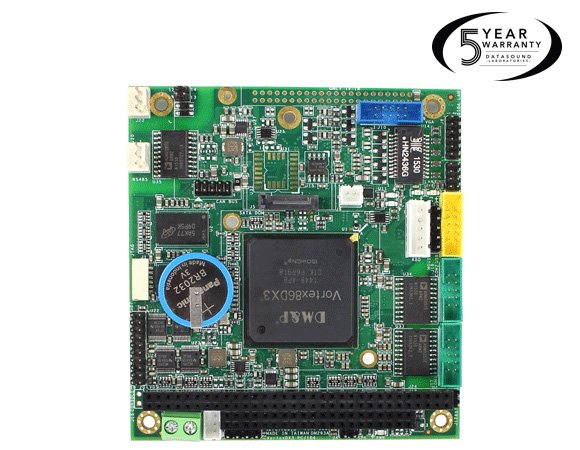

DSL’s PC-104 board offerings include a range of processors consisting of the Vortex DX2, Vortex DX3 and Intel x5-E8000. The Vortex offerings allow for legacy support of applications running on operating systems such as MS-DOS, WES 2009, and WES 7. For customers wanting to modernise their systems and applications, the Intel offering is an ideal solution enabling the use of Windows 10 OS, whilst still using an ISA bus.
Generic Blurb
Single Board Computers are complete computer systems designed on a single, physical circuit board. SBCs are very compact in size, only encompassing what is essential for a computer – memory, microprocessor/system on a chip, I/O, and RAM just to name a few. The design of an SBC makes them reliable, suiting them particularly well for ‘always-on’ tasks such as embedded computer controllers for complex device operation.
