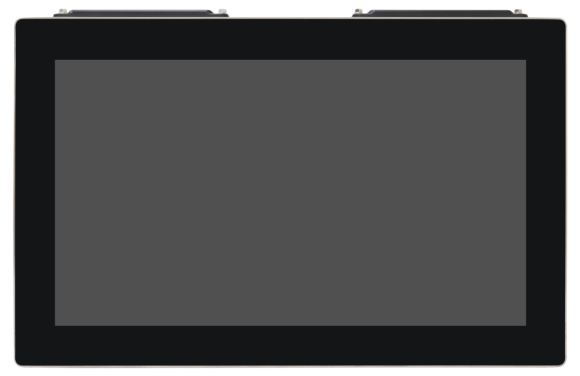

PHANTAM-916CP

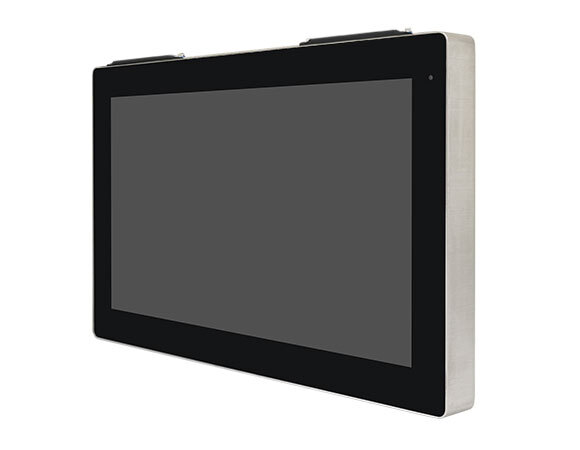

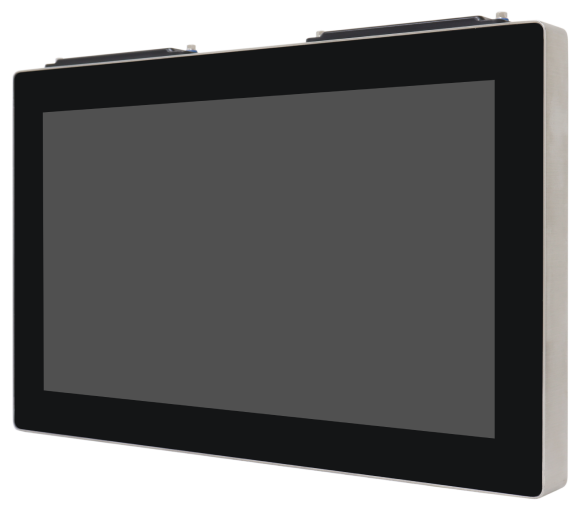

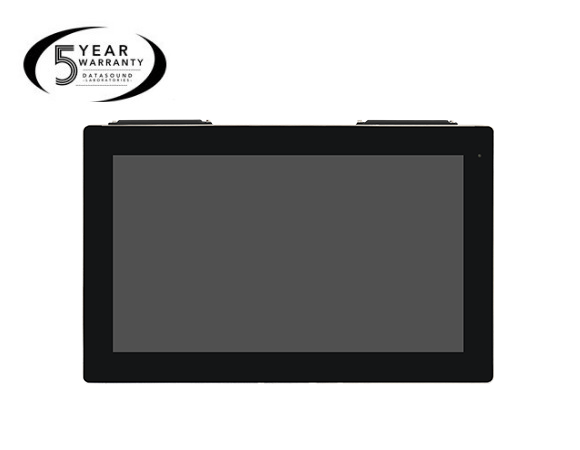

These 15.6″, thin, fully-enclosed, stainless-steel, IP66/IP69K rated panel PCs enable high pressure steam jet cleaning. Employing the Intel Core i5 1145G7E CPU, with vandal-proof 7H hardened glass, these are perfect for the food and beverage industry.

Categories: Fully IP rated Panel PCs, Industrial, Panel PCs

Quick Spec

Display Size	15.6"
Processor	Intel Core i5 1145G7E
RAM	4GB – 64GB
IP Rating	Fully IP66/IP69K
Touchscreen	Projected Capacitive
OS Support	Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu
Mounting Type	VESA

Datasheet

PHANTAM-916CRPH_V1.1.pdf

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
[email protected]

15.6” Industrial Compact Size Panel PC
Stainless-Steel Bezel
Fully Enclosed Touch Screen with Fanless Design
DC 9~36V Wide-Ranging Power Input
Intel Core i5 1145G7E CPU built-in
Up to 64GB RAM
Fully IP66/IP69K Compliant Panel
Supports TPM2.0 Hardware Security

System

CPU	Onboard 11th Gen Core i5 1145G7E Processor
Memory	2 x 260-pin SO-DIMM up to 64GB DDR4 3200MHz
TPM	TPM 2.0

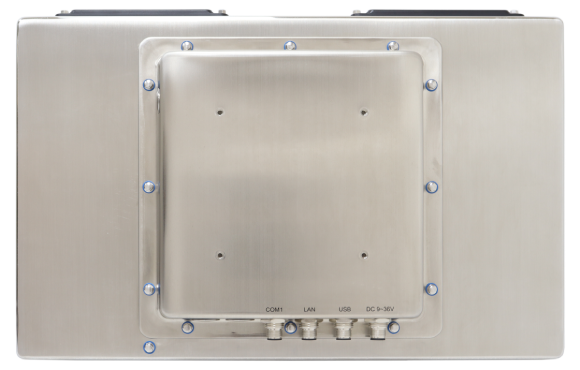

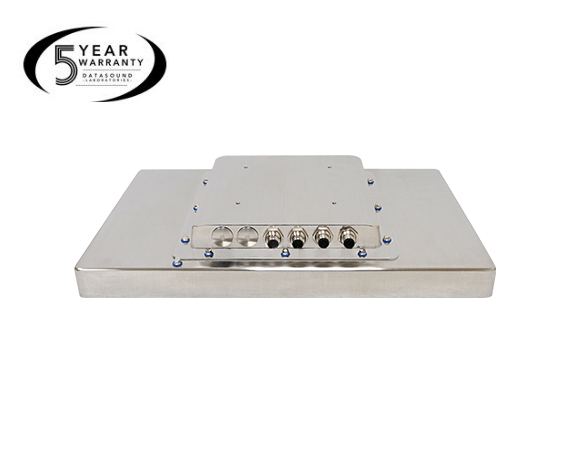

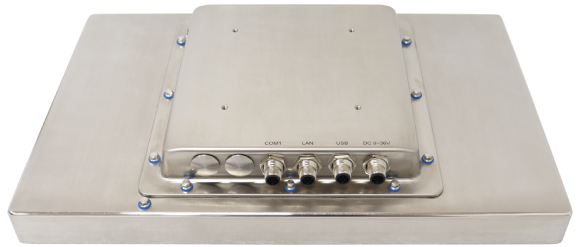

I/O Port

USB	1 x M12 8-pin for 2 x USB 2.0 with waterproof cover
Serial/Parallel	1 x M12 8-pin COM1, RS-232/422/485 default RS-232, with waterproof cover
LAN	1 x M12 8-pin for LAN with waterproof cover
Power Connector	1 x M12 3-pin for DC power with waterproof cover 1 x Screen power button on the rear
Option	2 x optional blank M12 connector with waterproof cover for selecting two from the following options: 2 x USB 2.0 1 x USB 3.2 Gen.1 1 x HDMI 1 x LAN 1 x COM 1 x CAN

Storage

M.2	1 x M-Key 2280 (PCIe x4) for SSD

Expansion

</table

Display – based on standard display, high brightness option see datasheet

Expansion slot

1 x Full size mPCIe
1 x NANO-SIM
1 x M.2 E-key 2230 (PCIe+USB) for optional WIFI/BT module

Display Type	15.6″ TFT-LCD
Max. Resolution	1366 x 768 (optional upgrade to 1920 x 1080)

Touch Screen

Type	Projected Capacitive
Light Transmission (%)	90%

Power

Power Input

DC 9~36V

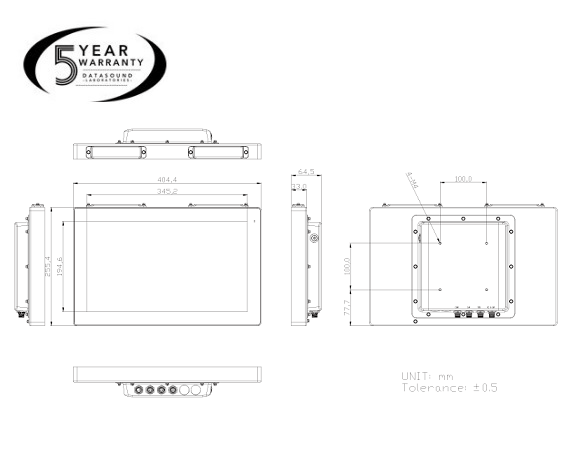

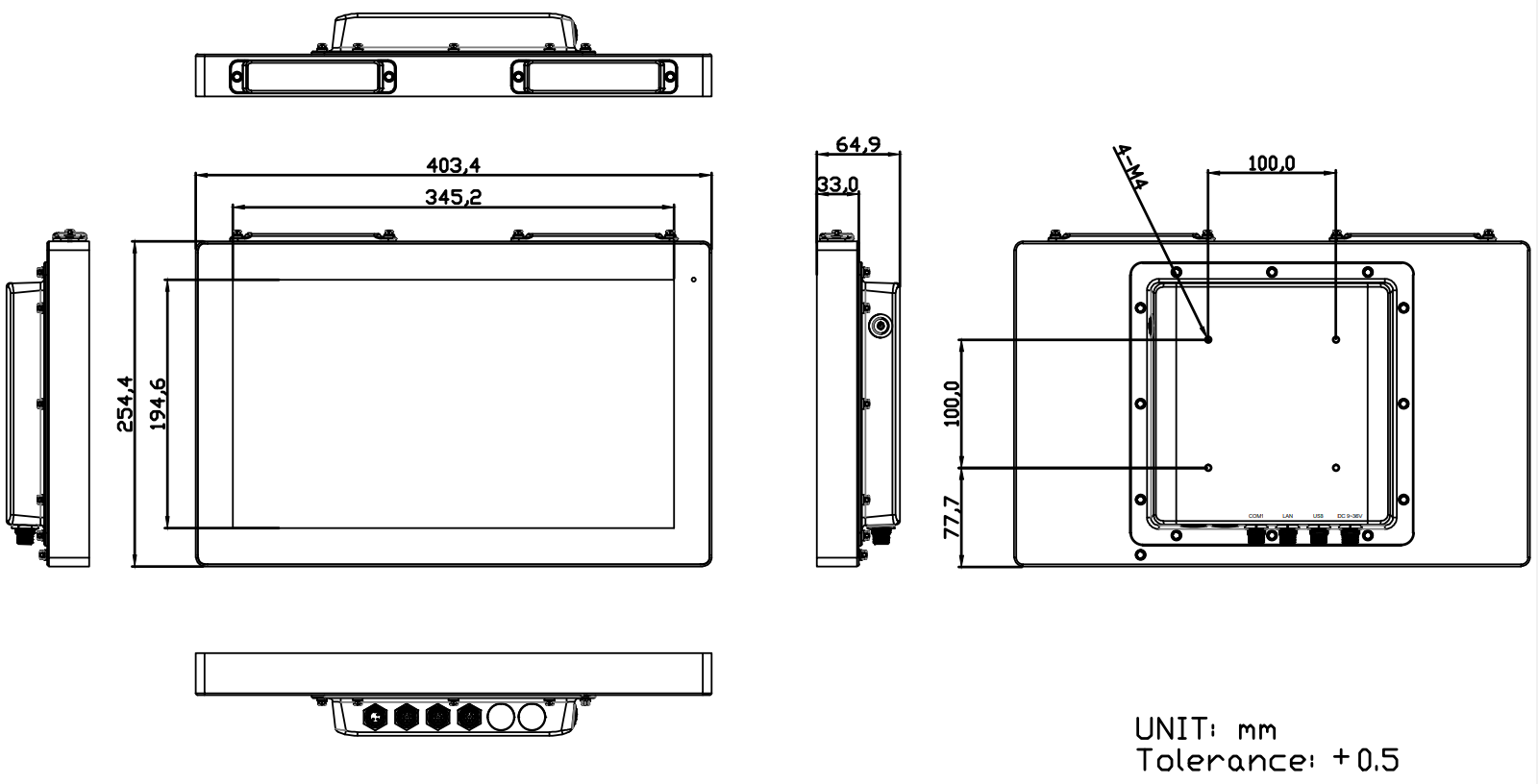

Mechanical

Construction	304 Stainless Steel Chassis (default), 316 Stainless Steel Chassis (optional)
Mounting	VESA Mount 100 x 100, Floor Stand / Swing ARM (optional)
IP Rating	Fully IP66/IP69K
Net Weight	5.1kg

Environmental

Operating Temperature	0~50°C (WT1: -20~60°C for optional)
Certificate	CE/FCC Class A
Operating System Support	Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu
