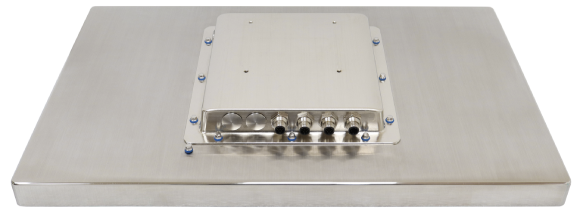

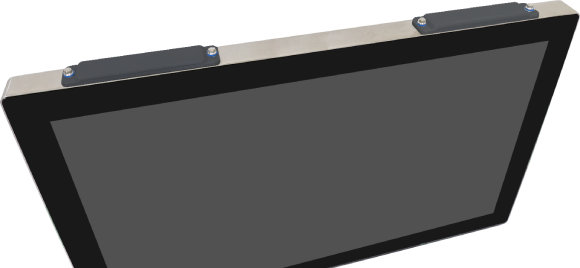

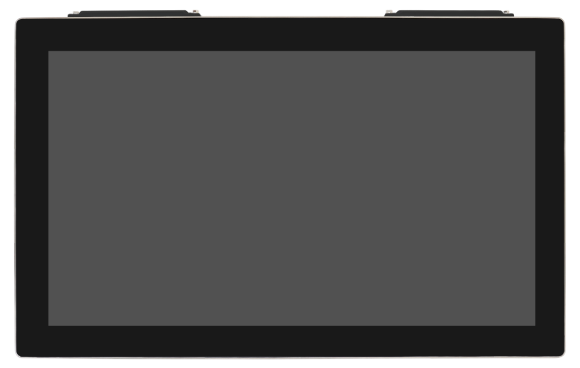

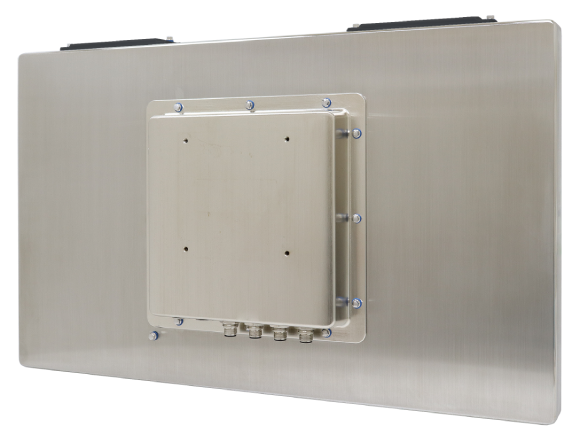

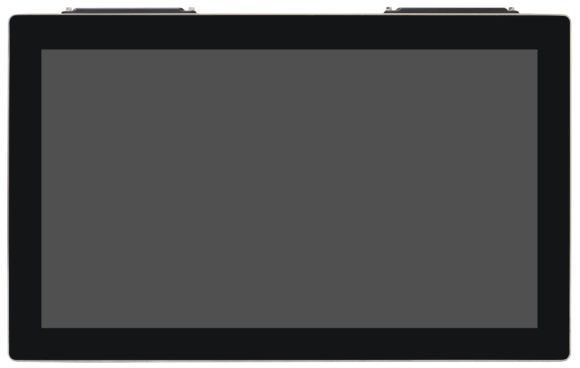

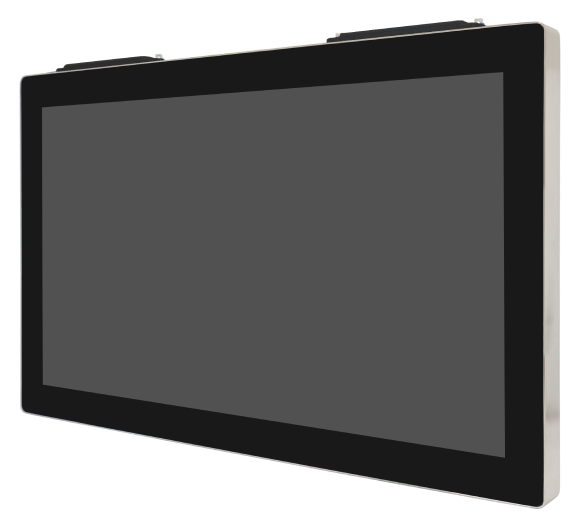

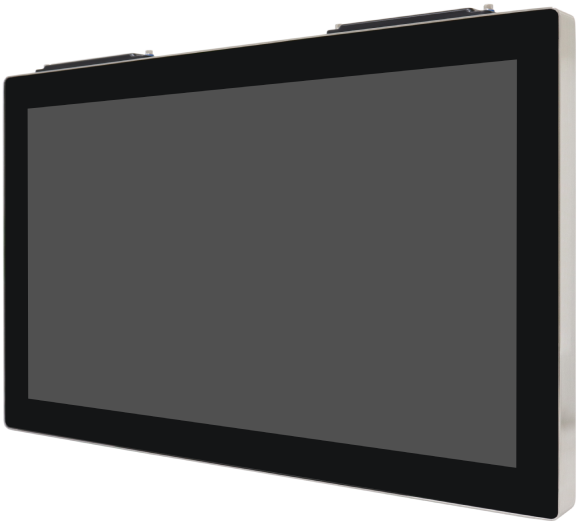

PHANTAM-921CP

These 21.5″, thin, fully-enclosed, stainless-steel, IP66/IP69K rated panel PCs enable high pressure steam jet cleaning. Employing the Intel Core i3 1115G4E CPU, with vandal-proof 7H hardened glass, these are perfect for the food and beverage industry.

Quick Spec

Display Size

21.5"

Processor

Intel Core i3 1115G4E

RAM

4GB – 64GB

IP Rating

Fully IP66/IP69K

Touchscreen

Projected Capacitive

OS Support

Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu

Mounting Type

VESA

Need Help? Contact Us


01462 374102

[email protected]
  • 21.5” Industrial Compact Size Panel PC
  • Stainless-Steel Bezel
  • Fully Enclosed Touch Screen with Fanless Design
  • DC 9~36V Wide-Ranging Power Input
  • Intel Core i3 1115G4E CPU built-in
  • Up to 64GB RAM
  • Fully IP66/IP69K Compliant Panel
  • Supports TPM2.0 Hardware Security

PHANTAM-921C

System
CPU Onboard 11th Gen Core i3 1115G4E Processor
Memory 2 x 260-pin SO-DIMM up to 64GB DDR4 3200MHz
TPM TPM 2.0
I/O Port
USB 1 x M12 8-pin for 2 x USB 2.0 with waterproof cover
Serial/Parallel
  • 1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover
LAN 1 x M12 8-pin for LAN with waterproof cover
Power Connector
  • 1 x M12 3-pin for DC power with waterproof cover
  • 1 x Screen power button on the rear
Option
  • 2 x optional blank M12 connector with waterproof cover for selecting two from the following options:
  • 2 x USB 2.0
  • 1 x USB 3.2 Gen.1
  • 1 x HDMI
  • 1 x LAN
  • 1 x COM
  • 1 x CAN
Storage
M.2 1 x M-Key 2280 (PCIe x4) for SSD
Expansion
Expansion slot
  • 1 x Full size mPCIe
  • 1 x NANO-SIM
  • 1 x M.2 E-key 2230 (PCIe+USB) for optional WIFI/BT module
Display – based on standard display, high brightness option see datasheet
Display Type 21.5″ TFT-LCD
Max. Resolution 1920 x 1080
Touch Screen
Type Projected Capacitive
Light Transmission (%) 90%
Power
Power Input DC 9~36V

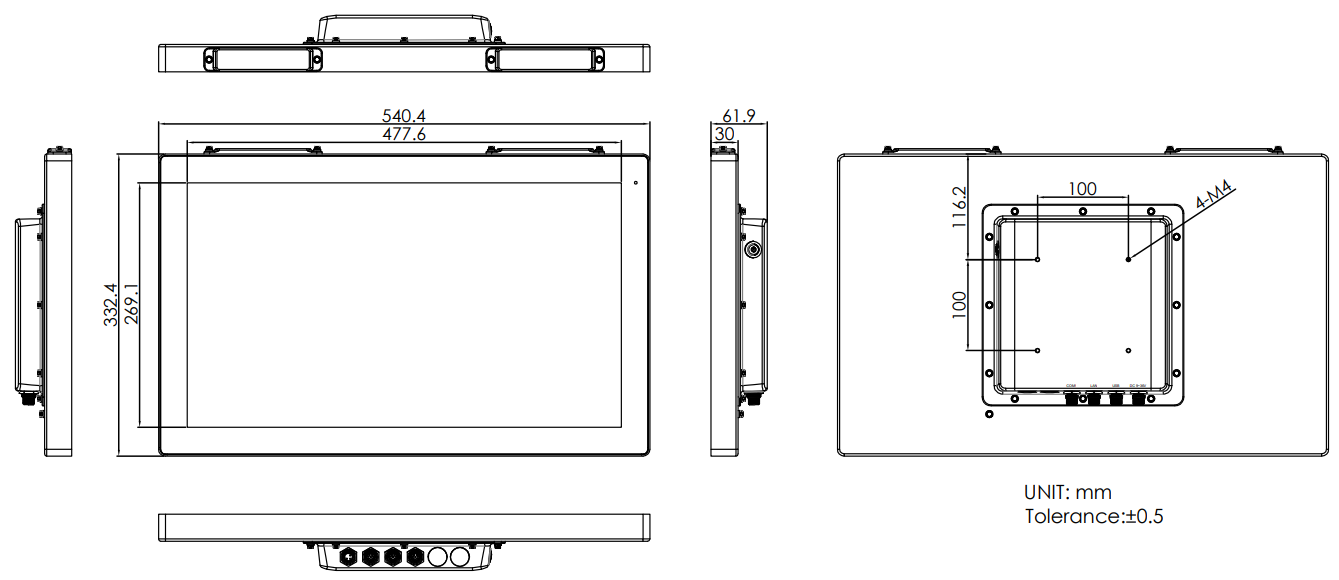

Mechanical
Construction 304 Stainless Steel Chassis (default), 316 Stainless Steel Chassis (optional)
Mounting VESA Mount 100 x 100, Floor Stand / Swing ARM (optional)
IP Rating Fully IP66/IP69K
Net Weight 7.9kg
Environmental
Operating Temperature 0~50°C (WT1: -20~60°C for optional)
Certificate CE/FCC Class A
Operating System Support Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu

PhanTAM-921CRPH_V1.1.pdf
