SBC-7111

This 4″ EPIC SBC has a 1.83GHz Quad Core Atom N2930 Processor with 4Gb RAM, alongside HDMI/VGA out and MiniPCie expansion slot. Additional I/O includes dual GbE, USB 3.0, SATA and Audio; with wide range 9-36V DC power input

Quick Spec

Processor

Intel Celeron N2930

RAM

4GB

OS Support

Windows 10 IoT

Need Help? Contact Us


01462 374102

[email protected]
  • Intel Celeron N2930 (1.83GHz) Processor
  • Onboard DDR3L 4GB/8GB 1333MHz
  • 1 x 18/24-bit Dual Channel LVDS
  • Wide Operating Temperature, Support -20°C~70°C
  • Wide Range DC 9~36V Input

SBC-7111

Processor Intel N2930 Celeron
Display
  • HDMI
  • Dual channel 18/24-bit LVDS
System Memory 4-8GB DDR4
LAN 2x GbE Ports
Audio
  • Realtek ALC-662-VD
  • 1x Audio Phone Jack
  • 6 Pin header
I/O interface
  • RS-232/485 port x2
  • USB port (Ver2.0) x4
  • SATA
  • 2x UART
Power Requirement 9-36V DC

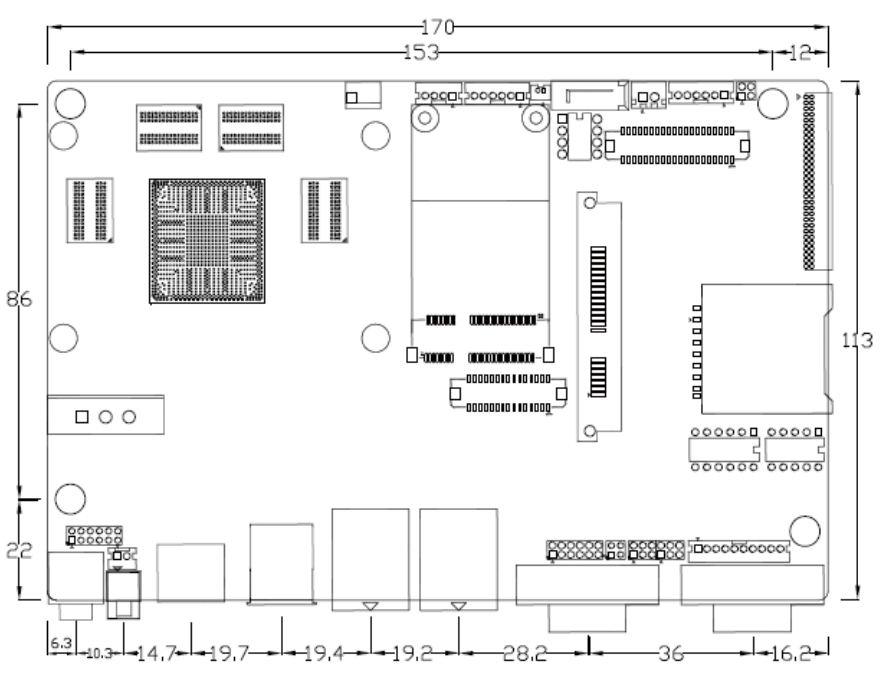

Dimensions 170mm x 113mm
Operating Temperature -20°C ~ +70°C

SBC-7111_V1.0.pdf
