- Intel Core i3 6100U CPU
- 1 x SO-DIMM DDR4 2133MHz
- Three Independent Display Support with 4Kx2K
- Support Smart Battery
- Wide Operating Temperature, Support -40°C~85°C
- Wide Range DC 9~36V Input
- TPM 2.0 (Trusted Platform Module) Support
Industrial, Single Board Computers, Single Board Computers
SBC-7114_V1.0.pdf

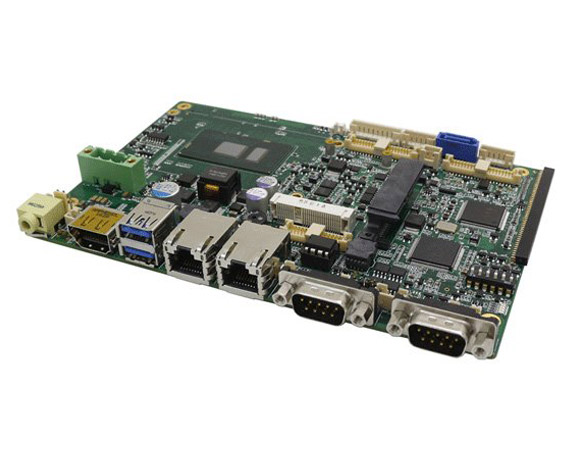

SBC-7114
This 4″ EPIC SBC is powered by a dual core 2.3GHz Core i3-6100U with 4-32Gb RAM. Alongside HDMI/VGA out and MiniPCie expansion slot. Additional I/O includes dual GbE, USB 3.0, SATA and Audio; with wide range 9-36V DC power input
Quick Spec
| Processor | Intel Core i3 6100U |
|---|---|
| RAM | 4GB-32GB |
| OS Support | Windows 10 IoT |
Datasheet
SBC-7114_V1.0.pdf
| Processor | Intel 6th gen core i3-6100U |
| Display |
|
| System Memory | 4-32GB DDR4 |
| LAN | 2x GbE Ports |
| Audio |
|
| I/O interface |
|
| Power Requirement | 9-36V DC |

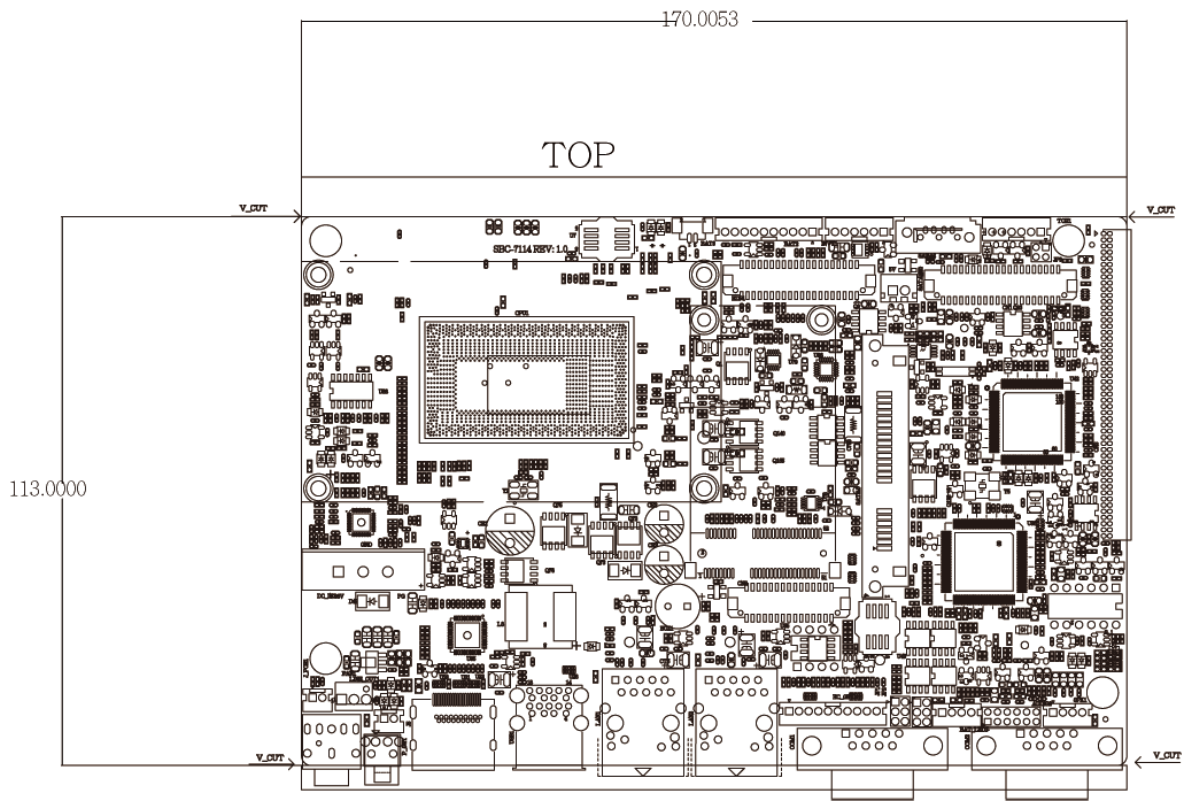

| Dimensions | 170mm x 113mm |
| Operating Temperature | -20°C ~ +70°C |
