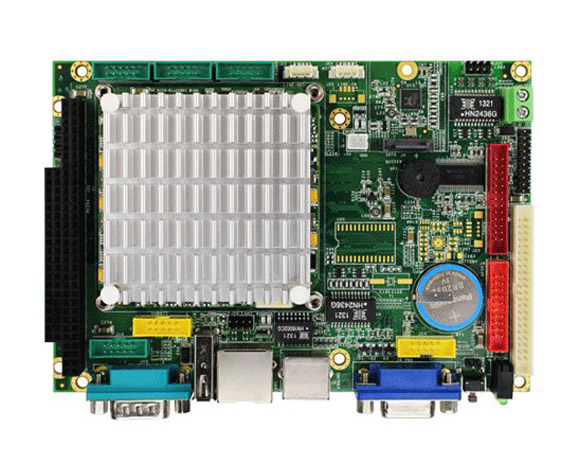

VDX2-6526

Powered by the 800MHz VDX2 and 512Mb/1Gb DDR, this 3.5″ SBC is designed to replace ageing AMD LX800 equivalents and is lower power, higher performance and lower cost

Quick Spec

Processor

Vortex DX2

RAM

512MB – 1GB

OS Support

DOS/Linux/WES2009

Need Help? Contact Us


01462 374102

[email protected]
  • DMP Vortex DX2 800MHz CPU
  • Supports 512MB-1GB RAM
  • Extended Operating Temperature, Support -40°C~+85°C
  • 5V DC power

VDX2-6526

Processor DM&P SoC CPU Vortex86DX2 – 800MHz
VGA
  • VGA: Maximum resolution up to 1920×1080 @ 60Hz
  • LVDS: Maximum resolution up to 1024×768 @ 60Hz
  • Single channel 24-bit LVDS
System Memory 512MB/1GB DDR2 Onboard
LAN
  • Integrated 10/100Mbps Ethernet x1
  • Realtek GbE x2
Audio
  • ALC 888S (HD Audio)
  • Touch Controller
  • PS/2 interface(Optional)
I/O interface
  • SATA 7P port x1
  • RS-232/485 port x4
  • USB port (Ver2.0) x4
  • 10/100Mbps Ethernet port x1
  • 10/100/1000 Mbps Ethernet port x2
Power Requirement Single Voltage +5V

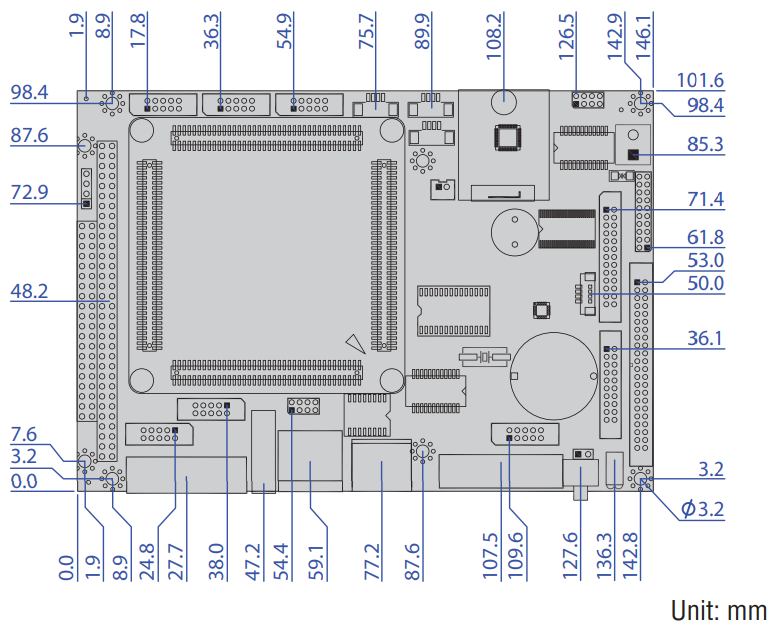

Dimensions 102mm x 146mm
Operating Temperature -10°C ~ +60°C / -40°C ~ +85°C (Optional)

VDX2-6526-Datasheet.pdf
