VDX2-6554

This PC/104 card is powered by the 800MHz VDX2 with 512Mb-1Gb DDR2 and free cable kit. The VDX2-6554 specifically offers SATA DOM & 24 bit LVDS operation

Quick Spec

Processor

Vortex DX2

RAM

512MB – 1GB

OS Support

DOS/Linux/WES2009

Need Help? Contact Us


01462 374102

[email protected]
  • DMP Vortex DX2 800MHz CPU
  • Supports 512MB-1GB RAM
  • Extended Operating Temperature, Support -40°C~+85°C
  • 5V DC power
  • PC/104 standard compliant

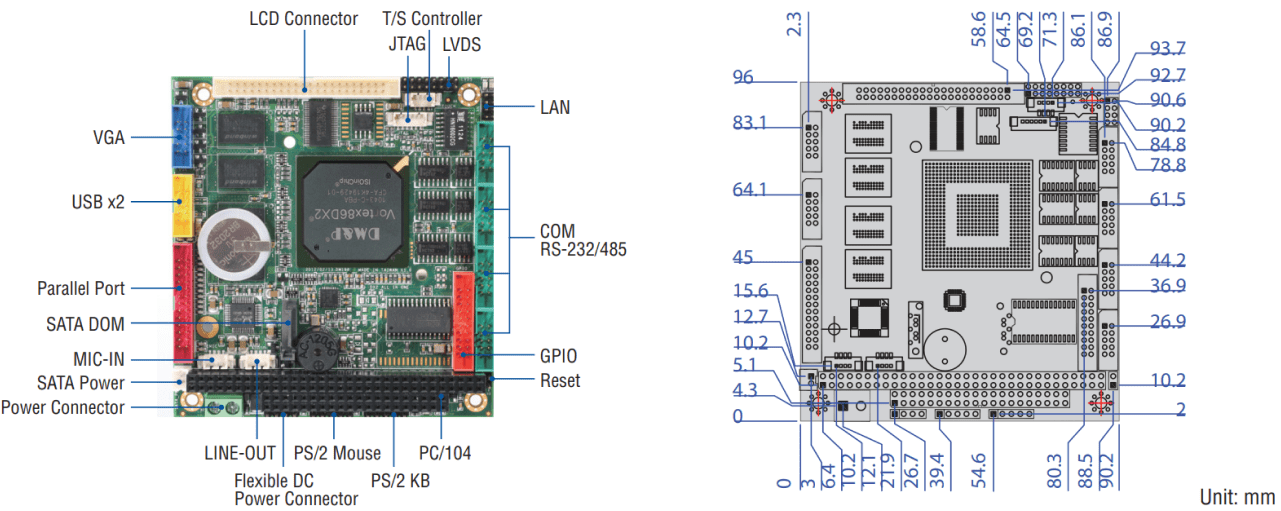

VDX2-6554

Processor
  • DM&P SoC CPU Vortex86DX2 – 800MHz
  • Real Time Clock with Lithium Battery Backup
VGA
  • Integrated 2D VGA chip with dual display support (VGA + LVDS)
  • VGA: Maximum resolution up to 1920×1080 @ 60Hz
  • LVDS: Maximum resolution up to 1280×1024 @ 60Hz
System Memory 512MB/1GB DDR2 Onboard
LAN Integrated 10/100Mbps Ethernet
Audio ALC 888S
I/O interface
  • SATA 7P port x1
  • RS-232/485 port x4
  • USB port (Ver2.0) x2
  • Parallel port x1
  • 16-bit GPIO port x1
  • 10/100Mbps Ethernet port x1
Power Requirement Single Voltage +5V @1.3A (Typical)
Dimensions 90mm x 96mm (3.54 x 3.77 inches)
Operating Temperature -20°C ~ +70°C / -40°C ~ +85°C (Optional)

6554_Datasheet.pdf
