- DMP Vortex DX3 1GHz CPU
- Single and Dual core CPU
- Supports 1-2GB RAM
- Extended Operating Temperature, Support -40°C~+85°C (single core only)
- 5V DC power
- PC/104 standard compliant
Single Board Computers
VDX3-6754_datasheet.pdf

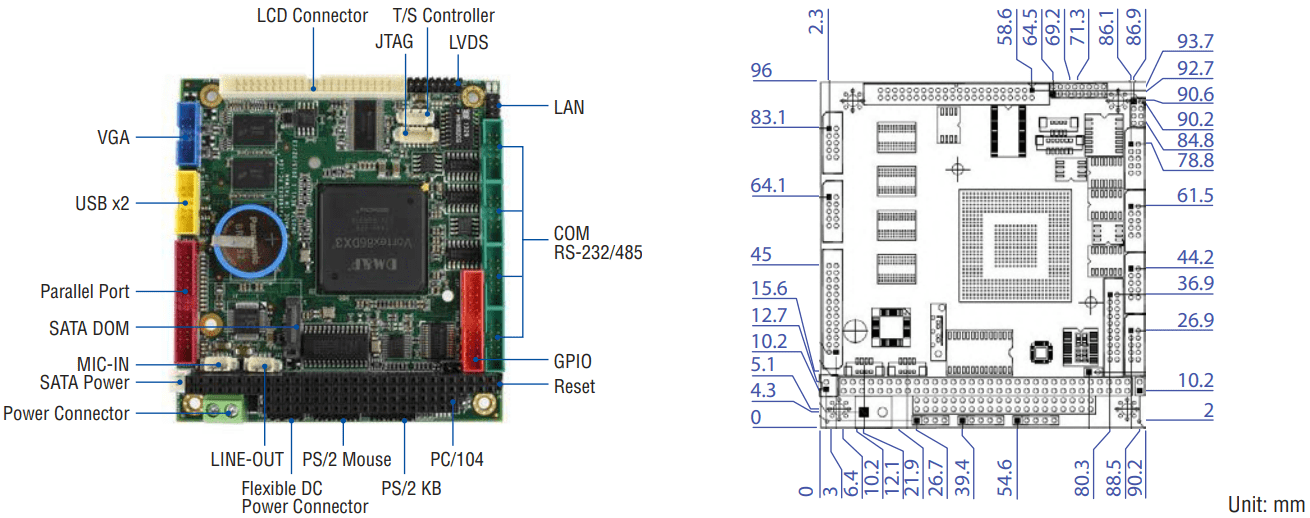

VDX3-6754
This PC/104 SBC provides 1GHz single core (dual core optional) VDX3 with 1-2Gb DDR3 RAM. The VDX3-6754 specifically offers SATA DOM & 24 bit LVDS
Quick Spec
| Processor | Vortex DX3 |
|---|---|
| RAM | 1GB – 2GB |
| OS Support | DOS/Linux/WES2009/WES7 |
Datasheet
VDX3-6754_datasheet.pdf
| Processor |
|
| VGA |
|
| System Memory | 1GB/2GB DDR3 Onboard |
| LAN | Integrated 10/100Mbps Ethernet |
| Audio |
|
| I/O interface |
|
| Power Requirement | Single Voltage +5V @1.3A (Typical) |
| Dimensions | 90mm x 96mm (3.54 x 3.77 inches) |
| Operating Temperature | -20°C ~ +70°C / -40°C ~ +85°C (Optional) |
