VDX3-6755

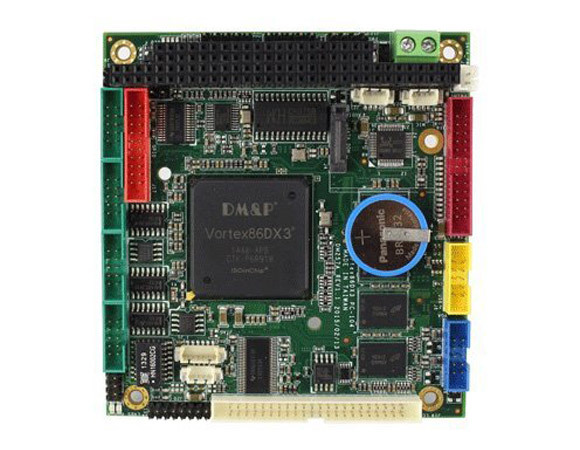

This 90 x 96mm PC/104 SBC provides 1GHz single core (dual core optional)VDX3 with1-2Gb DDR3. The VDX3-6755 specifically offersSATA DOM & CAN BUS options

Category:

Quick Spec

Processor

Vortex DX3
RAM

1GB – 2GB
OS Support

DOS/Linux/WES2009/WES7

Datasheet

VDX3-6755_DS2-16.pdf
Request a Quote Back to Product

Need Help? Contact Us


01462 374102
[email protected]
  • DMP Vortex DX3 1GHz CPU
  • Single and Dual core CPU
  • Supports 1-2GB RAM
  • Extended Operating Temperature, Support -40°C~+85°C (single core only)
  • 5V DC power
  • PC/104 standard compliant

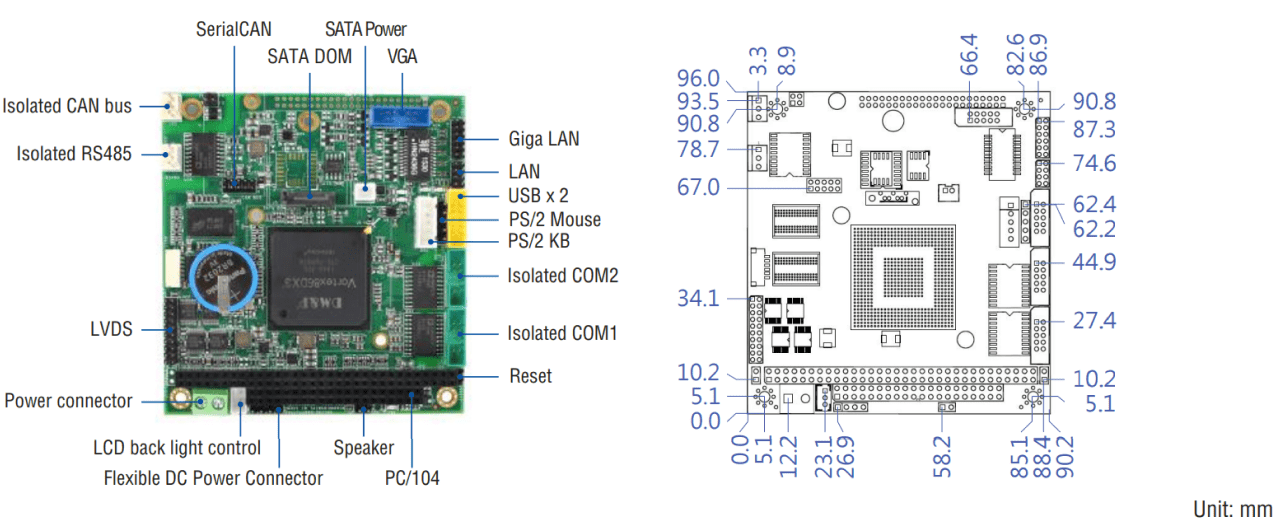

VDX3-6755

Processor
  • DM&P SoC CPU Vortex86DX3 – 1GHz
  • Real Time Clock with Lithium Battery Backup
VGA
  • Integrated 2D VGA chip with dual display support (VGA + TTL / VGA + LVDS)
  • VGA: Maximum resolution up to 1920×1080 @ 60Hz
  • LVDS: Maximum resolution up to 1024×768 @ 60Hz
  • Single channel 24-bit LVDS
System Memory 1GB/2GB DDR3 Onboard
LAN
  • Integrated 10/100Mbps Ethernet
  • Realtek 8111F Gbe
Audio
  • ALC 262 (HD Audio)
  • Touch Controller
  • PS/2 interface(Optional)
I/O interface
  • SATA 7P port x1
  • Isolated RS-232 port x2
  • Isolated RS-485 port x1
  • USB port (Ver2.0) x2
  • 10/100Mbps Ethernet port x1
  • 10/100/1000 Mbps Ethernet port x1
Power Requirement Single Voltage +5V @1.15A (Typical)
Dimensions 90mm x 96mm
Operating Temperature -20°C ~ +70°C / -40°C ~ +85°C (Optional)

VDX3-6755_DS2-16.pdf
