ViKING-919BP

These 19″ fanless systems, powered by the Intel Core i5 8365UE CPU are perfect for marine applications. Designed to endure extreme harsh environments, supporting 0-100% brightness, the ViKING complies with IEC 60945.

Categories: Front IP rated Panel PCs, Industrial, Panel PCs

Quick Spec

Display Size	19"
Processor	Intel Core i5 8365UE
RAM	Up to 32GB
Certification	IEC 60945 Marine Certified
OS Support	Windows 10 Pro/IoT, Linux, Ubuntu
Touchscreen	Projected Capacitive
IP Rating	Front IP66
Mounting Type	Panel/VESA

Datasheet

ViKING-919BP_V1.1.pdf

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
[email protected]

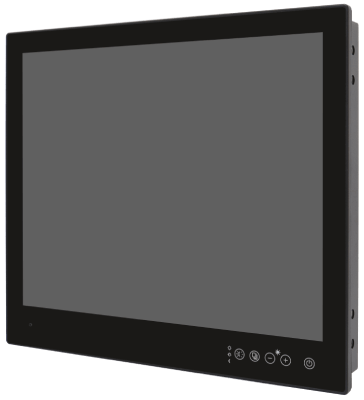

19” Industrial Compact Size Panel PC

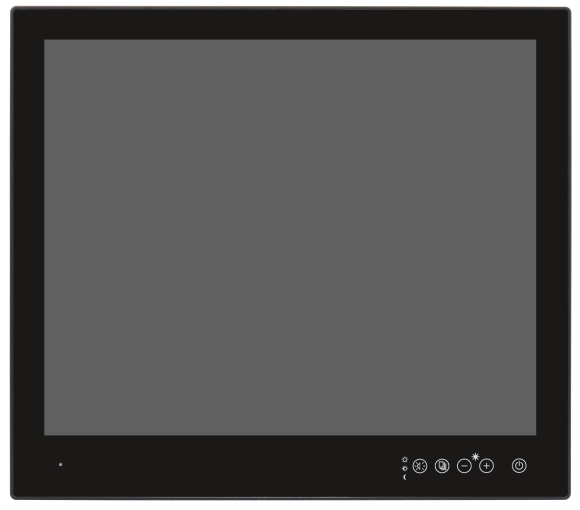

Flat Front Panel Touch Screen and Fanless Design
IEC 60945 Marine Certified
DC 24V Power Input
Intel Core i5 8365UE CPU built-in
Up to 32GB RAM
IP66 Compliant Front Panel
Supports TPM2.0 Hardware Security

System

CPU	Onboard Intel Core i5 8365UE Processor
Memory	Up to 32GB
TPM	TPM 2.0

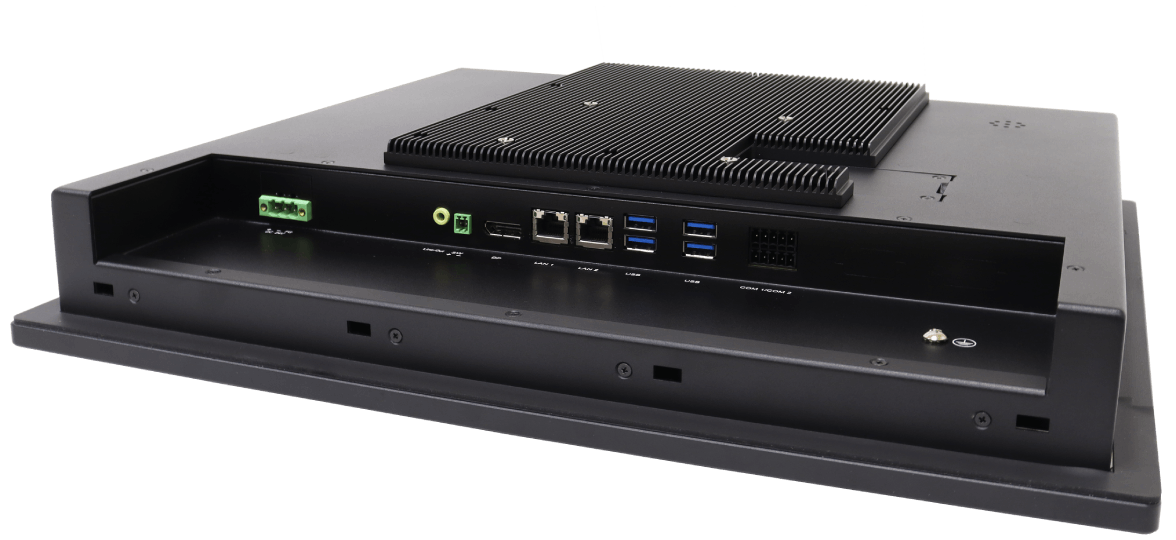

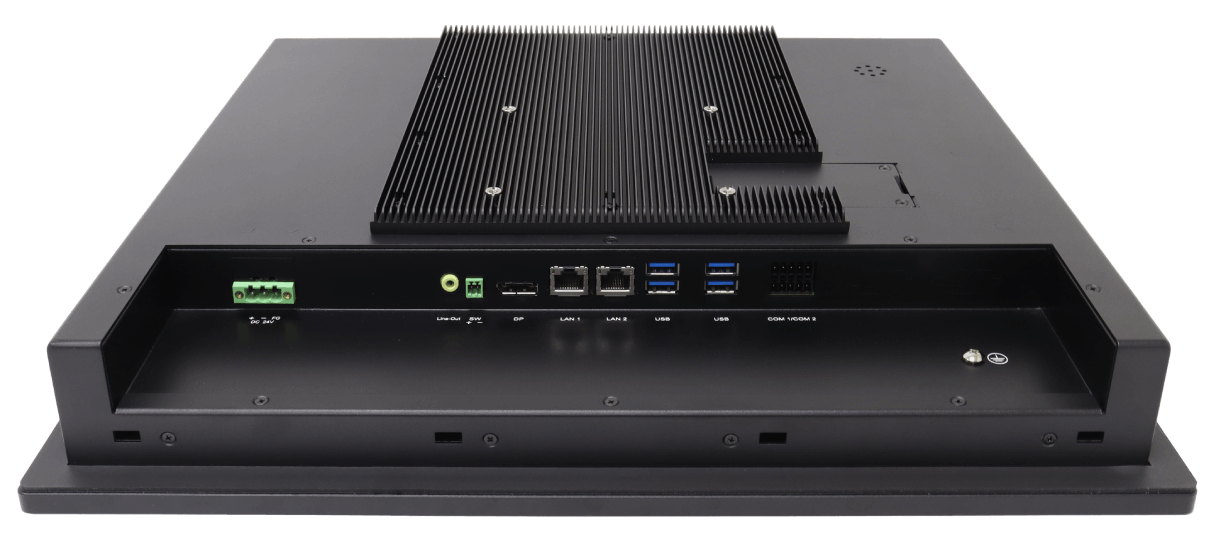

I/O Port

USB	4 x USB 3.0 type A
DP	1 x DP Port
Serial/Parallel	1 x RS-232 (COM1, 5-pin terminal block) 1 x RS-232/422/485 Selectable Default RS-485 (COM 2, 5-pin terminal block) 1 x ESD Ground (COM1) default x RS-232(Tx, Rx)/422/485(COM2) optional
Audio	1 x Line-out, Phone Jack
DP	1 x DP Port
LAN	2 x GbE LAN RJ-45
Power Connector	1 x 2-pin Terminal Block Connector (for remote power switch) 1 x 3-pin Terminal Block Connector
Front Side I/O	Keypad Capacitive Touch with LED Power Brightness+
Brightness	Brightness Mode Swap (DAY, DUSK, NIGHT) 1 x Buzzer

Storage

Default: 1 x M.2 M-Key 2242(option 2280 can’t use TB-528 at same time)
1 x 2.5″ HDD space (option)

Expansion

Expansion slot

1 x TB-528 Expansion Connector (for 19”/24” only)
option TB-528C2I for Isolation 2 x RS-422/485 Isolation

Display

Display Type	19″ TFT-LCD
Max.Resolution	1280 x 1024

Touch Screen

Type	Projected Capacitive
Light Transmission (%)	90%

Power

Power Input

DC 24V with Isolated / AC Power option

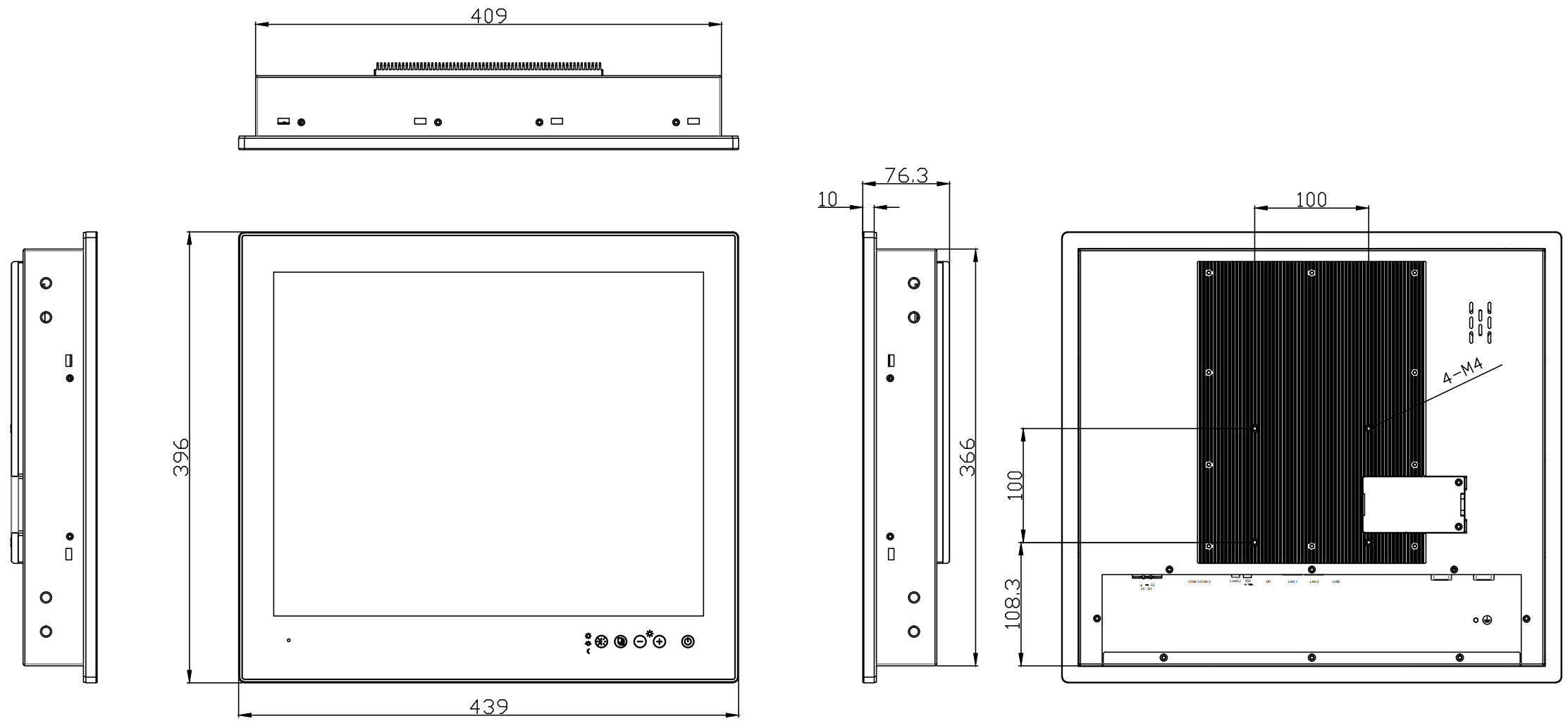

Mechanical

Construction	Black/ Aluminum Bezel and Aluminum Housing (Anti-Corrosion Coating)

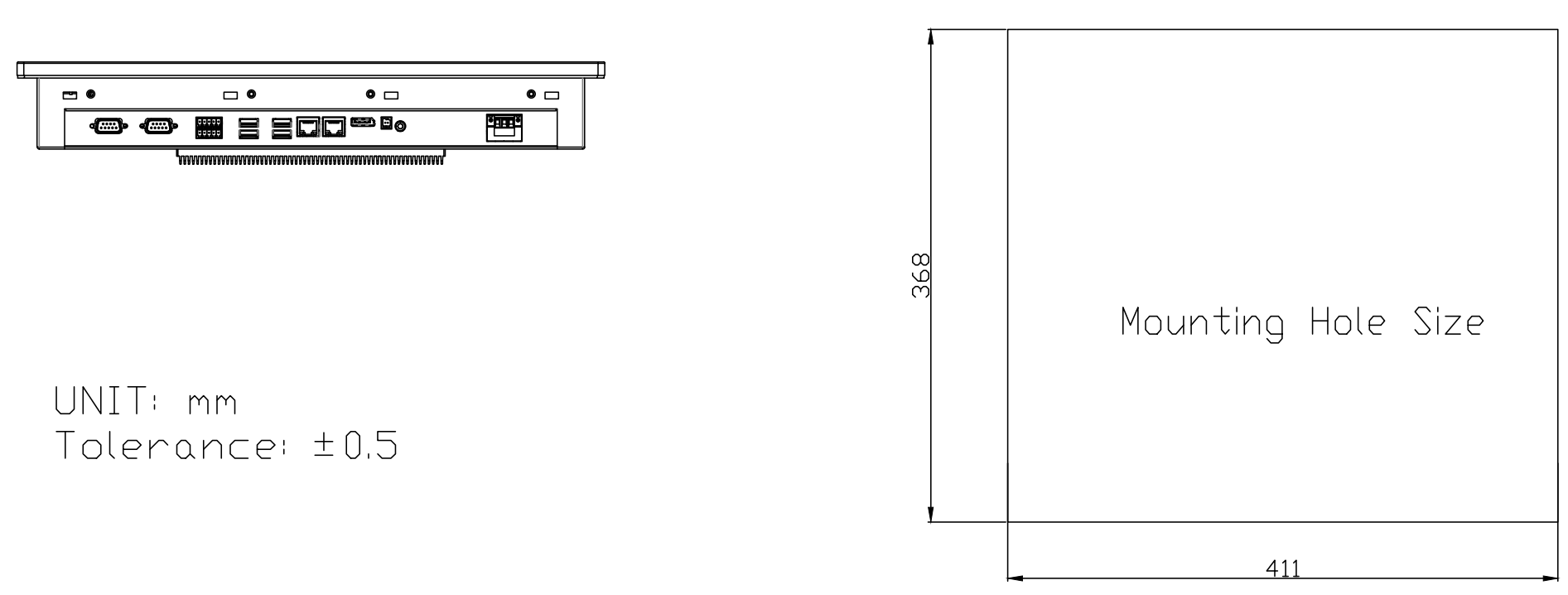

Mounting	Panel Mount, VESA Mount 100 x 100 Front Access Mount / Mounting Bracket (option)
IP Rating	IP66 Compliant Front Bezel
Net Weight	6.5kg

Environmental

Operating Temperature	0~50°C/-20~60°C (option)
Certificate	CE/FCC/IEC 60945
Operating System Support	Windows 10 Pro/IoT, Linux, Ubuntu
