ViPAC-816

These 15.6″ versatile, front IP66 panel PCs can be panel mounted for a sleek built-in feel. Employing the Intel Celeron N2930, these are perfect for industrial environments.

Categories: Front IP rated Panel PCs, Industrial, Panel PCs

Quick Spec

Display Size	15.6"
Processor	Intel Celeron N2930
RAM	4GB – 32GB
IP Rating	Front IP66
Touchscreen	Projected Capacitive, Resistive
OS Support	Windows 10 Pro/IoT, Linux, Ubuntu
Mounting Type	Panel

Datasheet

ViPAC-816PRGH_V1.2.pdf

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
[email protected]

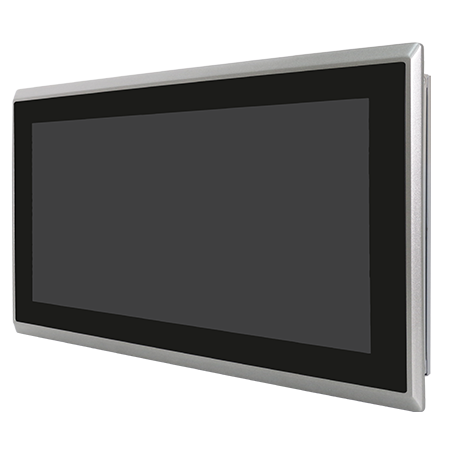

15.6” Industrial Compact Size Panel PC
Flat Front Panel Touch Screen and Fanless Design
DC 9~36V Wide-Ranging Power Input
Intel Celeron N2930 CPU built-in
Up to 32GB RAM
IP66 Compliant Front Panel

System

CPU	Onboard Intel Celeron N2930 Processor
Memory	2 x 204-pin DDR3L SO-DIMM slot up to 8GB

I/O Port

USB	4 x USB 3.0 type A
Serial/Parallel	1 x DB9 RS-232/422/485 default RS-232 1 x DB9 RS-232 1 x DB9 RS-422/485 default RS-485
Audio	1 x Line-out/Mic-in
LAN	2 x GbE LAN RJ-45
DP	1 x DB15 VGA 1 x HDMI with Cover
Power Connector	1 x 3 pin TB Power connector 1 x 2-pin Terminal block for external power switch 1 x Power Switch on/off
Option	2 x RS-232 DB-9 + 1 x Mini-PCIe slot via TB-528C2ME1 2 x CAN bus via TB-528CAN2 2 x USB 2.0 type A Via TB-528U2 2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1 x RS-232 DB-9 + 1 x Power button via TB-528C1U2 UPS Battery 21W/10.8W/1.95Ah(3S1P)

Storage

HDD	1 x 2.5″ SATA HDD Space (Easy Accessible Storage Design)

Expansion

Expansion slot	1 x Full-size Mini PCIe on board(PCIe/USB/SATA,SATA by default) 1 x Half-size Mini PCIe on board (PCIe/USB, PCIe by default) 1 x SIM slot for option(Option wifi/BT/4G and antenna at rear side) 1 x PCI and 1 x PCIe x1 slot via TB-560P1E11 (default)
Display	based on standard display, high brightness option see datasheet
Display Type	15.6″ TFT-LCD
Max. Resolution	1366 x 768 (1920 x 1080 option)

Touch Screen

Type	Projected Capacitive / Resistive
Light Transmission (%)	Projected Capacitive Touch: over 90% Resistive Touch: over 80%

Power

Power Input

DC 9~36V

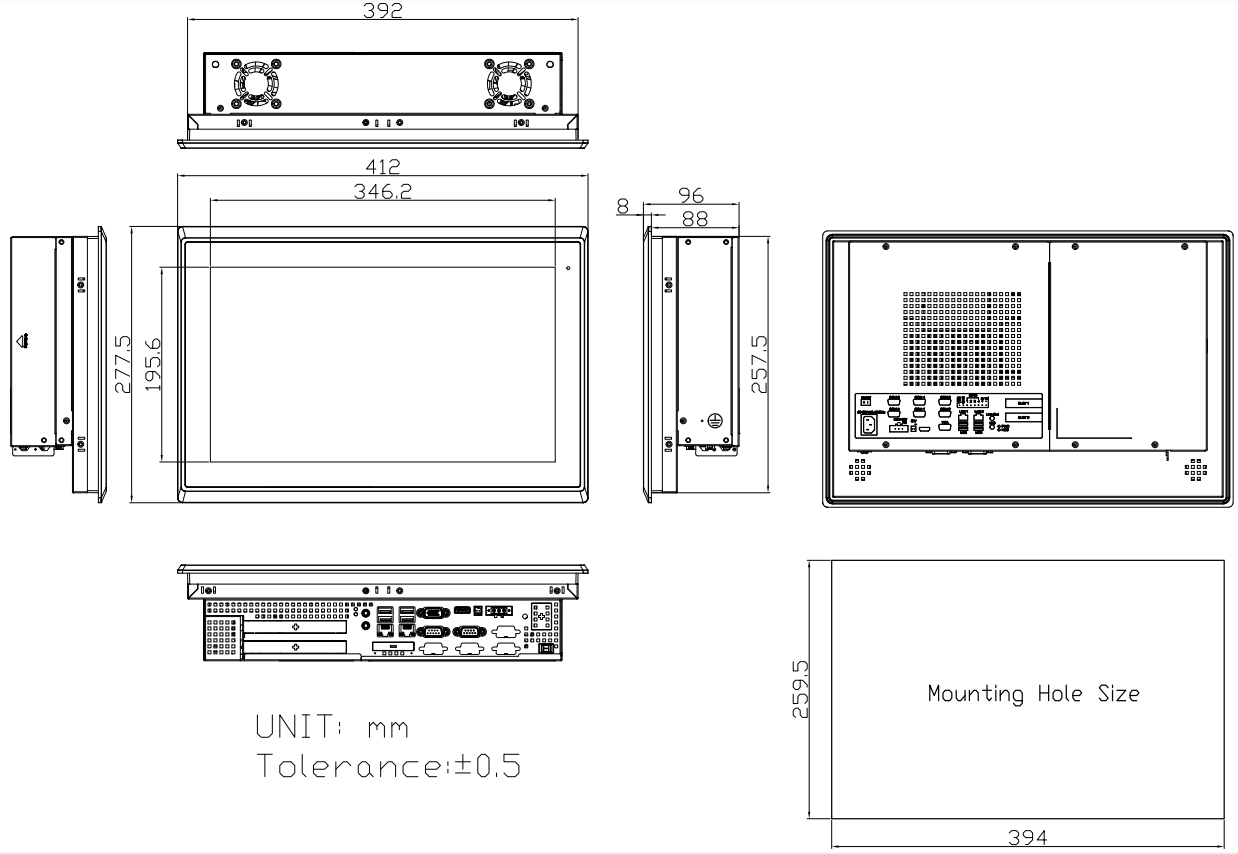

Mechanical

Construction	Aluminium die-cast front bezel
Mounting	Panel Mount
IP Rating	IP66 Compliant Front Bezel
Net Weight	6.5kg

Environmental

Operating Temperature	0~50°C
Certificate	CE/FCC Class A
Operating System Support	Windows 10 Pro/IoT, Linux, Ubuntu
