Front IP rated Panel PCs, Industrial, Panel PCs

ViPAC-917

These 17″ versatile, front IP66 panel PCs can be panel mounted for a sleek built-in feel. Employing the Intel Core i7 6700TE, these are perfect for industrial environments.

Quick Spec

Display Size	17"
Processor	Intel Core i7 6700TE
RAM	4GB – 32GB
IP Rating	Front IP66
Touchscreen	Projected Capacitive, Resistive
OS Support	Windows 10 Pro/IoT, Linux, Ubuntu
Mounting Type	Panel

Datasheet

ViPAC-917PRGH_V1.3.pdf

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
[email protected]

17” Industrial Compact Size Panel PC
Flat Front Panel Touch Screen and Fanless Design
DC 9~36V Wide-Ranging Power Input
Intel Core i7 6700TE CPU built-in
Up to 32GB RAM
IP66 Compliant Front Panel

System

CPU	Onboard Intel Core i7 6700TE Processor
Memory	2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz SDRAM

I/O Port

USB	4 x USB 3.0 type A
Serial/Parallel	1 x DB9 RS-232/422/485 default RS-232 1 x DB9 RS-232 1 x DB9 RS-422/485 default RS-485
Audio	1 x Line-out/Mic-in
LAN	2 x GbE LAN RJ-45
DP	1 x DB15 VGA 1 x HDMI with Cover
Power Connector	1 x 3 pin TB Power connector 1 x 2-pin Terminal block for external power switch 1 x Power Switch on/off
Option	2 x RS-232 DB-9 + 1 x Mini-PCIe slot via TB-528C2ME1 2 x CAN bus via TB-528CAN2 2 x USB 2.0 type A Via TB-528U2 2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1 x RS-232 DB-9 + 1 x Power button via TB-528C1U2 UPS Battery 21W/10.8W/1.95Ah(3S1P)

Storage

HDD	1 x 2.5″ SATA HDD Space (Easy Accessible Storage Design)

Expansion

Expansion slot	4 x USB 2.0 Type A via TB-546 2 x DB9 COM port 1 x 8-bit GPIO (3 in/out/VCC/GND)
Display	based on standard display, high brightness option see datasheet
Display Type	17″ TFT-LCD
Max. Resolution	1280 x 1024

Touch Screen

Type	Projected Capacitive / Resistive
Light Transmission (%)	Projected Capacitive Touch: over 90% Resistive Touch: over 80%

Power

Power Input

DC 9~36V

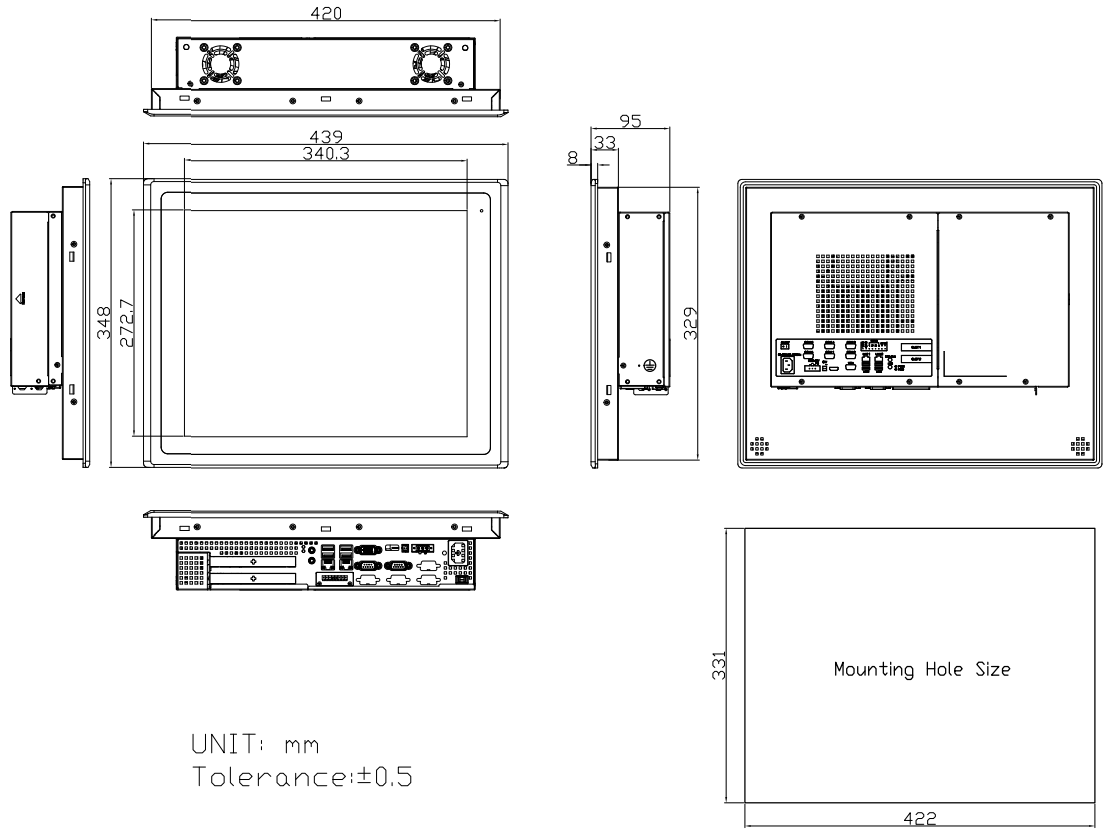

Mechanical

Construction	Aluminium die-cast front bezel
Mounting	Panel Mount
IP Rating	IP66 Compliant Front Bezel
Net Weight	7.6kg

Environmental

Operating Temperature	0~50°C
Certificate	CE/FCC Class A
Operating System Support	Windows 10 Pro/IoT, Linux, Ubuntu
