- 15″ – 21.5″
- Intel Celeron – Intel Core i7
- Front IP66
- Panel
Front IP rated Panel PCs, Industrial, Panel PCs
ViPAC Panel PC
$1.00

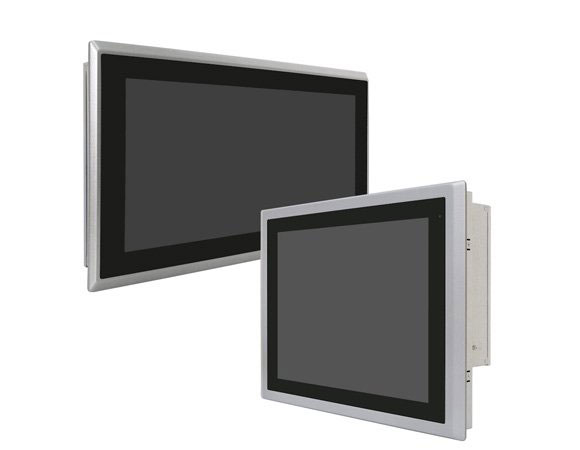

These versatile, front IP66 panel PCs can be panel mounted for a sleek built-in feel. Perfect for industrial environments.
Related products
Resolution/Aspect Ratio & Environment
The ViPAC range is available in a wide range of aspect ratios and resolutions to support the needs of new 16:9 and historic 4:3 applications. From 15”-21.5” screen sizes, with varying different resolutions up to 1920 x 1080, we have something to suit every need. Constructed from die-cast aluminium bezel and sheet metal rear, these expandable, front IP66 rated systems are perfect for industrial environments. The ViPAC range is manufactured to the highest standards, with a focus on reliability and longevity. All systems are supplied with an AC/DC PSU but support 9-36v DC power input if a supply is already present, alternatively there is an AC power option.
I/O & Mounting

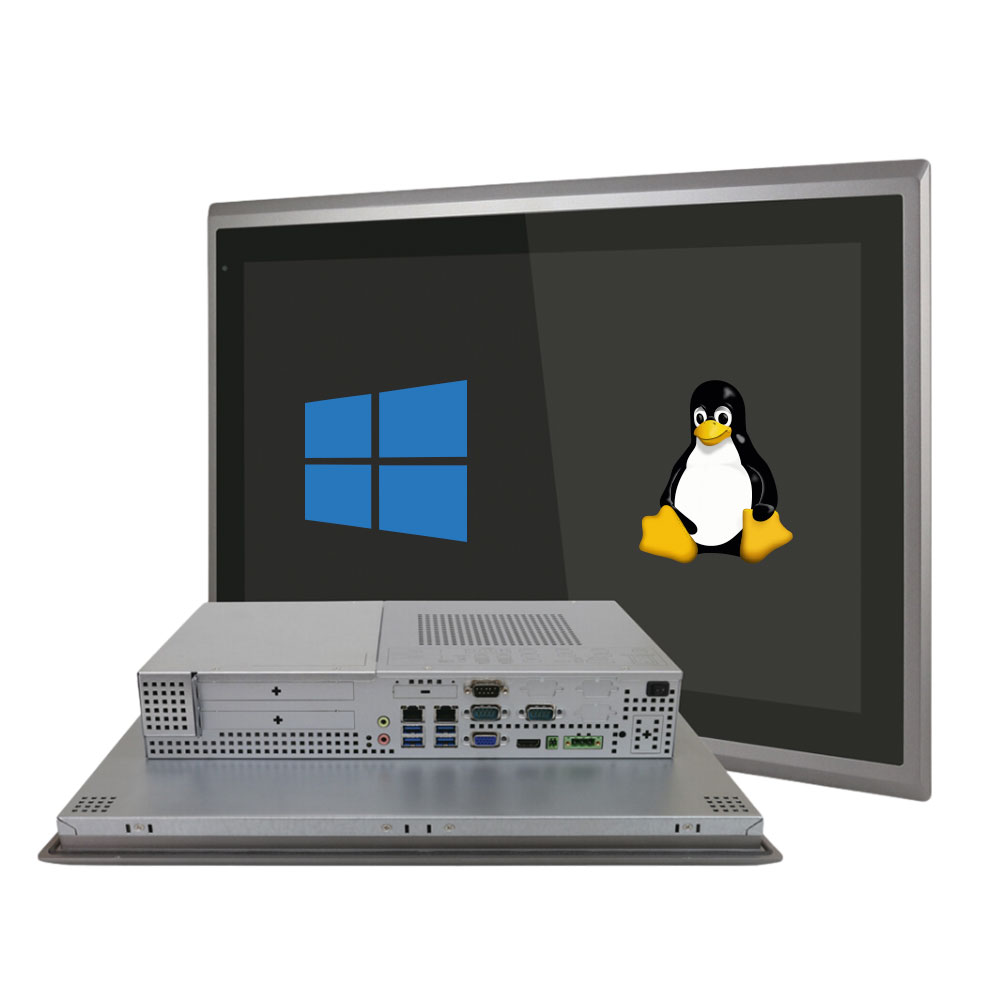

All sizes feature down facing USB, LAN, and serial connections at the back of the unit, as well as a display out port (DP/HDMI) for dual screen support. Located on the I/O panel, there will also be a 2-pin connector to add a power button if required. There are multiple I/O expansion boards available to increase connectivity via the PCIe x1 slot. The ViPAC is a panel mount compatible system allowing for seamless integration in any environment. Supplied with mounting lugs for easy panel mount installation, and a rubber gasket to ensure the IP66 rating is retained.
Processor
There are a range of processor options available to meet the demand of the application. These are all Intel based CPUs ranging from a Quad Core Celeron, to a 6th Gen Core i7. Due to heat generation, the Core i3/i5/i7 options have an active fan.
