ViTAM-112/P

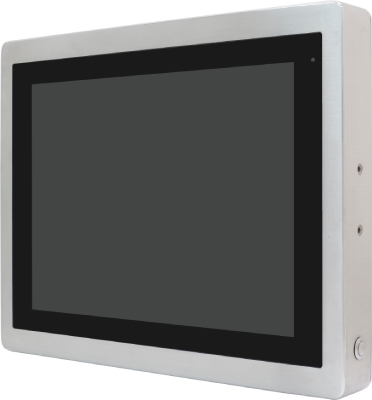

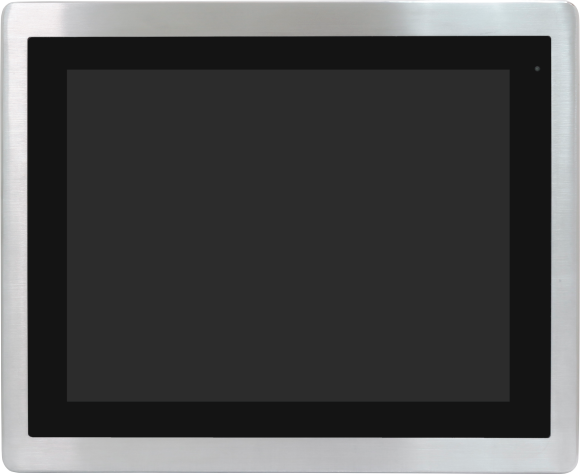

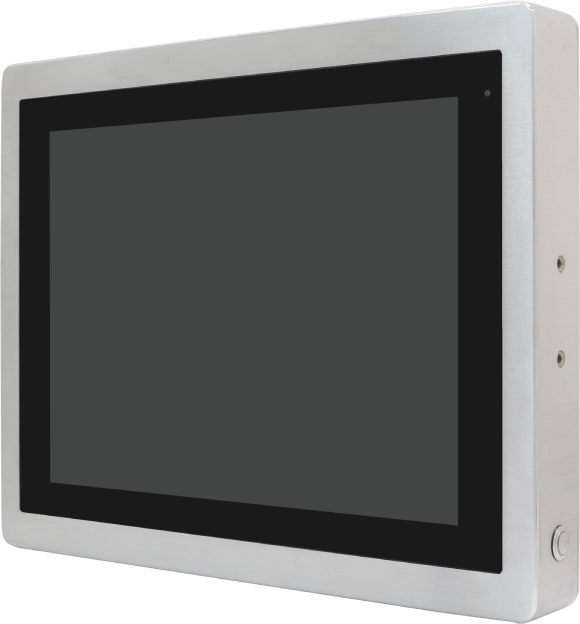

These 12.1″ fully-enclosed, stainless-steel, IP66/IP69K rated industrial displays enable high pressure steam jet cleaning. With vandal-proof 7H hardened glass, perfect for the food and beverage industry.

Categories: Fully IP rated Industrial Displays, Industrial, Industrial Display

Quick Spec

Display Size	12.1"
IP Rating	Fully IP66/IP69K
Touchscreen	Projected Capacitive, Resistive, No Touch Hardened Glass
Mounting Type	Panel/VESA

Datasheet

ViTAM-112PRGH_V1.1.pdf

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
[email protected]

12.1” Industrial Compact Size Industrial Display
Stainless-Steel Bezel
Fully Enclosed Touch Screen with Fanless Design
DC 9~36V Wide-Ranging Power Input
Fully IP66/IP69K Compliant Panel

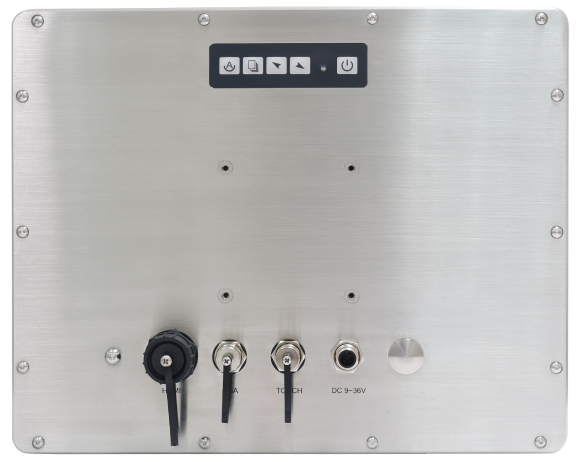

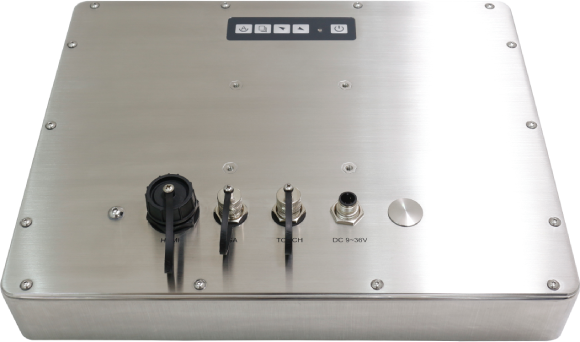

External I/O

VGA	1 x M12 12-pin for VGA with waterproof cover and chain
HDMI	1 x M12 HDMI with waterproof cover and chain
OSD Control Membrane	OSD on the rear side
Power	1 x M12 3-pin for DC power with waterproof cover and chain
Optional	1 x 2W IP65 Speaker
Display	based on standard display, high brightness option see datasheet
Display Type	12.1″” TFT-LCD
Max. Resolution	800 x 600(1024 x 768 option)

Touch Screen

Type	Projected Capacitive/Resistive/Glass
Interface	USB
Light Transmission (%)	Resistive: 80% PCAP: 90%

Power

Power Input

DC 9~36V

Mechanical

Construction	304 Stainless steel chassis (default) 316 Stainless steel chassis (optional)
Mounting	VESA Mount 75 x 75, YOKE mount option
IP Rating	Fully IP66/IP69K
Net Weight	4.6kg

Environmental

Operating Temperature	0~50°C/-20~60°C option
Certificate	CE/FCC Class A
