- 17” Industrial Compact Size Industrial Display
- Stainless-Steel Bezel
- Fully Enclosed Touch Screen with Fanless Design
- DC 9~36V Wide-Ranging Power Input
- Fully IP66/IP69K Compliant Panel
Fully IP rated Industrial Displays, Industrial, Industrial Display
ViTAM-117PRGH_V1.1.pdf
ViTAM-117/P

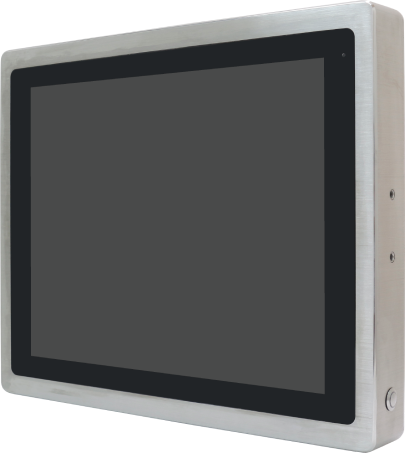

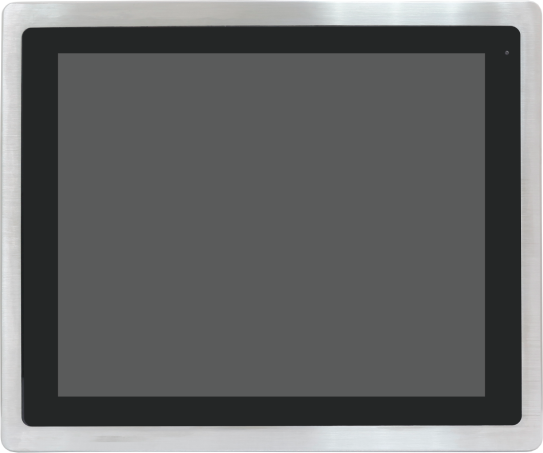

These 17″ fully-enclosed, stainless-steel, IP66/IP69K rated industrial displays enable high pressure steam jet cleaning. With vandal-proof 7H hardened glass, perfect for the food and beverage industry.
Quick Spec
| Display Size | 17" |
|---|---|
| IP Rating | Fully IP66/IP69K |
| Touchscreen | Projected Capacitive, Resistive, No Touch Hardened Glass |
| Mounting Type | Panel/VESA |
Datasheet
ViTAM-117PRGH_V1.1.pdf
External I/O
| VGA | 1 x M12 12-pin for VGA with waterproof cover and chain |
| HDMI | 1 x M12 HDMI with waterproof cover and chain |
| OSD Control Membrane | OSD on the rear side |
| Power | 1 x M12 3-pin for DC power with waterproof cover and chain |
| Optional | 1 x 2W IP65 Speaker |
| Display | based on standard display, high brightness option see datasheet |
| Display Type | 17″” TFT-LCD |
| Max. Resolution | 1280 x 1024 |
Touch Screen
| Type | Projected Capacitive/Resistive/Glass |
| Interface | USB |
| Light Transmission (%) | Resistive: 80% PCAP: 90% |
Power
| Power Input | DC 9~36V |

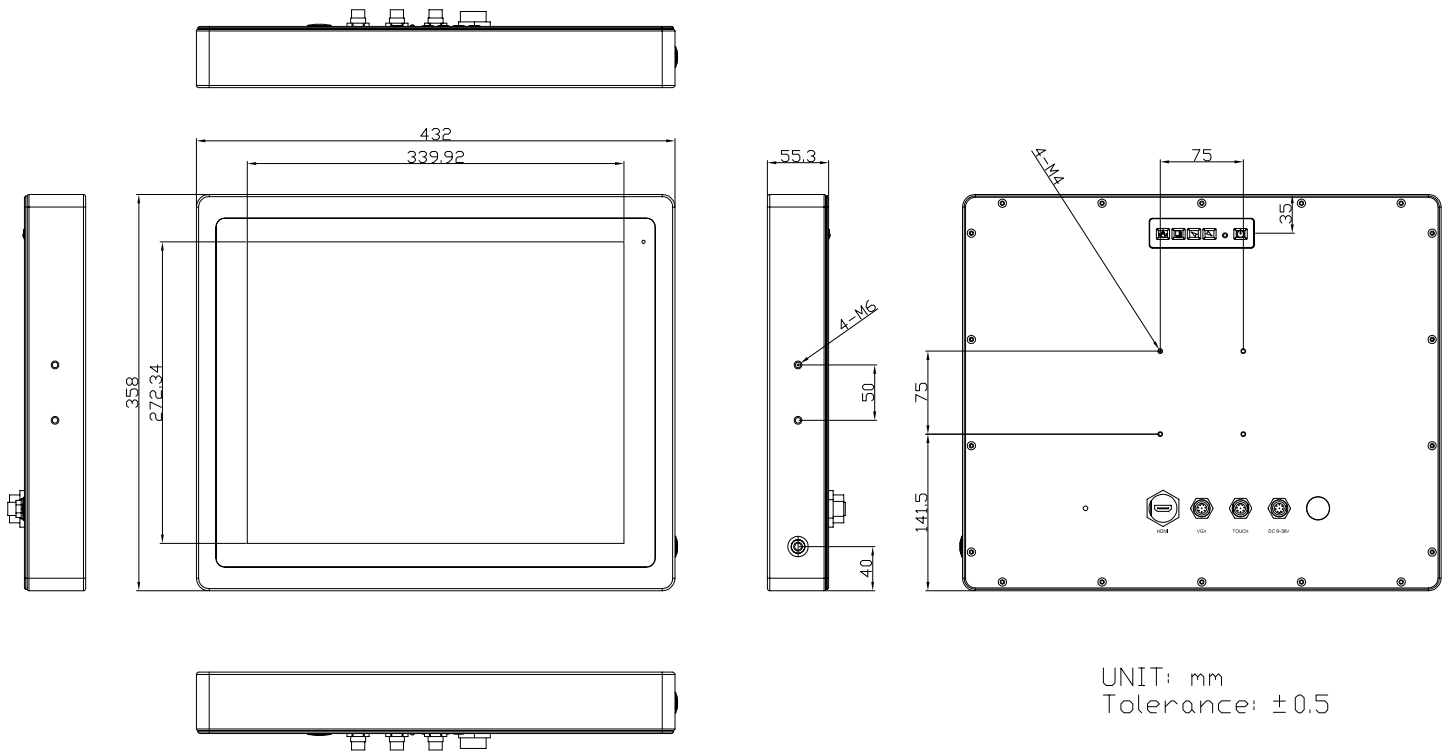

Mechanical
| Construction | 304 Stainless steel chassis (default) 316 Stainless steel chassis (optional) |
| Mounting | VESA Mount 75 x 75, YOKE mount option |
| IP Rating | Fully IP66/IP69K |
| Net Weight | 7.5kg |
Environmental
| Operating Temperature | 0~50°C/-20~60°C option |
| Certificate | CE/FCC Class A |
