Fully IP rated Panel PCs, Industrial, Panel PCs

ViTAM-810/P

These 10.1″ fully-enclosed, stainless-steel, IP66/IP69K rated panel PCs enable high pressure steam jet cleaning. Employing the Intel Celeron N2930 CPU, with vandal-proof 7H hardened glass, these are perfect for the food and beverage industry.

Quick Spec

Display Size	10.1"
Processor	Intel Celeron N2930
RAM	4GB – 8GB
IP Rating	Fully IP66/IP69K
Touchscreen	Projected Capacitive, Resistive
OS Support	Windows 10 Pro/IoT, Linux, Ubuntu
Mounting Type	VESA/YOKE

Datasheet

ViTAM-810PRGH_V1.4.pdf

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
[email protected]

10.1” Industrial Compact Size Panel PC
Stainless-Steel Bezel
Fully Enclosed Touch Screen with Fanless Design
DC 9~36V Wide-Ranging Power Input
Intel Celeron N2930 CPU built-in
Up to 8GB RAM
Fully IP66/IP69K Compliant Panel

System

CPU	Onboard Intel Celeron N2930 Processor
Memory	Onboard 4GB DDR3L SDRAM up to 8GB option

I/O Port

USB	1 x M12 8-pin for USB 2.0 with waterproof cover and chain
Serial/Parallel	1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain
LAN	1 x M12 8-pin for LAN with waterproof cover and chain
Power Connector	1 x M12 3-pin for DC power with waterproof cover and chain 1 x Power switch on the side
Option	2 x optional blank M12 connector with waterproof cover and chain for selecting two from the following options: 2 x USB 2.0 1 x USB 3.0 1 x LAN (POE for option) 1 x COM 1 x CAN

Storage

HDD	1 x 2.5″ SATA3 HDD

Expansion

Expansion slot	1 x miniPCIe slot for WIFI/BT(optional), 4G/LTE(optional)
RFID Module	RFID module design on the front side(optional)
Display	based on standard display, high brightness option see datasheet
Display Type	10.1″ TFT-LCD
Max. Resolution	1280 x 800

Touch Screen

Type	Projected Capacitive / Resistive / Glass
Light Transmission (%)	Resistive 80% PCAP over 90%

Power

Power Input

DC 9~36V

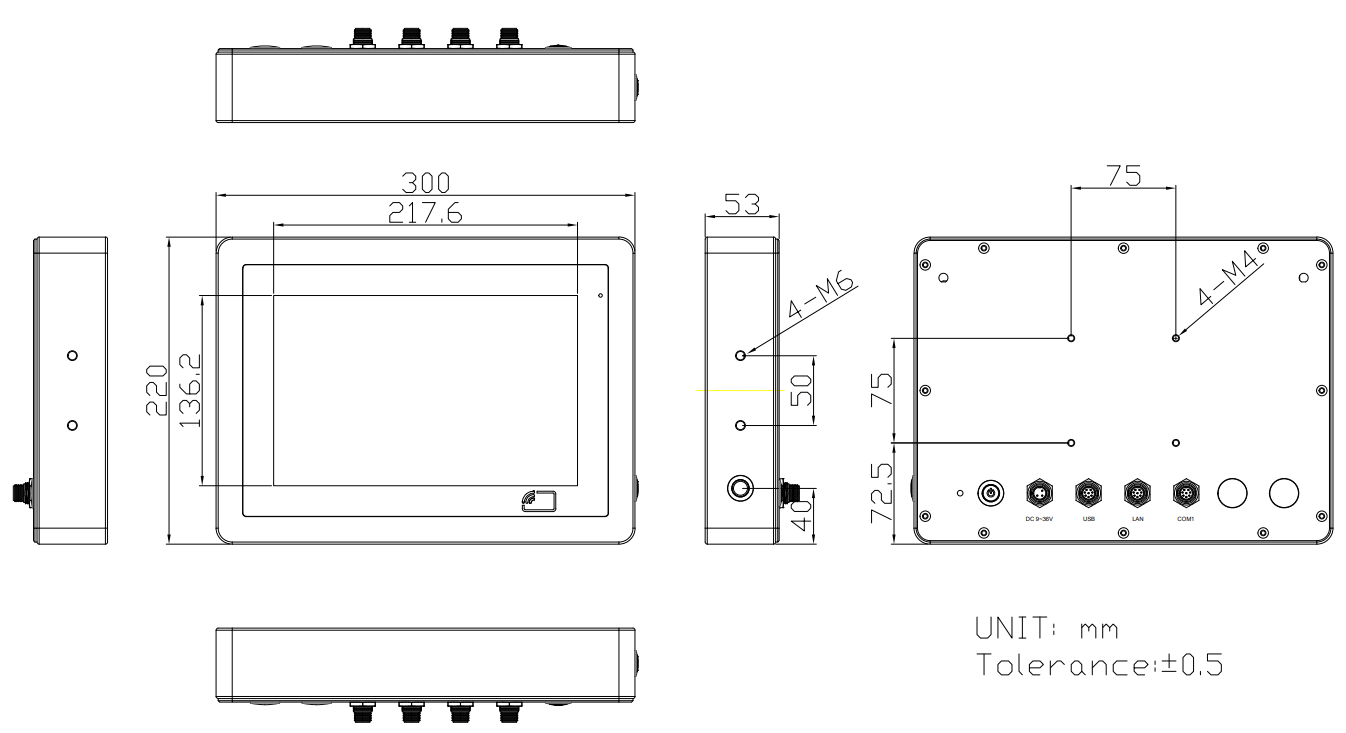

Mechanical

Construction	304 Stainless steel chassis(default), 316 Stainless steel chassis(optional)
Mounting	VESA Mount 75 x 75, YOKE mount option
IP Rating	Front Panel IP66/IP69K
Net Weight	3.9kg

Environmental

Operating Temperature	0~50°C
Certificate	CE/FCC Class A
Operating System Support	Windows 10 Pro/IoT, Linux, Ubuntu

ViTAM-810PRGH_V1.4.pdf
